Metal Bending Machine 12 Axis KCT-1220WZ 2.0mm Spring Making Machine for Snap Bracelet Springs

Metal Bending Machine 12 Axis KCT-1220WZ 2.0mm Spring Making Machine for Snap Bracelet Springs

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
KCT-1220WZ
Warranty
1-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Model No
KCT-1220WZ
Axes Count
12 Axes
Power AC
3~380V50Hz
Wire Size Range
0.3-2.0mm
Max Feeding Speed
280m/Min
Feed Roller Group
2-3 Groups
Max Feeding Length
Unlimited
Dimension(L*W*H)
1600*1160*1750mm
Weight
1500KG
Application
Spring Making
Total Power
14.0kw
Trade Term
FOB/EXW/FCR/CIF
Lead Time
7-35 working days
Feed Servo Motor
2.9KW
Quill Servo Motor
1.0KW
Transport Package
Wooden Case & Vacuum Packed
Specification
ISO 9001: 2008, SGS, CE
Trademark
KCMCO
Origin
China
HS Code
8463300000
Production Capacity
200 Sets/Year

Product Description

TOP 3 Spring Machine Manufacturing Vendor in China KCT-1220WZ (0.3-2.0mm)
Camless CNC Versatile Spring Rotating Forming Machine
KCT-1220WZ 12Axis Camless CNC Versatile Spring Rotating Forming Mahine, is composed by Taiwan computer system and Japan Yaskawa servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight

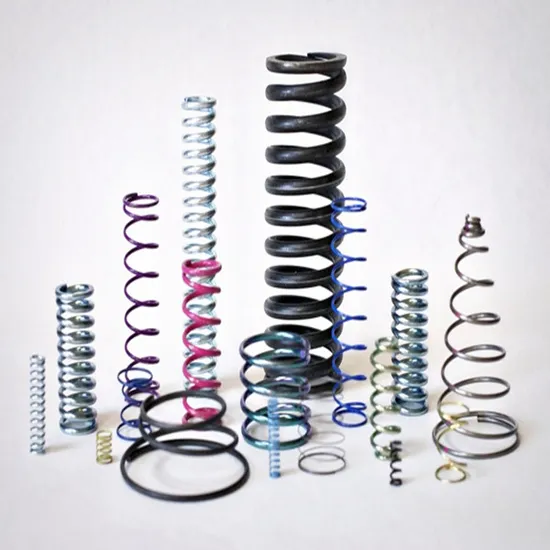

servo motor,feeding aixs,quill rotating axis,wire rotating axis and spinner axis. It composed of crank connecting system and feeding and rotating system,coiling straightening system and quill system, It can install the device of hydrulic pressure scissors,low noise; the damage is zero on madrel and machine, It is suitable for making kinds of tension spring,torsion spring,compression spring, scroll spring,tower spring,flat wire spring and such highly difficult springs, Largely increased and the spring making range, It is precise,stable and easy to operate.
The crank connecting link system included eight knife rest,eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer,no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire ratoting system synchronous through CNC program, at the same time,the feeding accuracy can reach within 0.1mm during wire rotation. Detailed Photos

Related Products

Packaging & Shipping
Company Profile
Our Advantages
1. The factory has about 20 years experience in this field(Spring machines), and the Founder Mr Liu has about 40 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in our company.
5. Over 150 skilled worker, 48 technicians and one group of 20 engineers.
6. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia, Turkey)
Africa (South Africa, Egypt, Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
North America( The USA)
7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
Give your project to us, we "KCMCO" are going to do the best profession to you. After Sales Service
Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if requested, but cost out of China for technicians will be born by customer, or customers can send their own technicians to the supplier's factory for free traning
FAQ

Q1: How to place the order?
A1: You can place the order by email us or reach us directly with your contact information.
Q2: What is the MOQ?
A2: One set. The more you have, the better price you will get.
Q3: What is the payment term?
A3: The payment term is 30% deposit as PO confirmation, and 70% before the shipment.We also accept other payment term.
Q4: What is the delivery time?
A4: Normally the delivery time of the machine is 30-40 working days after receiving deposit.But it all depends on machine models you place the order. Some of them could be shipped within 7 working days if we have that machine available in our warehouse.
Q5: What is the guarantee period of the machine?
A5: The guarantee period is one year for the core components like motor from the date of B/L.
