Basic Info.
Type
Cylindrical Grinding Machine
Controlling Mode
Manual Cylindrical Grinder
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001
Distance Between Centers
1500mm
Dia. Ground(O. D)
8-320mm
Grinding Length(O. D)
1500mm
Transport Package
Wooden Box
Production Capacity
400sets/Year
Product Description
One-stop Shopping
Please click on the picture to view the product category you are interested in
Conventional Lathe | CNC Lathe
| CNC Machining Center
| CNC Milling Machine
|
Grinding Machine | Milling Machine
| Special Use Lathe | Boring Machine
|
Product Description

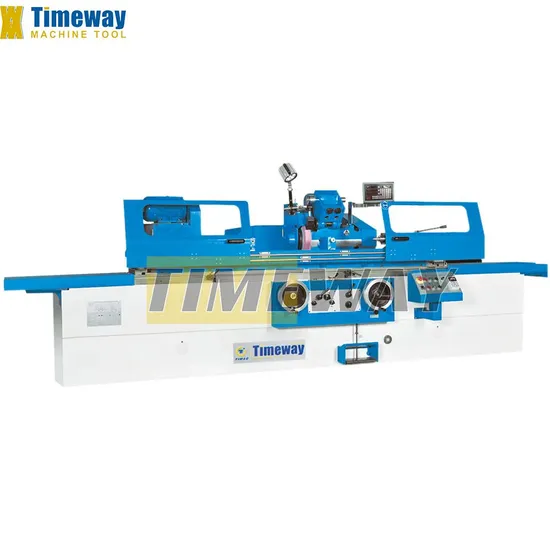

cylindrical grinding machine
G-series cylindrical grinder is suitable for grinding outer cylindrical and conical surface; UG-series universal cylindrical grinder is suitable
for grinding outer and inner cylindrical and conical surface.
For UG-series, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or
outer conical surface.
For UG-series, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
SPECIFICATION | UNIT | G-320 | UG-320 | G-320A | UG320A | UG-400 |
Distance between centers | mm | 1000/1500 | 1000/1500 | 2000/3000 | 2000/3000 | 1000/1500 |
Center height | mm | 180 | 180 | 180 | 180 | 220 |
Dia. ground(O. D) | mm | 8-320 | 8-320 | 8-320 | 8-320 | 15-400 |
Dia. ground(I. D) | mm | - | 30-100 | - | 30-100 | 16-125 |
Grinding length(O. D) | mm | 1000/1500 | 1000/1500 | 2000/3000 | 2000/3000 | 1000/1500 |
Grinding length(I. D) | mm | - | 125 | - | 125 | 125 |
Loading capacity | kg | 150 | 150 | 500 | 500 | 150 |
Workhead swivel angle | ° | - | ±90° | - | ±90° | ±90° |
Workhead spindle taper | - | MT5 | MT4 | MT5 | MT5 | MT4 |
Workhead spindle speed | rpm | 19-190(stepless) | 26-260(stepless) | 10-100(stepless) | 26-260(stepless) | 18,37,74,155 |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 | 2/0.5 | 2/0.5 | 2/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.01/0.0025 | 0.01/0.0025 | 0.01/0.0025 | 0.01/0.0025 | 0.01/0.0025 |
Extermal grinding wheel size | mm | 600x75x305 | 400x50x203 | 600x75x305 | 500X50X203 | 500x50x203 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 | 35 | 35 | 35 |
Internal grinding spindle speed | rpm | - | 10000 | - | 10000 | 10000/2000 |
Internal grinding wheel size | mm | - | 50x25x13 | - | 50x25x13 | 80x32x20 |
Table feed of handwheel per rev. | mm | 6 | 6 | 6 | 6 | 6 |
Table swivel angle(CW) | ° | 3°/3° | 3°/3° | 3°/3° | 3°/3° | 3°/3° |
Table swivel angle(CCW) | ° | 7°/6° | 7°/6° | 5°/3° | 5°/3° | 7°/6° |
Table longitudinal feed speed | m/min | 0.1-4 | 0.1-4 | 0.1-3 | 0.1-3 | 0.1-3 |
Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 | MT4 |
Tailstock quill travel | mm | 30 | 30 | 30 | 30 | 30 |
External grinding motor power | kw | 11 | 5.5 | 11 | 7.5 | 5.5 |
Internal grinding motor power | kw | - | 1.1 | - | 1.1 | 1.1 |
Workhead motor power | kw | 1.5 | 1.5 | 3 | 1.5 | 1.5 |
Roundness | um | 2.5 | 2.5 | 3 | 3 | 2.5 |
Cylindricity | um | 8 | 8 | 8 | 8 | 8 |
Roughness | um | Ra0.2 | Ra0.2 | Ra0.32 | Ra0.2 | Ra0.2 |
Gross weight | kg | 4600/5100 | 4600/5100 | 6200/7600 | 6200/7600 | 4800/5500 |
Packing size(LxWxH) | cm | 326/426x190x205 | 326/426x190x205 | 580/780x190x205 | 580/780x190x205 | 353/447x200x205 |
Features:
The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
The wheel dresser can be mounted on the tailstock.
MAIN CONFIGURATION & ACCESSORIES:Measuring bridge plate, Open steady rest, Wheel flange, Wheel extractor, Balancing arbor, Grinding wheel, Coolant tank, Carbide tripped center, Driving dog, Wheel dresser (Without diamond pen), Work lamp, Internal grinding attachment (UG), 3-jaw chuck (UG), Extension shaft (UG), Internal grinding wheel (UG), Full set tools, Leveling wedge, Operation manual (English edition).
| OPTIONAL CONFIGURATION & ACCESSORIES: Balancing stand, Digital readout, Close steady rest, End wheel dresser, Radius wheel dresser, Center grinding attachment (G), Magnetic separator, Paper filter.
|
