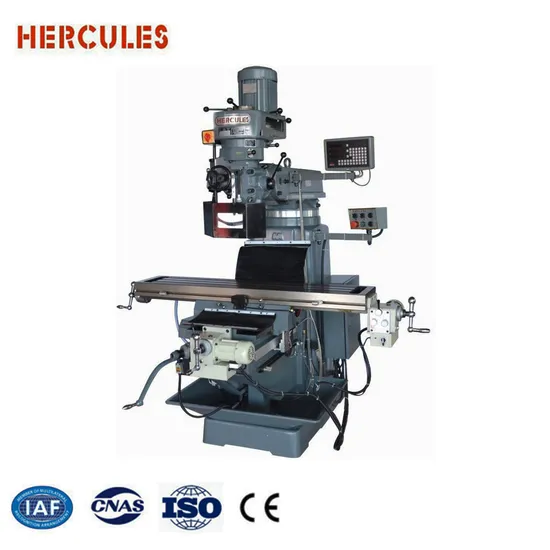

M4VA/B Precise tolerances DRO-equipped Vertical turret Milling machine for metal work

M4VA/B Precise tolerances DRO-equipped Vertical turret Milling machine for metal work

US$3,300.00-7,500.00 1 Set (MOQ)

Basic Info.

Model NO.
M4VA/M4VB milling machine
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001, UL
Condition
New
Spindle taper
ISO30/ISO40
Transport Package
Pallet
Specification
1750*1650*2150mm
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000sets/Year

Product Description

M4VA/M4VB Vertical turret Milling machine for metal work
Product Parameters
Model# M4VA/M4VB precision high accuracy series
Table size(L*W) 1270x254mm
Max.load of table 300kg
X axis travel 900mm or 810mm with power feed
Y axis travel 380mm
Z axis travel 360mm
Work table T slot(No.-size*pitch) 3-15.88x65mm
Distance between spindle and table 50-410mm

Ram travel 520mm
Travel of spindle quill 127mm
Spindle speed(rpm) 80-5440rpm 16steps (60Hz)
Spindle hole taper: R8/NT30 (optional)
Main motor: 3HP
Tilt angle for milling head: left and right +/- 45 degree
forward and backward +/-45 degree
Guiding tracks: X/Z dovetail way and Y square way for M4VA
X dovetail way and Y/Z square way for M4VB

Dimension(L*W*H): 1750*1650*2150mm
Milling head: Round step milling head
Weight: 1250kg for M4VA and 1300kg for M4VB
Optional milling head : Round step milling head
Square head with side brake milling head
Variable stepless milling head

Our Advantages
M4V Vertical Milling Machine
Conventional classic type, widely used in auto motor parts processing, and our machine's advantages as following,

Accuracy :
X axis for whole travel (900mm) within 0.03mm , for each 300mm within 0.01mm
Y axis for whole travel (254mm) within 0.01mm
Spindle nose :0.003mm

DB testing for head
Noise DB is less than 60DB at 1100RPM and 64DB at 2700 RPM

Materials :
HT250 high precision Meehanite casting
Spindle , lead screw and spindle hub , motor hub and gear are imported from Taiwan , P5 class high accuracy spindle bearings
Hardening : Working table is hardened and hardness is over HRC50 all slide ways with heat treatment and with Turcite B.

All of this makes sure that our machine are with high accuracy and stable performance during operation .

Packaging & Shipping
Wood Pallet Package for Full Container Loading
Plywood Case Package for Less Than One Container Loading
