NANYANG MJ329/4DE-G(F) Saw Machine Portable Sawmill Automatic Carriage Factory 1500mm Max Sawing Diameter Vertical Fully Automatic Band Saw Machine Log Carriage

Product Description

NANYANG MJ329/4DE-G(F) Saw Machine Portable Sawmill Automatic Carriage Factory 1500mm Max Sawing Diameter Vertical Fully Automatic Band Saw Machine Log Carriage
Product Description

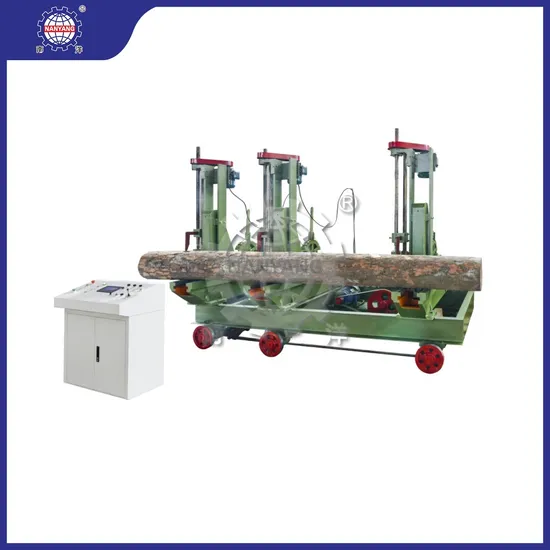

Automatic Carriage For Band Saw
The Band Saw Automatic Carriage is one of the main equipment of wood processing machinery. It uses a band saw blade to cut wood in a straight line. Its main structural components are: machine base, fuselage, upper and lower saw wheels, saw card, and saw blade tensioner.
This product has a reasonable structure, reliable performance, smooth operation, and simple operation. It is especially suitable for collective operations and individual processing. It is an ideal woodworking machine for the wood processing industry and wood product manufacturing industry.
Product Parameters
Technical Parameters

Item	MJ329/4DE-GF (With automatic rolling device)	MJ329/4DE-G	MJ329/4DE3-G
Max. sawing diameter	1500mm	1500mm	1500mm
Max, sawing length	7000mm(Customizable)	7000mm(Customizable)	4000mm(Customizable)
Max. Forward speed	66m/min	66m/min	66m/min
Max. BackWard speed	92m/min	92m/min	92m/min
Footage speed	17mm/s	17mm/s	17mm/s
Effective stroke of timber-blocking pile	1400mm	1400mm	1400mm
Quantity of timber blocking pile	4Nos.	4Nos.	3Nos.
Traction mode	Wire rope	Wire rope	Wire rope
Power of hydraulic system in rolling	5.5kW
Working pressure of the hydraulic system in feeding	7Mpa
Hydraulic oil label of hydraulic sister	46#
Track length	21000mm(Customizable)	21000mm(Customizable)	15000mm
Total motor power	24.2kW	17.6kW	16.5kW
Dimensions	5800x2600x2600mm	5800x2000x2600mm	3500x2000x2600mm
Weight	9000kgs	8000kgs	7000kgs

It consists of shafts, wheels, and supports. It needs to run on two parallel rails during movement and is equipped with a ruler for measuring when processing wood. Some are equipped with lasers for more accurate measurements.
When woodworking is processing wood, manpower can be used to carry the wood, but when the wood is relatively heavy, it can be used instead of manpower, which has a strong load-bearing capacity.
Product Function:
1. Automatic forward and backward; Electric hook
2. PLC control system; Touch screen display
3. Frequency control
4. Automatic concede
5. Optional: Automatic rotating device, Automatic feeding device, Automatic conveyor line
Automation Control Panel
Easy to operate
The console is usually well-designed with a clear layout of operating buttons and control panels, allowing the operator to easily master the use of the equipment.
Easy to adjust
The adjustment buttons and levers on the console are relatively simple and intuitive to operate, and can easily adjust the cutting angle, cutting depth, and other parameters.
Good view
The design of the console allows the operator to observe the cutting process more clearly, which is beneficial for improving work accuracy and safety.
Efficient and high-speed
It can quickly complete wood-cutting operations and improve production efficiency.
High cutting accuracy
The equipment has high cutting accuracy and can ensure the flatness and accuracy of wood cutting.
Safe and reliable
The equipment has safety protection measures, such as overload protection, automatic shutdown when power is off, etc. to ensure the safety of operators.
Compact structure
The equipment occupies a small area and is suitable for wood processing operations in limited spaces.
Easy to operate
The equipment is equipped with an automated control system and is easy to operate. The operator only needs to set parameters to complete the cutting operation.
Energy saving and environmental protection
Compared with traditional circular saws, it is more energy-saving, reduces energy consumption, and meets environmental protection requirements.
