Sludge Dredge Sand Tailing Industrial Trash Discharge Mud Gravel Mining Slurry Pump

Product Description

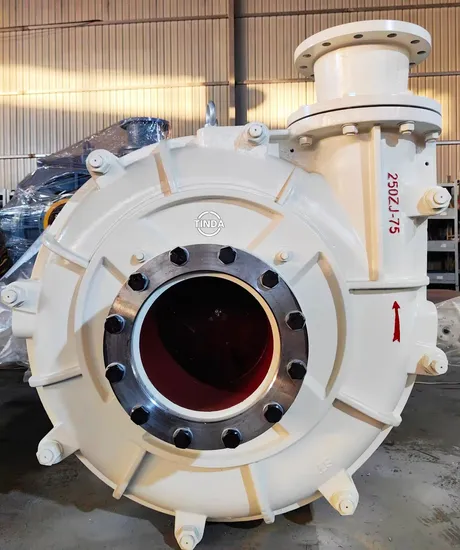

Heavy-Duty Slurry Pump
Model: ZJ
Power: 7.5-800kw
Size: 40mm to 400 mm
Max Capacity: 3741 m3/h
Max Head: 114m
1.Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
ZJ series slurry pump is a single-stage, horizontal centrifugal pump. It is a new type of anti-wear and corrosion-resistant slurry pump developed by our company for the complexity and particularity of its application conditions. It has the characteristics of high efficiency, energy saving, small vibration, low noise, reliable operation, long service life and convenient maintenance. It is the representative of the new generation of slurry pump. It is mainly used to transport abrasive slurry containing solid particles, such as feeding pumps in mines, transportation of various concentrates and tailings, slag removal in power plants, slag removal in steel mills, coal slime transportation in coal preparation plants, heavy media, etc. The weight concentration of slurry can reach 45% of mortar and 60% of ore pulp.
For detailed technical parameters and prices, please contact us for consultation!
Main material:
Cr27,Cr28,CD4MCu, etc.
Material advantage:
High chromium alloy, more wear-resistant!
We have foundry workshop, processing workshop and assembly workshop. All the costs you pay will be invested in better metal materials. The materials are not falsely labeled and the quality is better, which can really save you money. Real factory! Certified Quality Assurance!
Main Parts:
IMPELLER,LINER,STUFFING BOX,EXPELLER SEAL, VOLUTE,CASING,BEARING ASSEMBLY,PUMP BASE, etc.
Advantage:
1. Excellent hydraulic performance, high efficiency, low wear, spacious flow channel, anti-clogging, excellent cavitation performance;
2. There are three types of auxiliary impeller + packing combined seal, mechanical seal and single packing seal, which are suitable for different working conditions;
3. The large-capacity mailbox is lubricated in a thin oil bath, and the service life of the bearing is greatly extended.
Better materials plus precise processing,everything for higher quality! ------ Specifications and Performance ------

Type	Allowable max power	Capacity	Head	Speed	Efficiency	NPSH	Allowable Particle
	KW	m3/h	m	r/min	η	m	om
300ZJ-I-A110	560	746-1700	33.1-78. 0	400-590	71	5	49
300ZJ-I-A100	450	619-1826	37.2-67. 1	400-590	81	4. 1	49
300ZJ-I-A95	400	589-1735	24. 6-60.6	400-590	81	4. 1	49
300ZJ-I-A90	560	632-1844	33.4-78. 0	500-730	82	4.8	45
300ZJ-I-A85	450	596-1742	29.9-69.9	500-730	82	4. 8	45
300ZJ-I-A70	630	647-2333	16.7-76.8	500-980	80. 4	6	51
300ZJ-I-A65	500	601-2166	14,4-66.2	500- 980	80.4	6	51
300ZJ-I-A56	250	403-1568	10.0-48.0	500- 980	81.3	5.5	54
250ZJ-I-A96	560	504-1470	39.9-91.0	500-730	79	5.3	38
250ZJ-I-A90	450	473-1378	35.5-80.0	500-730	79	5.3	38
250ZJ-I-A85	800	384-1504	31.4-129.8	500- 980	77	5.1	42
250ZJ-I-A83	710	375-1468	30.0-123.8	500- 980	77	5.1	42
250ZJ-I-A80	630	361-1415	27. 8-115.0	500- 980	77	5	42
250ZJ-I-A78	630	352-1380	25.4-108.4	500- 980	77	5	42
250ZJ-I-A75	500	301-1480	20.8-97.5	500- 980	77	4.9	40
250ZJ-I-A73	500	293-1441	19.7-92.4	500- 980	81.6	4.9	40
250ZJ-I-A70	450	288-1380	18.1-84.9	500-980	81.6	4.8	40
250ZJ-I-A68	355	280-1341	17-78	500- 980	81.6	4.8	40
250ZJ-I-A65	315	305-1249	15-70	500- 980	79.5	4.7	40
250ZJ-I-A63	315	295-1211	14-65	500- 980	79.5	4.7	40
250ZJ-I-A60	250	281-1152	13-60	500-980	79.5	4.7	40
200ZJ-I-A75	355	230- 900	22.8- 102.9	500- 980	74.5	4.5	31
200ZJ-I-A73	355	223-876	21.6-97.5	500- 980	74.5	4.5	31
200ZJ-I-A70	315	240- 950	19.4- 86.4	500-980	77.5	4.4	31
200ZJ-I-A68	280	233- 923	18.3-81.5	500-980	77.5	4.4	31
200ZJ-I-A65	250	240- 950	16.4-72	500-980	79.3	4.3	35
200ZJ-I-A63	250	233-921	15.4-67.6	500-980	79.3	4.3	35
200ZJ-I-A60	200	223-870	13.9-62	500-980	81.4	4.1	35
200ZJ-I-A58	185	215-841	13-57.9	500- 980	81.4	4.1	35
150ZJ-I-A65	200	154- 600	18.9-78. 5	500- 980	75	3.9	27
150ZJ-I-A63	185	149- 582	17.7-73.7	500-980	75	3.9	27
150ZJ-I-A60	160	137-550	15.4-64.5	500- 980	77.5	3.8	27
150ZJ-I-A58	132	132-532	14.4-60.3	500- 980	77.5	3.8	27
150ZJ-I-A55	110	126-504	12. 9-54.2	500- 980	74.5	3.8	27
150ZJ-I-A50	75	117-460	9.9-45.5	500- 980	78	3.2	27
150ZJ-I-A48	75	112-442	9.1-41.9	500- 980	78	3.2	27
150ZJ-I-C42	132	142- 550	12.1-64	700-1480	75	4.5	35
100ZJ-I-A50	l 60	86- 360	20. 2-101.6	700-1480	71.3	4.1	19
100ZJ-I-A46	132	79-331	17.1-86	700-1480	71.3	4.1	19
100ZJ-I-A42	90	68-275	14. 6-71	700-1480	71	3.9	20
100ZJ-I-A39	75	63- 255	12.6-61.2	700-1480	71	3.9	20
I00ZJ-I-A36	45	61-245	9.1-48.6	700-1480	76	3.6	20
I00ZJ-I-A33	37	57-225	7.7-40.8	700-1480	76	3.6	20
80ZJ-I-A42	75	61-260	13. 3-70.6	700-1480	67.8	3.5	13
80ZJ-T-A39	75	56-241	11.4-60.9	700-1480	67.8	3.5	13
80ZJ-I-A36	45	45-190	10-51.5	700-1480	70.8	3	13
80ZJ-I-A33	37	41-174	8.4-43	700-1480	70.8	3	13
65ZJ-I-A30	15	23-80	7. 4-35.8	700-1480	63.5	3	11
65ZJ-I-A27	11	20-72	7.0-33.6	700-1480	63.5	3	11
40ZJ-I-A17	4	5.0-20	6.0-29	1 390- 2890	53	2.5	10
150ZJ-A35	37	119-364	4.4-17.8	590- 980	68. 1
100ZJ-A32	45	130- 385	10.7-29	970-1480	68
80ZJL-36	45	69-201	14-45.5	970-1480	58.2
50ZJL-20	4	12-39	2.6-10.2	940-1440	41

Looking for other pumps? Click below to view
Application and ReferenceSeries
Tinda slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.
Typical Applications
1. Coal washing plants
2. Mining
3. Oil and gas
4. Sand and gravel plants
5. Dredging for mineral sands
6. Ash handling facilities attached to power stations
