Factory Supply Industrial Integrated Fiber Small Laser Marking Machine Laser Logo Mini Printing Machine for Metal

Factory Supply Industrial Integrated Fiber Small Laser Marking Machine Laser Logo Mini Printing Machine for Metal

US$1,550.00-3,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
HF20XX-B
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Net Weight
40kg
Gross Weight
50kg
Laser Source
30W/50W/60W/100W (Optional)
Laser
Raycus/Jpt/Max/Hnd
Galvanometer
Sino Galvo
Voltage
220V
Frequency
50/60Hz
Transport Package
Wooden Box
Specification
1060*620*330mm
Trademark
HND LASER
Origin
China
HS Code
8456110090
Production Capacity
30000/Y

Packaging & Delivery

Package Size
110.00cm * 62.00cm * 33.00cm
Package Gross Weight
60.000kg

Product Description

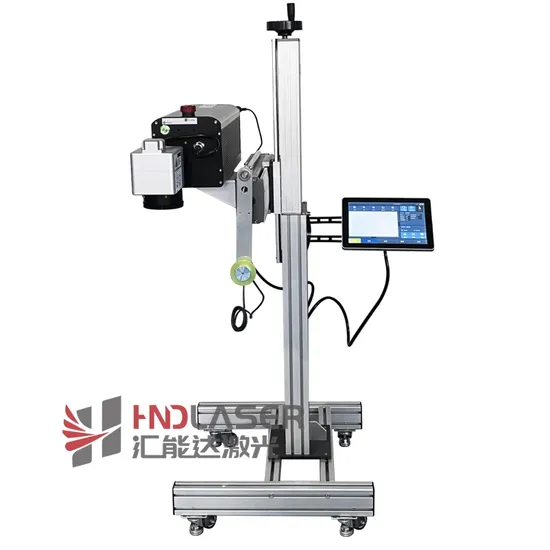

Flying Fiber Laser Marking Coding Printing Machine
(Can be customized to your needs)
Fiber laser marking machine is suitable for static and flying marking, different control systems and models can be selected to mark metal/non-metal
Laser marking machine

Developed a highly integrated laser device that significantly enhances laser compression and combines the laser source, control card, laser power supply, cooling fan, and galvanometer into a single unit. This innovation substantially reduces both the overall weight and size of the device.

Powerful fiber laser date code printers are ideal for serial part marking. They are utilized in nearly all metal and plastic processing industries for direct marking on products and parts, covering a wide range of applications. Fiber lasers reliably and accurately mark various codes (QR, DMC/Data Matrix, barcodes), alphanumeric characters, logos, and text
All these test the supplier's design and manufacturing level. Only suppliers with strong technical strength and rich experience can provide reliable flying laser marking solutions.
2. Better Performance than Standard Model
DIY Computer Configuration:
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.
High Performance Computing Requirements:
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.
NO. Project Parameter
1 Model number HF20XX-B
2 Laser power 30W/50W/100W (optional)
3 Laser level Class IV (IEC 60825-1)
4 Laser type Pulse Fiber laser
5 Wavelength 1064nm
6 Marking field 110*110mm-300*300mm (optional)
7 Marking depth ≤0.01mm
8 Marking speed ≤10000mm/s(optional)
9 Marking line width 0.01-0.2mm
10 Min character size 0.015mm
11 Repeat accuracy 0.01mm
12 Cooling method Air-cooled
13 Laser source expected life >100,000 hours
14 Standard user interface PC/Laptop
15 Consumables No
16 Temperature 0-45ºC
17 Power consumption 700 W
18 Electrical requirement L/N/PE 100 - 240 VAC, 50/60 Hz

3. Wide Range of Applications
Offices and Studios:
Compact yet powerful, our laser marking station is specifically tailored for offices and studios. Seamlessly handle diverse small-batch and custom marking tasks with unmatched ease and efficiency.

Startups and Innovations
The ideal partner for startups and innovation hubs, maximizing space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping with ease.

Research and Teaching:
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses in academic settings with unparalleled reliability.

Outdoor Work:
With mobile power solutions, our station is perfect for in-field tasks from pickup trucks, vans, and more. It efficiently satisfies outdoor and on-site marking requirements, ensuring flexibility and reliability.
Materials Reaction Materials Reaction
Metal Stainless steel √√ Plastic PE
Aluminum √√ PP -
Anodized aluminum √√ PVC √√
Brass √√ PPR
Coated metal √√ ABS
Copper PET -
Gold, silver, nickel, platinum Nylon
Carbon steel √√ MPP -
Titanium √√ PC -
Ceramics Ceramic Electrical and medical ceramic

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: - APPLICATION
Advantages & Accessories
Related Type
Advantage
Non-consumable
Say goodbye to consumable replacement costs
Operates solely on electricity
A robust one-time investment
Maintenance-free operation
Eco-friendly and sustainable
Innovative ink-free technology
A solvent-free process
Enjoy an odorless operation
Non-toxic and safe to use
Non-corrosive materials
Energy-efficient systems
Minimally wasteful in operation
Ensures 100% resource utilization
Produces zero emissions
Delivers permanent and resilient markings
Precision-controlled indentation depth
Resistant to oxidation effects
No color degradation over time
Enhances traceability and tracking
Assured safety and reliability
OPTIONAL ACCESSORIES
FOCUS AREAS

EXHIBITIONS AND FAIRS
PLANTS AND TEAMS
CERTIFICATION DISPLAY
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.


COMPANY INFORMATION
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD
HNDLASER HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLASER Established in Zhangjiagang, we excel in seamlessly integrating research, development, production, and application of cutting-edge laser equipment. Our investment portfolio is robust, featuring Zhangjiagang HND Intelligent Equipment Co. and numerous other eminent enterprises.
Thanks to steady increases in annual R&D investments, our innovations have achieved notable market acclaim, ensuring a robust and stable production input across the entire laser industrial chain. HNDLASER is dedicated to a people-first, innovation-driven philosophy. We prioritize both technological advancement and talent cultivation, which fortifies our growing market presence and the respected reputation of our products.

FAQ
Q1: What is the warranty period like?
A1: During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
Q2: What payment terms do you accept?
A2: We accept a variety of payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Q3: Do you provide CE documents and other clearance documents?
A3: Certainly, we supply the original documents. Following shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for an effortless customs clearance process.
Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?
A4: We offer a comprehensive user manual, enriched with illustrations and a USB disk for step-by-step learning. Furthermore, any machine updates will be provided monthly for your continued convenience.
Q5:How can I obtain a sample to verify the results?
A5: You are welcome to send us a sample, which we will test for you at no charge..
Q6: When will I receive a quote?
A6: Our expert team will respond to your inquiry within an impressive 12-hour window.
