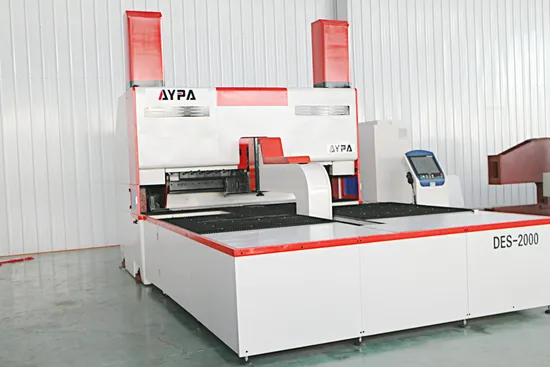

Aypa Auto Cutting-Folding-Bending Machine

Aypa Auto Cutting-Folding-Bending Machine

US$45,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
DES-2000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Driven Mode
Full Electro Servo
Bending Length
2000mm
Bending Height
170-300mm
Min. Bending Thickness
0.15 mm
Max Bending Thickness
2.5 mm
Loading Material
Fully Automatic by Robot Arm
Customization Level
Full
ODM
Available
Bending Angle
0-360°
Bending Material
All Metal Sheet
Feeding Method
Optional: Pressed or Sucked
CNC System
Taiwan Syntec
Servo Motor
Synmot
Gear Reducer
German-Rouist
Guide
German-Rouist
Transport Package
Wooden Case, Foam and Plastic Film
Specification
5100* 2700* 2800mm
Trademark
AYPA
Origin
China
HS Code
8462240000
Production Capacity
300sets/Year

Product Description

Aypa Automatic Cutting-Folding-Bending Machine
Product Description
AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display

Detailed Photos
* Q235 steel plate
* High temperature annealing process
* 42CrMo forging material
* Customized knives available

Product Parameters
Model DES-1200 DES-1400 DES-2000 DES-2500 DES-3000
Max. Continuous Bending Speed ≤0.2sec/each bending ≤0.2sec/each bending ≤0.3sec/each bending ≤0.5sec/each bending ≤0.6sec/each bending
Max. Bending Length 1000mm 1400mm 2000mm 2500mm 3200mm
Max. Bending Height 170/210mm 170/300 mm 170/300 mm 170/300 mm 170/210 mm
Max. Bending Thickness stainless steel 1.0mm 1.2mm 1.2mm 1.2mm 1.2mm
Carbon steel 1.2mm 2.0mm 2.0mm 2.0mm 2.0mm
aluminum 1.5mm 2.5mm 2.5mm 2.5mm 2.5mm
Min. Bending Thickness 0.15mm 0.15mm 0.15mm 0.15mm 0.15mm
Bending Degree 0-360° 0-360° 0-360° 0-360° 0-360°
Accuracy of Bending Angle ±1° ±1° ±1° ±1° ±1°
Accuracy of Feeding Length ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
Feeding Method Sucked/ Pressed Sucked/ Pressed Pressed Pressed Pressed
Feeding Table Brush+ Universal ball Brush+ Universal ball Brush+ Universal ball Brush+ Universal ball Brush+ Universal ball
Min. One-step Forming Size on All Four Sides 200*280mm 200*280mm 200*280mm 200*280mm 200*280mm
Min. One-step Forming Size on Single Side 150mm 150mm 150mm 150mm 150mm
Noise Level ≈40db ≈40db ≈40db ≈40db ≈40db
Main Power 380V 380V 380V 380V 380V
Outline Dimension (mm) 3100* 1500* 2800 4500* 2000* 2800 5100* 2700* 2800 5700* 3100* 2800 7000* 3800* 2800
Approx. Weight (Tons) 10 11 18 19 21

Packaging & Shipping

Company Profile

FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
