Low Price Customized Reciprocating Motion Vibro Sieve Shaker Gyratory Screen for Sugar

Low Price Customized Reciprocating Motion Vibro Sieve Shaker Gyratory Screen for Sugar

US$24,560.00-47,777.00 1 Set (MOQ)

Basic Info.

Model NO.
PXZS
Type
Awag Screen
Object
Fertilizer
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Hanging
Centrifuge Type
Horizontal Spiral Centrifuge
Pressure
Low Pressure
Condition
New
Usage
Screening
Product Type
Fertilizer
Transport Package
as Customers′ Requirements
Specification
ISO9001: 2000/ CE
Trademark
YUANBEN
Origin
Henan, China(Mainland)
HS Code
8474100000
Production Capacity
200 Sets Per Year

Product Description

About Us
Henan Yuanben Intelligent Technology Co., Ltd. (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery Co., Ltd. which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base.
''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.
Get a price at once!
Product Description

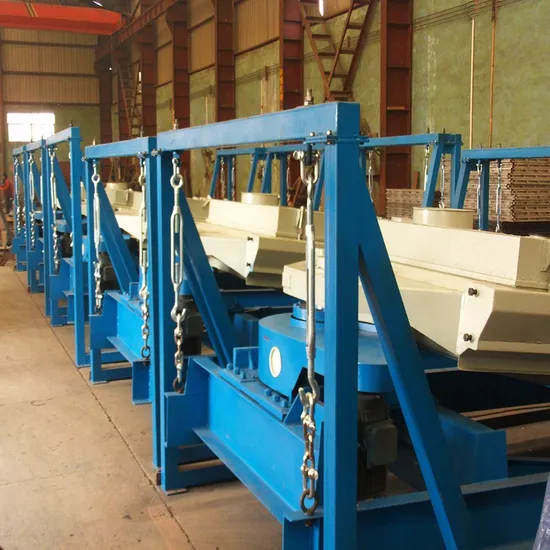

China cereals rotex gyratory screen
Introduction
Gyratory screen is designed to provide precise and accurate sieving of material, it adopts eccentric mechanism which drives the material on the screen surface do uniform gyratory reciprocating swing motion,the materials are spread and stratified on the full screen surface, then the gyratory reciprocating motion gradually changes to an elliptical motion at the centre which is good for material sieving,a straight-line motion at the discharge end,the material movement track becomes short and then materials flow out of the outlet.Gyratory screener is widely used in chemical,fertilizer,metallurgical,ceramsite,refractory materials,grain, food, abrasives, mining and other industries in the sizing process of material accurate screening.
Advantages and Features
1.Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.
2.Screen long service life- No vertical component avoid the impact and damage of material to screen.
3.Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
4.Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
5.Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement.
6.Customized order- multi- layer,different capacity and mesh size can be customized according to customer's demand.
7.Quick Screen Changes-Quick release device is provided to take down the net rack and replace the screen rapidly.
8.Various sieving solution- Gyratory screen allows separations with openings from 12mm to 325mm.
Get a price at once!
Product Parameters
Technical Parameterschina cereals rotex gyratory screen
Model Screen Surface Layer No. Feeding Size Amplitude (mm) Frequency (r/min) Power (kW)
width length
PXZS1224 1200mm 2400mm 1-4 <50mm 75-90 1450 5.5
PXZS1230 1200mm 3000mm 1-4 <50mm 75-90 1450 5.5
PXZS1236 1200mm 3600mm 1-4 <50mm 75-90 1450 5.5
PXZS1524 1500mm 2400mm 1-4 <50mm 75-90 1450 5.5
PXZS1530 1500mm 3000mm 1-4 <50mm 75-90 1450 5.5
PXZS1536 1500mm 3600mm 1-4 <50mm 75-90 1450 5.5
PXZS1830 1800mm 3000mm 1-4 <75mm 75-90 750 7.5
PXZS1836 1800mm 3600mm 1-4 <75mm 75-90 750 7.5
PXZS1840 1800mm 4000mm 1-4 <75mm 75-90 750 7.5
PXZS2036 2000mm 3600mm 1-4 <75mm 75-90 750 7.5
PXZS2040 2000mm 4000mm 1-4 <75mm 75-90 750 11
PXZS2050 2000mm 5000mm 1-4 <75mm 75-90 750 11

Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions
♦Material to be processed: _____ ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total ♦Layer number: ______
material capacity feeding from the inlet): _____t/h ♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3 ♦Particle distribution percentage:____________
♦Material temperature: _____ºC; (please check the following example to help you
♦water content:____% understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No) and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No) then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____ X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ºC We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of 1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____ 2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of 3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____ ♦Working power supply: _____V ______HZ

We mainly provide the following equipments
Vibrating Screen Rotary vibrating screen
Ultrasonic vibrating screen
Gyratory screen
Trommel screen
Linear vibrating screen
Circular vibrating screen
Dewatering screen
Vibrating feeder
Belt Conveyor Belt conveyor
Sidewall belt conveyor
Portable belt conveyor
Shuttle conveyor
Tripper
Bucket Elevator Efficient bucket elevator
Belt bucket elevator
Ring chain bucket elevator
Plate chain bucket elevator
Cement bucket elevator
Silo bucket elevator
Screw Conveyor U-type screw conveyor
Cement screw conveyor
Pipe screw conveyor
Scraper Conveyor Horizontal scraper chain conveyor
Incline scraper chain conveyor
Grain scraper chain conveyor

Get a price at once!
