CNC Automatic Tool Changer Woodworking Linear Atc Machine Wood Router Engraving Cabinet Making Machine
| US$11,900.00-19,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-49DAP
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Spindle
9kw / 12kw / Italy or China
Controller
Taiwan Syntec Controller/ Taiwan Lnc
Rail
Taiwan Linear Rail
Rack
Helical Rack
Table
PVC Table
Motor
Servo Motor
Inverter
11kw / 15kw Inverter
Pump
5.5kw/ 7.5kw Air Cooling
Dust Collector
3kw with Double Bags
Transport Package
Plywood Box
Specification
heavy duty type machine
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
500 Sets/ Year
Product Description
Machining Centre with Automatic Loading and Unloading SystemHighly automated nesting solution with automatic loading and unloading system.
The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.
World's first class components. Truly versatile--nesting, routering, vertical drilling and engraving all in one. It is well-suited for panel furniture, office furniture, cabinets production.
Main technical parameters
| Type | DLM-49DP Nesting Solution With Automatic Loading and Unloading | ||
| Composition | Automatic loading lift, Material feeding system, Dust absorption structure, Accurate positioning structure, Smart cutting machining centre, Unloading belt machine, High efficiency vacuum pump, PC version control cabinet | ||
| Working area | 1250X2500X250(mm) | ||
| Travelling speed | 70 m/min(MAX) | ||
| Cutting speed | 20 m/min(MAX) | ||
| Spindle parameters | HSD air cooling 9.5KW 24000rpm | ||
| Controller OS | Custom SYNTEC system with PC | ||
| Driving system | XY:850W Yaskawa servo Z:850W Yaskawa brake servo | ||
| Working Voltage | AC380V/3PH/50HZ | ||
| Electrical accessories | Taiwan Delta VFD / Low voltage electrical components / high quality cable | ||
| Driving parts | High precision pinion/Taiwan PMI rail/Taiwan PMI ball screw | ||
| Table Structure | Double layers of multi-point high efficient vacuum absorbable countertop | ||
| Size | 9000*2000*2200(mm) | ||
| Cooling system | Electronically controlled cooling | ||
| Lubrication system | Automatic lubrication system | ||
| Tool setting gauge | Precision tool setting gauge | ||
| Accessories | 1 | 7.5KW Vacuum pump | 1 set |
| 2 | 7.5KW double canister dust collector | 1 set | |
| 3 | Tool box(including tools) | 1 set | |
| 4 | ER32 spring collet 1/2 | 4 pcs | |
| 5 | Cutting tool | 4 pcs | |
| 6 | Table vacuum plug | 120 pcs | |
| 7 | High quality φ10 sponge rubber seal | 10m | |
| 8 | Documents | 1 copy | |

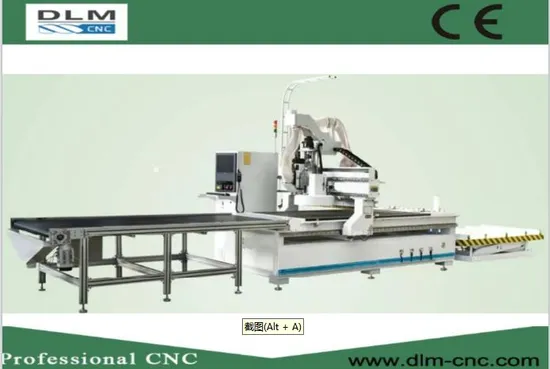

Machine Photos
Package methods you can choose as follows:
1. Plywood box
2. Steel panel package
