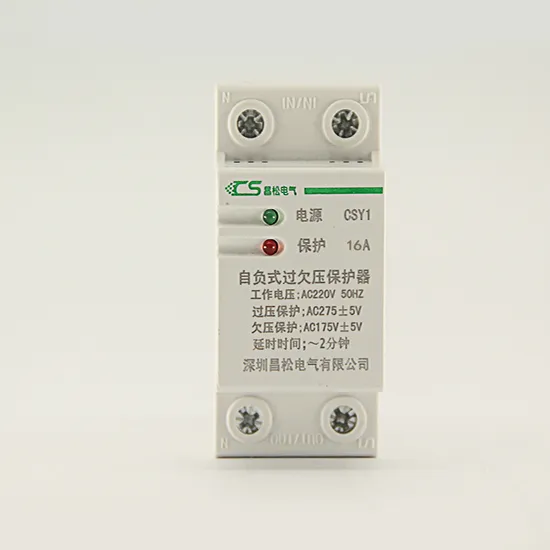

High Quality Automatic AC Voltage Protector with LED Display
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS-Y125
Frequency Characteristics
Low Frequency
Usage
SVC, DBW, JIW
Frequency
Low Frequency
Size
Small
Iron Core Shape
C
Power Source
Switching Regulated Power Supply
Application Range
Scientific Research Department
Transport Package
Standard Export Packing
Specification
86
Trademark
Changsong
Origin
Zhejiang, China
HS Code
8536500000
Production Capacity
50000PCS/Year
Product Description
Features♦ Small size but high switching capacity
♦ Built-in high performance MCU provides precise voltage protection
♦ Energy-saving,driven by instantaneous impulse coil
♦ Cost-effective,improved circuit design consumes very low power
♦ Flame retardant casing provides good fire,heat and weather resistance
Technical Data
♦ Model No.:DGZGQ-63
♦ Rated operating voltage:200-252V
♦ Rated current:16A, 20A,25A,32A,40A,50A,63A
♦ Overvoltage cut-off value: AC270V±5%
♦ Overvoltage recovery value: AC255V±5%
♦ Undervoltage cut-off value: AC170V±5%
♦ Undervoltage recovery value: AC175V±5%
♦ Power transmission delay time:40S
♦ Tripping delay time:2S
♦ Power consumption:< 2W
♦ Mechanical likfe: 10000times
♦ Wiring:under 50MM² copper conductor, bolt compressed,torque is 2.5Nm
