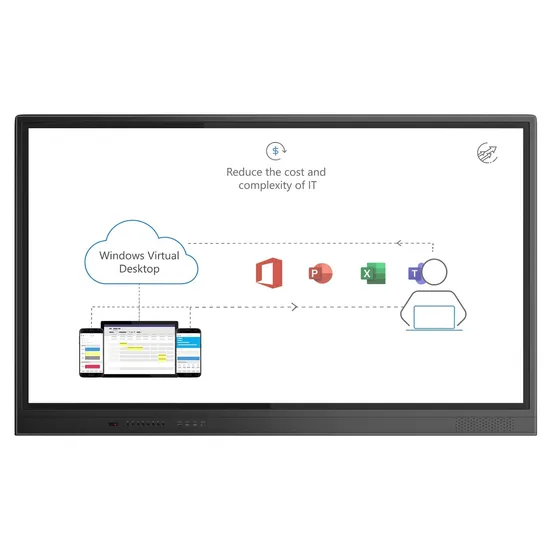

55 65 86 Inch Smart Multi-Touch Screen Tablet, Interactive Whiteboard, Smart Conference Tablet and Teaching All-in-One Machine

Product Description

55 65 86 Inch Smart Multi-Touch Screen Tablet, Interactive Whiteboard, Smart Conference Tablet and Teaching All-in-One Machine
Function Eight in one
Intelligent interactive teaching all-in-one machine, integrated with the projector, screen, electronic whiteboard, TV, computer, tablet, set-top box, learning machine, audio nine equipment functions in one;
Full Channel Intelligent Interaction
Full-channel touch switch, touch menu, touch volume adjustment, touch brightness adjustment.
Signal intelligent recognition function
When the all-in-one signal is external, the signal is automatically recognized and automatically enters the corresponding channel for display. Reduce the trouble of manual switching of signal sources, and achieve more intelligent interaction.
Use a plugged-in Intel-80pin platform OPS host
Standard Intel-80pin Slot with support for universal market standard 80pin OPS computers. Maintenance and upgrading of OPS computers are even more convenient.
Internal attached infrared touch pen
The touch pen is embedded magnetic, which can directly absorb the corresponding position of the ∟ of the left and right front frame, making it more convenient to take and put.
Touch the menu bar
Support the serial port menu bar, and select the ECO energy-saving interest screen;
One Key Lock OPS Computer Touch Function
The serial port menu supports the on or off of the Windows touch function (which does not affect the gesture pull-up menu function) to prevent accidental touch during the lecture break.
One-Click start
Two-in-one button, one-click to turn off the all-in-one machine and OPS computer functions, (energy saving, environmental protection, improve service life)
Appearance design
1.37CM ultra-narrow edge design, four-angle arc humanized safety consideration design

Display screen parameters
Machine type	LC 55D2	LC 65D2
LCD screen size	55 inches	65 inches
Max. display size	1210 × 680mm	1429 × 804mm
Resolution	1920×1080	1920×1080
Response time	8 ms
Picture ratio	16:9
Refresh frequency	60Hz
Color Degree	1.07B (10bit)
Color scope NTSC (Typ)	72%
Contrast Degree (Typ)	5000:1
Visual angle	178 ° (H/V)
Backlit Type	DLED
Screen brightness (Typ)	220cd/m2	250cd/m2
Life span	≥ 30,000 Hours

Touch Writing system
Identification principle	Infrared identification
Support for the system	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Chrome
Number of Touch Points	The 20-Point Touch
Minimum Identification Items	3mm
Support pen pen supported	Five 3mm pen pen simultaneously
Enter mode	Finger, touch pen and other opaque objects
Response time	≤ 10 ms
Touch accuracy	± 1mm (90%)
Writing height	3.5mm
Communication mode	Full-speed USB
Screface hardness	7H
Output coordinates	32767 (W) × 32767 (D)

Interactive TV parameters
Image format	PAL/SECAM/NTSC (Option)
Sound system	BG /DK /I/L
Decode	3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc
Horn specification	10W /8 Euro × 2 speakers
Audio Features	Balance, automatic volume control, surround sound, equalizer
Input Port	RF-TV Port: *1
	AV port: 1 group [terminals in one] *1
	VGA AUDIO IN Computer Audio Port: *1
	VGA computer port: *1
	HDMI Port: *1
	USB2.0 Port: 1 group *1
Output Port	TOUCH External PC Touch: *1
	EAPRHONE Headphone Port: *1
