Stainless Steel 304 Liquid Cartridge Filter Housing for Honey/Syrup/Paint Filtration

Stainless Steel 304 Liquid Cartridge Filter Housing for Honey/Syrup/Paint Filtration

US$579.00
1-4 Pieces
US$460.00
5+ Pieces

Basic Info.

Model NO.
CS-XF-04Z
Style
Vertical
Performance
Precision Filter
Certification
CE
Product Name
Stainless Steel Cartridge Filter
Application
Industrial Wastewater Treatment
Minimum Precision
0.01um
Housing Material
Stainless Steel 304/316/316L/Carbon Steel
Cartridge Type
PP Pleated Microporous Cartridge
Cartridge Quantity
Customized
Surface Finish
Sandblasting/Polishing
Transport Package
Wooden Box
Specification
90*57*43cm
Origin
China
HS Code
8421299090
Production Capacity
30000unit/Year

Packaging & Delivery

Package Size
70.00cm * 50.00cm * 50.00cm
Package Gross Weight
78.000kg

Product Description


Stainless Steel 304 Liquid Cartridge Filter Housing for Honey/Syrup/Paint Filtration

Design of cartridge filter Housing
Single or Multi-Cartridge: Stainless steel filter housings can accommodate one or more cartridge filters depending on the filtration needs. Multi-cartridge housings are ideal for higher flow rates and larger-scale operations.
Cartridge Type:PP Pleated cartridge/Activated carbon filter cartridge etc.
Vertical or Horizontal Orientation: The housing can be designed to mount vertically or horizontally, depending on space and flow requirements.
Pressure Rating: These housings are designed to withstand high pressures, making them suitable for industrial applications where pressure tolerance is critical.
Inlet/Outlet Connections: Stainless steel cartridge filter housings feature various connection types (e.g., flanged, threaded, or sanitary connections) for ease of installation and compatibility with different systems.
Seals and Gaskets: They typically use rubber or elastomeric seals to ensure a leak-free operation. Materials for seals vary, with options such as Buna-N, EPDM, and others, depending on the fluid being filtered and temperature conditions.
Product Parameters
Model Flow in theory(T/H) The housing diameter(mm) Height (mm) Inlet/Outlet (DN)
CSLX10-1 0.1-0.3 102 500 25-32
CSLX20-1 0.3-0.5 102 750 25-32
CSLX30-1 1.2 102 1000 25-32
CSLX40-1 1.5 102 1250 25-32
CSLX10-3 1.2 160 650 25-40
CSLX20-3 1.5 160 900 25-40
CSLX30-3 3.6 160 1150 25-40
CSLX40-3 4.5 160 1400 25-40
CSLX20-5 2.5 200 900 25-50
CSLX30-5 6 200 1150 25-50
CSLX40-5 7.5 200 1400 25-50
CSLX20-7 3.5 230 900 25-50
CSLX30-7 8.4 230 1150 25-50
CSLX40-7 10.5 230 1400 25-50
CSLX20-9 4.5 300 900 25-50
CSLX30-9 10.8 300 1150 25-50
CSLX40-9 13.5 300 1400 25-50
CSLX20-12 6 300 900 25-50
CSLX30-12 14.4 300 1150 25-50
CSLX40-12 18 300 1400 25-50
CSLX20-15 7.5 350 900 25-65
CSLX30-15 18 350 1150 25-65
CSLX40-15 22.5 350 1400 25-65

Why crowns machinery?
★We provide genuine, cost-effective materials with full inspection support.
★We assist in developing tailored, professional filtering solutions.
★Every product undergoes rigorous quality control before shipment to ensure both quality and quantity.
★Our comprehensive production planning ensures timely and efficient delivery.
★Our responsive after-sales service is available online to address any concerns, ensuring a seamless experience for our customers.
Detailed Photos Different Models

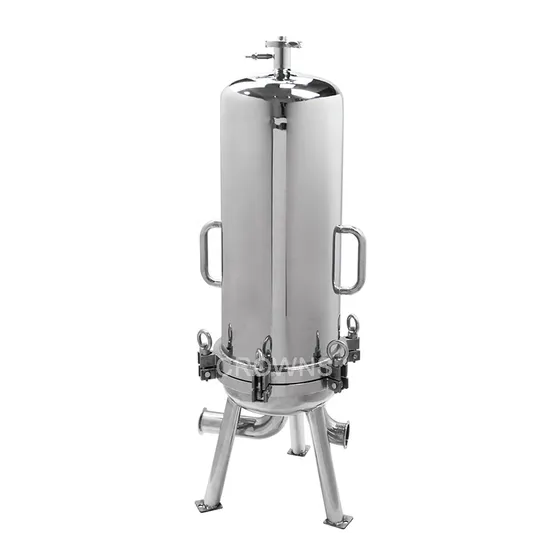

Stainless Steel Single Cartridge Filter
Movable Filter System with Cart and Pump
More Multi Cartridge Filter custom cases Application Cases
Water Treatment: Used in municipal and industrial water filtration systems to remove suspended particles, chlorine, and other impurities.
Chemical Processing: Common in the chemical and pharmaceutical industries, where purity and quality are critical, and contamination must be minimized.
Food and Beverage: Used to filter liquids such as beverages, oils, or syrups, where hygiene and cleanliness are important.
Oil and Gas: Ideal for filtering oil and gas products, where harsh environmental conditions and contaminants need to be removed from liquids or gases.
Pharmaceuticals: In the pharmaceutical industry, these housings are used for high-purity filtration, ensuring that the products are free of particulate matter.
Workshop Display
Company Profile Qingdao Crowns Machinery Co., Ltd. is located in Huangdao District, on the west coast of Qingdao, Shandong Province, China. With over 10 years of expertise in designing and manufacturing a wide range of industrial filtration equipment, we are committed to providing comprehensive, high-quality filtration solutions. Our products have been exported to numerous countries worldwide, serving customers across various industries with reliable, one-stop filtration solution.
FAQ
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for filter equipment ?
A2: Yes, we can provide one-stop filtration solutions to customer according to customer's requirements.
Q3: How about the quality control in your factory?
A3: Production strictly according to CE / ISO standards. All our machines will be tested before packaging.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only the technology but the solution.
Q5: What's your payment terms?
A5: For small orders: 100% T/T in advance. For large orders: 30% T/T deposit 70% T/T balance before shipping.
Q6: What is the delivery time of the product?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the product ?
A7: All products, except for consumables, come with a one-year warranty.
Q8 : Can we use our own design?
A8: Yes, OEM/ODM supporting. Just tell us your requirements.
