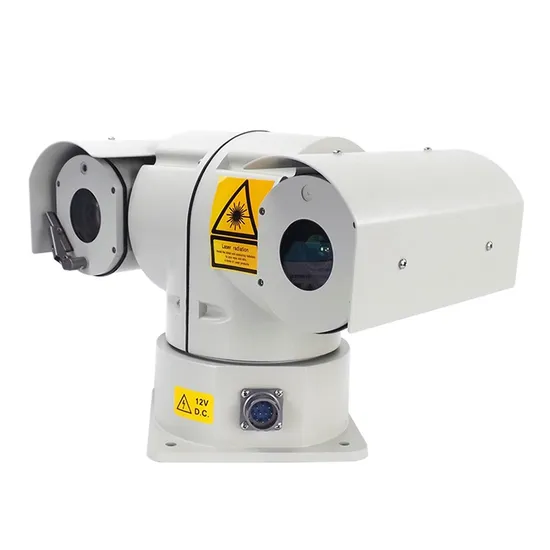

500m Night Vision 33X 2.0MP HD Network Laser PTZ IP Camera
Basic Info.
Model NO.
SHJ-HD-TL
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
>800tvl
Kind
Autofocus Lens
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC
Effective Distance
400m
Sensor Size
1/3 inch
Remote Control
Without Remote Control
Power Supply
DC 12V/AC-24V
Protection Grade
IP 66
Working Temperature
-35-55
Laser Distance
400m
Material
High Die-Cast Aluminum
Packing Measure
45.5*36*25.5
Weight
6kg
Certificate
Ce,RoHS, FCC
Warranty
2 Years
Application
Outdoor or Vehicle
Transport Package
Strong Carton
Specification
CE, ISO
Trademark
OEM, ODM
Origin
China
HS Code
8525801390
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
47.00cm * 37.00cm * 26.00cm
Package Gross Weight
14.000kg
Product Description
33x 2.0MP Camera 300m-500m Night Vision Laser HD IP PTZ CCTV CameraFunctions:
1. PTZintegrates megapixels FULL HDTV Full HD network camera , for applications requiring high resolution, auto focus, excellent color performance and image full frame rate and it can enrich image detail illumination on some poor video surveillance applications, it can be applied for the city, the airport, the financial industry, video conferencing, digital court security monitoring areas with low stream high-definition video images and the overall solution.
2. Performance with HDTV.Support SXGA(1280x1024,30fps)/(1920x1080P/30P)aspect ratio is 5:4 or HDTV 720P/25P+576P/25P,aspect ratio is 16:9 HDTV 720P/30P+480P/30P dual stream format resolution,it can fully output H.264 Main Profile level and M-JPEG video streaming.
3. Integrated with best low stream ,compressed 720P/25P video in the 2Mbps bit video resolution of up to 727 TV lines;It compressed SXGA video in the 3Mbps bit video resolution of up to 800TV lines;It compressed 1920x1080P/30P video in the 4Mbps bit video resolution of up to 1000 TV lines.
Support IE browser
Features:
1. Importing US laser arrays,eliminating laser speckle,improving homogenization spot effect.
2. Laser consumption is 2W,laser beam angle 0.6°-30,it is available for far and near version surveillance.
3. Infra red laser night version range more than 400m
Network Parameter:
| Video compression standard | H.264 Main Profile @ Level 4.1 / Motion JPEG |
| The highest resolution | SXGA(1280x1024,30fps)HD/720p(1280x720,25fps)+Full D1(720x576,25fps) |
| 1920x1080,30fps,1280x1024,30fps,HD/720p(1280x720,30fps)+Full D1(720x480,30fps),720P(H.264)+720P(MJPEG) | |
| PAL/NTSC | |
| Horizontal resolution | >700TVL(1280x720 pixels)/>900TVL(1920x1080 pixels) |
| Audio compression | 16kHz 16bit 32kbps MP2 |
| Audio input and output | External active microphone or line input,line output |
| Supported protocols | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP, SOCKS |
| Application program interface | Support software integrated API,including the SDK and the VMP platform video management center |
| Audio input/output(Optional) | 1 audio input,1 audio output |
| Software control | IE,the client,the management center platform |
| Alarm trigger | Video motion detection,external sensor trigger |
| Alarm input and output | 1 switch input,1 relay output switch |
PTZ Parameter:
| Model | SHJ-HD-TL |
| Pan range | 360°continuously rotation |
| Pan preset speed | 100°/s |
| Tilt preset speed | 80°/s |
| Pan control speed | 0.1°-60°/s |
| Tilt control speed | 0.1°-40°/s |
| Tilt range | 90°~ -90° |
| Preset positions | 128 |
| Temperature and humidity | -35°C-55°C,humidity less than 90% |
| Power supply | AC24V/3A,DC12V/5A |
| IP grade | IP66(Outdoor)TVS 4000V lightning,anti-surge protection |
| Installing ways | Different installing ways accordingly |
| Weight | 6KG |
Mesures and Diagram:(mm)
