US$99,999.00-200,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
180m³/H
Certification
ISO9001: 2000
Type of Outriggers
X Outriggers/Curved Outriggers
Engine Model
Mc11.44 - 60
Theoretical Delivery Capacity
180 M³/H
Transport Package
Container
Specification
Total length: 12300mm Full width: 2540mm Full heig
Production Capacity
180m³ /H
Product Description
Product Description
Basic information

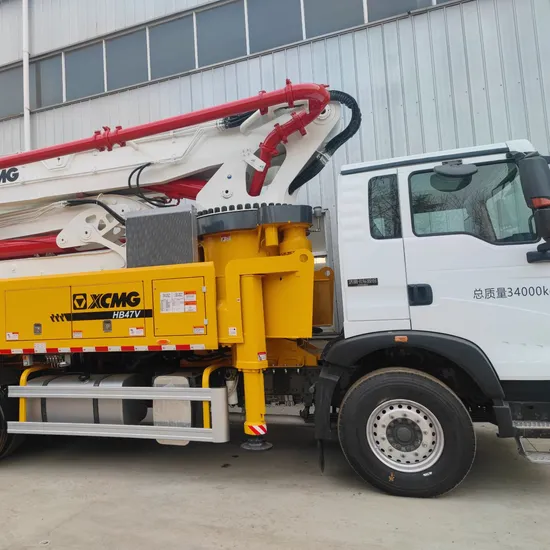

The XG HB47V is a 47-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. It is equipped with advanced technology for high performance and durability. Here's an overview of its features and a reference data sheet.
Parameter Specification
Model | HB47V |
Maximum Vertical Conveying Distance | 47m |
Maximum Horizontal Conveying Distance | 30m |
Distributor Boom Turning Radius | 42.1m |
Theoretical Pumping Times | 25 - 27 r/min |
Pumping Concrete Pressure | 10.2 MPa |
Dimensions (L×W×H) | 12470×2500×3990 mm |
Key Features:
1. Efficient Pump Technology: The HB47V features more efficient skirt valve pump technology and more stable reversing buffer technology, ensuring reliable operation.
2. Powerful and Durable: It adopts a Sinotruk sitrak chassis, compliant with China VI emission standards, offering powerful output, large torque, high efficiency, energy conservation, and strong off-road performance.
3. Advanced Hydraulic System: The pumping system adopts electric control reversing, which is faster and results in less system impact, improving the actual pumping efficiency by more than 5% compared to conventional hydraulic control reversing systems.
4. Safety and Emission Reduction: The HB47V is designed with an ultimately safe boom and a lower structure of high rigidity, ensuring safety and longevity on the job site. It also effectively reduces emissions, contributing to a longer service life.
Detailed Photos
Product Parameters
XG's HB47V pump truck, detailed parameter list
Parameter Specification
Model | HB47V |
Maximum Vertical Conveying Distance | 47m |
Maximum Horizontal Conveying Distance | 30m |
Distributor Boom Turning Radius | 42.1m |
Theoretical Pumping Times | 25 - 27 r/min |
Pumping Concrete Pressure | 10.2 MPa |
Dimensions (L×W×H) | 12470×2500×3990 mm |
Fuel Type | Diesel Oil |
Emission Standard | National III |
Steering Type | Steering Wheel |
Number of Axles | 3 |
Wheel Base | 4500 + 1350 mm |
Tire Specification | 315/80R22.5 |
Wheel Track (Front Wheel/Rear Wheel) | 2034/1804 mm |
Complete Vehicle Kerb Mass | 32870 kg |
Front Axle | 6870 kg |
Middle/Rear Axles | 26000 kg |
Maximum Total Mass | 33000 kg |
Front Axle (Max) | 7000 kg |
Middle/Rear Axles (Max) | 26000 kg |
Seating Capacity of the Cab | 2 Person |
Maximum Speed | 80 km/h |
Minimum Ground Clearance | 300 mm |
Fuel Consumption per Hundred Kilometers | 40 |
Chassis Model | ZZ5357TXFV464MF1 |
Engine Model | MC11.44 - 60 |
Maximum Net Power | 324 kW |
Theoretical Delivery Capacity | 180 m³/h |
Conveying Cylinder Inner Diameter x Stroke | φ260×2000 mm |
Reachable Height of Distribution Boom | 47.1 m |
The Reaching Depth of the Distribution Boom | 30.4 m |
(Data is for reference only) Packaging & Shipping
