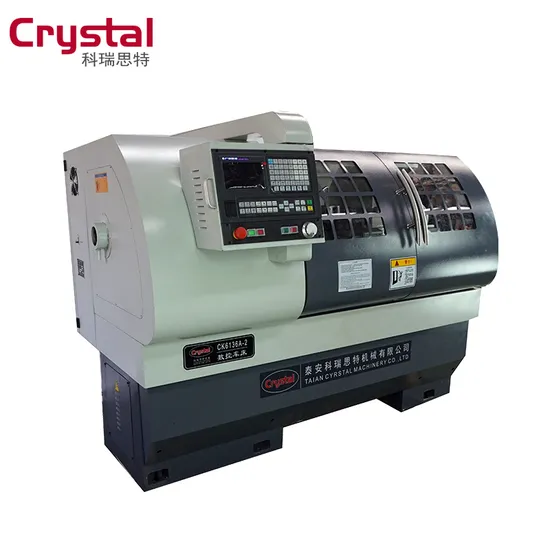

New CNC Machines Tools for Sale Ck6136A-1

New CNC Machines Tools for Sale Ck6136A-1

US$9,800.00
1 Piece
US$9,650.00
2+ Pieces

Basic Info.

Model NO.
CK6136A
Guide Rail
Horizontal Guide Rail
Tool Holder
4/6/8 Positon Tool Turret
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Lathe
Material
Cast Iron Bed
Max. Swim Over Bed
360mm
Max. Swing Over Carriage
190mm
Width of The Bed
330mm
Length of Work Piece
500/750/1000mm
Max. Size of Tool Post
20*20mm
Spindle Speed
150-2500rpm
Spindle Bore
60mm
Chuck Size
200mm
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 PCS/ Mounth

Product Description

new cnc machines tools for sale CK6136A-1
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
Standard Configurations

cnc lathe machine

CK6136A

Max. swim over bed

Φ360mm

Max. swim over carriage

Φ190mm

Max. length of work piece
500/750/1000mm

Width of the machine

330mm

Size of three-jaw chuck

200mm

Range of spindle speed

150-2500rpm

Spindle bore

Φ60mm

Taper of spindle bore

MT4

Stations of tool carrier

4/6/8 station tool turret

Max size of tool post

20x20mm

Min. setting unit of motor

(Z) long 0.001mm,(X) cross 0.001mm

Moving speed of post

(Z) long 8m/min,(X) cross 4m/min

Taper of tailstock quill

MT4

Max. range of tailstock quill

120mm

Motor power

5.5KW

Packing size(length ×width × height)

1850/2120/2370 mm×1400 mm×1700mm

Net weight

1500/1650/1750kg

Standard configuration:
1. System:GSK-928TDL
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
