Factory Cheap Price Tornos Mecanicos Pequenos Center Manual Mini Horizontal Bench Metal Lathe Machine Price Sp2112

Product Description

Product Description
tornos mecanicos pequenos center lathe machine manual
Factory cheap price Tornos Mecanicos Pequenos Center Manual mini horizontal bench metal Lathe Machine price Sp2112
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
Description:
SP2112 lathe we sell is always new condition not used lathe machine, this lathe machine price is reasonable. It is made in China according to quality standard of made in japan lathe machine. Feature / advantage of lathe machine is as below:
Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Strictly following national standards that could meet requirement of worldwide adapted CE and SGS certification. Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Product Parameters

Model	SP2112-I	SP2112-II
Swing over Bed	330 mm	360mm(14")
Swing over Cross Slide	198 mm	212mm(8-1/6")
Swing over Gap	476 mm	491mm(9-1/3")
Distance Between Centers	750 / 1,000 mm	1,000 mm
Spindle Bore	38 or 52mm(Optional)	38mm(1-1/2") or 52mm(2") (Optional)
Headstock Spindle Taper	MT 5	MT 5
Range of Spindle Speeds	35/70 - 2,000 rpm (2 SPEED Motor)	35/70 - 2,000 rpm (2 SPEED Motor)
Range of Metric Longitudinal Feeds	36 Nos. 0.050 - 0.696 mm/rev 32 Nos. 0.052 - 0.392 mm/rev	36 Nos. 0.050 - 0.696 mm/rev 32 Nos. 0.052 - 0.392 mm/rev
Range of Imperial Longitudinal Feeds	36 Nos. 0.0019" - 0.0273" /rev 32 Nos. 0.002" - 0.0154" /rev	36 Nos. 0.0019" - 0.0273" /rev 32 Nos. 0.002" - 0.0154" /rev
Range of Metric Cross Feeds	36 Nos. 0.013 - 0.188 mm/rev 32 Nos. 0.014 - 0.380 mm/rev	36 Nos. 0.013 - 0.188 mm/rev 32 Nos. 0.014 - 0.380 mm/rev
Range of Imperial Cross Feeds	36 Nos. 0.00052" - 0.0074" /rev 32 Nos. 0.00055" - 0.015" /rev	36 Nos. 0.00052" - 0.0074" /rev 32 Nos. 0.00055" - 0.015" /rev
Range of Imperial Threads	36 Nos. 8.0 - 112.0 TPI34 Nos. 4.0 - 56.0 TPI	36 Nos. 8.0 - 112.0 TPI34 Nos. 4.0 - 56.0 TPI
Number of Imperial Threads	36 / 34	36 / 34
Range of Metric Threads	28 Nos. 0.20 - 5.00 mm 26 Nos. 0.4 - 7.00 mm	28 Nos. 0.20 - 5.00 mm 26 Nos. 0.4 - 7.00 mm
Number of Metric Threads	28 / 26	28 / 26
Tailstock Quill Travel	100 mm	100 mm
Tailstock Quill Taper	MT 3	MT 3
Motor Power	1,500W	1,500W
Net Weight	570/640kg	620/690kg
Packing Size (LxWxH)	1,740/1,950 x 750 x 1,510 mm	1,950 x 750 x 1,510 mm
Gross Weight	620/690kg	670/740kg

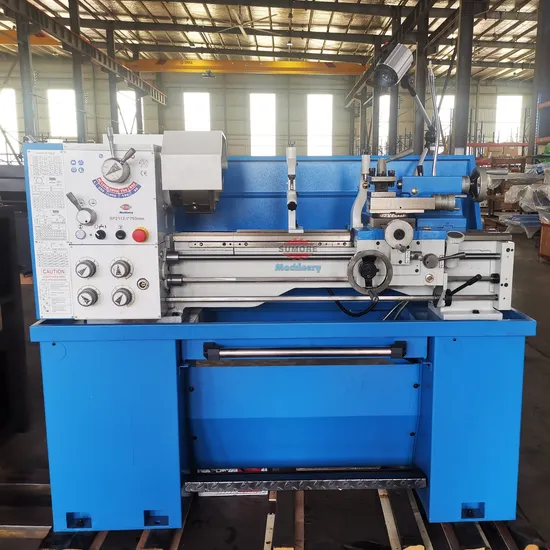

Detailed Photos
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE,ISo etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
