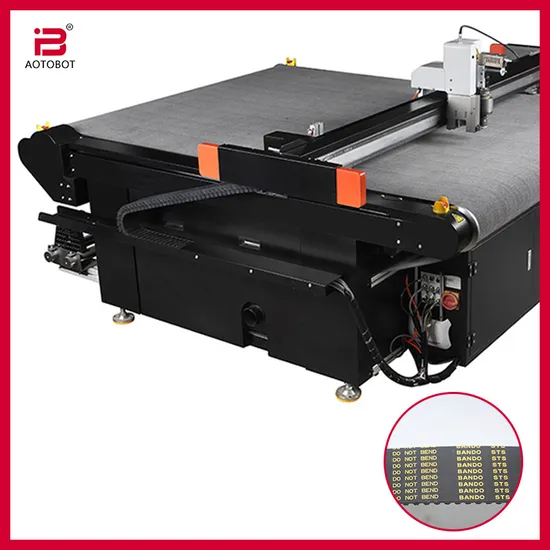

High Speed Computer Controlled Fabric Cutting Machine with Suction Table System

High Speed Computer Controlled Fabric Cutting Machine with Suction Table System

US$12,000.00-16,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
1815
Power Source
Electric
Automatic Grade
Automatic
Warranty
1 year
Certification
CE, ISO
Cutting Thickness
≤30mm
Cutting Speed
300 ~ 800mm/S
Command
Dxf, Hpgl Compatible Format
Fixing Method
Vacuum Suction
Transport Package
Wooden Case
Specification
2300*800*1700mm
Trademark
aotobot
Origin
Zhejiang, China
HS Code
8451500000
Production Capacity
10000/Year

Product Description

Product Parameters
Model No. B1-1013 B1-1815 B1-2516 B1-2518
Effective Work Area
( L * W )
1000 * 1300mm 800 * 1500mm 2500 * 1600mm 2500 * 1800mm
Special Size Customizable
Safe Device Physical anti-collision mechanism infrared induction anti-collision to ensure production safety
Standard Tool Driven rotary tool, Cursor, Pen
Optional Tool Electric oscillating tool, Projector system, Camera
Cutting Material Knitted Fabric ,Woven Fabric,Shearling,Pu Leather Oxford,Canvas,Sponge,Fake Leather,Cotton & Linen And Other Clothes / Luggage / Sofa / Mat / Carpet Material
Cutting Thickness ≤30MM
Cutting Speed 300 ~ 800mm/s
Cutting Precision ≤0.1MM
Repeated Accuracy ≤0.1MM
Fixing Method Vacuum suction
Interface Ethernet port
Driving System Intelligent digital control servo system
Command DXF , HPGL compatible format
Control Panel Multi-language LCD touch panel
Suction Power 1.5KW - 9KW ( Variable frequency air pump is optional)
Power Supply AC220 / 380V 50 ~ 60HZ
Working Environment Temperature:-10ºC-40ºC , Humidity : 20 % 80 % RH

Product Description
Automatic nesting system : fast and efficient layout, saving time and materials
7 inch touch screen : easy to learn , easy to operate
Conveyor table : continuous feeding , ultra-ong cutting, cutting length is not limited by the length of the table
Infrared sensing system : 360'surround security to ensure operator safety
High quality suction table system : highly flat honeycomb aluminum plate platform with strong suction and long-lasting flatness
Imported servo motor / linear guide : Stable machine performance , long life and high precision
Company Profile
ZHEJIANGBOPAIINTELLIGENGTTECHNOLOGYCO.,LTD is high-tech company, which is specialized in intelligent cutting equipment design, research, and sales. With introducing foreign advanced technology and incorporating own experience in cutting field for many years, AOTOBOT has becomes the complete solution manufacture. It supplies CAD, spreading machine, smart cutting machine for soft material cutting industry. The company's products have been used from traditional textiles and clothing to the outdoors. car home furnishing. sofa seat, medical treatment, industrial textile industry and other fields. And successfully developed cutting technology for glass fiber, aerospace materials, bulletproof materials, synthetic materials. The company's products are all over Germany, the United States. The company's product has been sold to Germany, United states, Brazil, Vietnam, Cambodia, India, Kazakhstan and other countries. Also established branch in Vietnam. With rich experience and R&D ability, AOTOBOT could provide customized service and personalized product. also it supplies systematic cutting solution. Has invested enormous amount of energy on intelligent factory automation, AOTOBOT hugely promotes production efficiency and solve factory intelligence problems for customer factory Our aim is to create reliable products with professional technology and win the recognition of users with good after-sales service. Business philosophy: Integrity and cooperation, and win-win future. Corporate culture: unity, diligence, refinement, and innovation. Future development, we will open. more intelligent cutting custom era.
FAQ
Q1. Are you a factory or a trading company?
(ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD.)is a national high-tech enterprise specializing in the design, research and development, production, sales and service of intelligent cutting equipment. We have more than 15 years of manufacturing experience, and our products
were exported to more than 80 countries and regions.
Q2. Where is the advantage of your machine ?
Our cutting system technology developed from Japan since 40 years ago, till now , we have sold to
More than 40 countries.
Aotobot brand cutting machine equipped with all the specifications . Bopai company appled the Patent of double knife plate which hugely improved the cutting speed by double time. Aotobot equipment supply YASAKAWA motor and drive system,
Adsorption device, bristle cleaning automatically,air cooling system, knife intelligence technology etc.
Q3. how about the installation and after sale service?
A: we have one strong and professional after sale service team,all the engineers with more than 10 years experiences. We can send technical to supply training and installation. Also we have distributors in all over the world, which also can take care of the after sale service daily.
Q4. How do you guarantee your quality?
A: With more than 40years of manufacturing experience, our products are
superior to the domestic standard and meet the Japan standard. All the main device are
Importing from Japan . machines run well without confusion on problem.
