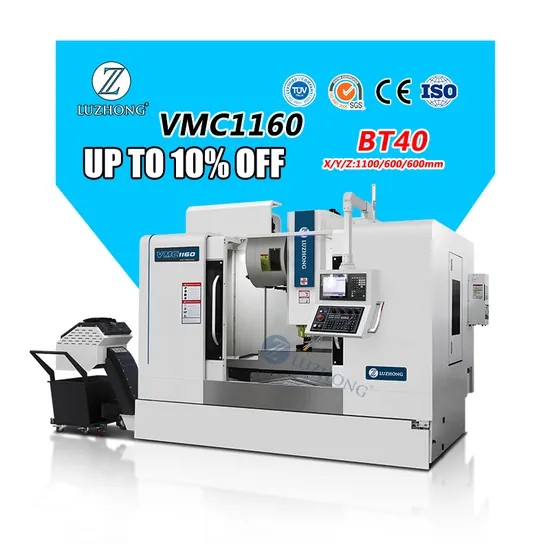

Heavy duty cnc machining tool cnc milling machinery machine center price

Heavy duty cnc machining tool cnc milling machinery machine center price

US$31,300.00
1-4 set
US$29,700.00
5+ set

Basic Info.

Model NO.
VMC1160
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Specifications
VMC1160
Table size
1200X600mm
X axis travel
1100mm
Y axis travel
600mm
Z axis travel
600mm
Max. table load
1000kg
T slot
5-18*125
Spindle taper
BT40
Main motor power
11kw
Transport Package
Plywood Case
Specification
3400x2480x2960mm
Trademark
LUZHONG
Origin
China
HS Code
8457101000
Production Capacity
2000 Pieces/Year

Packaging & Delivery

Package Size
340.00cm * 260.00cm * 290.00cm
Package Gross Weight
7000.000kg

Product Description

Heavy duty cnc machining tool cnc milling machinery machine center price Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Automatic lubrication system
Chip conveyor as optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:
Units VMC1160
Table size mm 1200*600
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Max. worktable load kg 1000
T slot(number-width*pitch) - 5-18*100
Max. spindle speed rpm 8000
Spindle taper mm BT40
Main motor power kw 11
X/Y/Z rapid traverse speed m/min 24/24/20
Cutting feed speed mm/min 1-8000
Guide rail type - Linear rail
Distance from spindle axis to column surface mm 650
Distance between spindle nose and table surface mm 120-720
Positioning accuracy mm 0.0075
Repeat positioning accuracy mm 0.005
Tool magazine - Arm 24
Max. tool diameter mm 78/120
Max. tool weight kg 8
Machine weight kg 6800
Overall dimension(L*W*H) mm 3400*2500*2960

Machine Standard Details
MACHINE CONSTRUCTHigh strength high quality HT300 cast iron CONTROL SYSTEMStandard: GSK25i / KND1000 control
TAIWAN PRECISION SPINDLE1. Taiwan spindle BT40 8000rpm
2. Passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 2-3 seconds.
LEAD SCREW AND COUPLING1 TAIWAN HIWIN famous brand lead screw,
2. lead screw bearing usingSKF or NACHI bearing,
3. coupling YC directly connected
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder
AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change
STRONG CHIP PUNCHINIG
Standard with strong chip punching function .
AIR GUN AND WATER GUNHigh-pressure air guns and water guns
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDERELECTRICAL COMPONENTS 1. with Schneidersafety electrical components
2. Quick plug as standard
AIR CONDITIONER with Industrial electrical cabinet air conditioner.
Cooling the electric box better .
LUBRICATION SYSTEM HERG Automatic centralized lubrication device .
TESTING Each machine passed Renishaw laser interferometer testing TESTING Each machine passed Renishaw ballbar testing
BT40 MILLING CHUCK
Standard with BT40 milling chuck
LOCKING KNIFE BLOCK
Standard with lock knife block


Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC etc.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
