Js1500 Concrete Mixer Lift Hopper Hzs75 Concrete Mixer Plant

Js1500 Concrete Mixer Lift Hopper Hzs75 Concrete Mixer Plant

US$37,100.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HZS75 Concrete Batch Plant
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
75m²/h
Certification
ISO9001: 2000, CE
Condition
New
Color
Can Be Customization
Mixer Model
Js1500
Output Per Batch(M³)
1.5
Aggregate Batcher
PLD2400
Total Power(Kw)
110
Aggregate Weighing Accuracy(%)
4000kg±2%
Cement Weighing Accuracy(%)
800kg±1%
Water Weighing Accuracy(%)
500kg±1%
Fly Ash Weighing Accuracy(%)
500kg±1%
Additive Weighing Accuracy(%)
50kg±1%
Discharge Height(M)
3.8-4.1
Max. Aggregate Dia.(mm)
80
Cement Silo and Screw Conveyor
on Request
Total Weight (Ton)
45
Transport Package
Standard Packing for International Transport of Tw
Specification
25.9x9.2x11.8m
Trademark
FOCUS
Origin
Zhengzhou
HS Code
8474310000
Production Capacity
120 Sets Per Month

Product Description

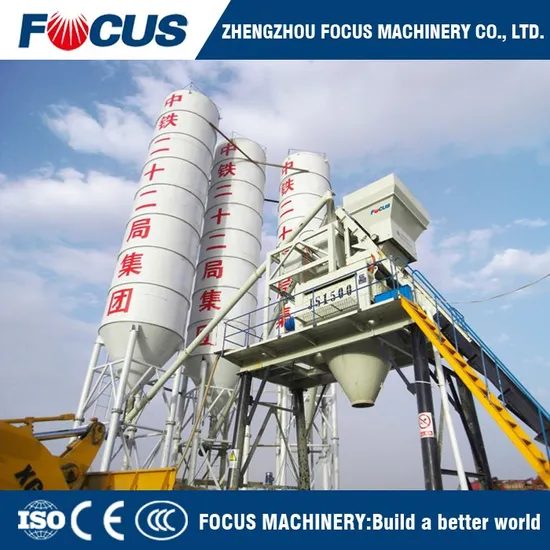

JS1500 Concrete Mixer Lift Hopper HZS75 Concrete Mixer Plant
Why would our clients choose FOCUS ready mixed concrete batching plant?
On the basis of combining advantages of various foreign ready mixed concrete batching plant and advanced technology, FOCUS HZS ready mixed concrete batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS ready mixed concrete batching plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS ready mixed concrete batching plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Compact-structured planetary gear was adopted in our ready mixed concrete batching plant to ensure smooth, speedy and efficient transmission;
3. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
4. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the ready mixed concrete batching plants;
5. Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing;
6. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole batching plant is all in closed state;
7. Cement silo is a kind of closed huge column-shape tank storing bulk materials. Material level system is installed in the silo, which can show the position and quantity of the materials. The materials can be sent to all the positions with the combination of cement silo and screw conveyor pump.
8. Screw conveyor Its characteristics are compact structure, small cross section area, light weight, good sealing performance, high conveying efficiency, flexible process layout, easy movement and operation security.
9. UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software;
10. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
11. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
FOCUS Lift Hopper Series Concrete Mixing Plant Technical Parameters
model HZS25 HZS35 HZS50 HZS75
Theoretical output(m³/h) 25 35 50 75
Mixer model JS500 JS750 JS1000 JS1500
Output per batch(m³) 0.5 0.75 1 1.5
Aggregate batcher PLD800 PLD1200 PLD1600 PLD2400
Total power(KW) 27 35 80 110
Aggregate weighing accuracy(%) (0-1500)kg±2% (0-2250)kg±2% (0-2500)kg±2% (0-4000)kg±2%
cement weighing accuracy(%) (0-300)kg±1% (0-400)kg±1% (0-500)kg±1% (0-800)kg±1%
water weighing accuracy(%) (0-200)kg±1% (0-300)kg±1% (0-300)kg±1% (0-500)kg±1%
fly ash weighing accuracy(%) (0-300)kg±1% (0-300)kg±1% (0-300)kg±1% (0-500)kg±1%
additive weighing accuracy(%) (0-40)kg±1% (0-40)kg±1% (0-40)kg±1% (0-50)kg±1%
Discharge height(m) 3.8-4.1
Max. aggregate dia.(mm) 60 60 80 80
Cement silo and screw conveyor On request
Total weight (ton) 20 25 35 45
Overall dimension(LxWxH)(m) 11.5x5.8x19.4 12x6x19.4 20.5x7.5x19.4 25.9x9.2x19.4

Our ready mixed concrete batching plants have been installed and operated all over the world:
Our ready mixed concrete batching plants have been delivered /distributed to the world and received high reputation-it'll be such a great honor if you can join us:
Hzs75 75m3/H Small Concrete Batching Plant for Sale
1.High quality and good price
2.Great after-sale service
3.ISO CE and CE certified,12 months warranty
