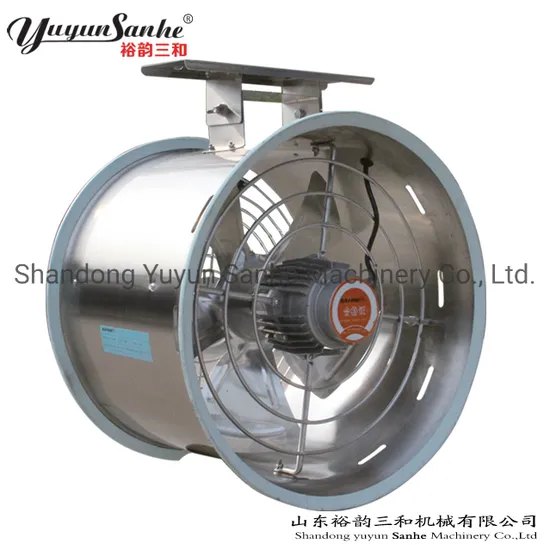

Hanging Type Ceiling Mounted Air Cooling Ventilation Exhaust Fan Axial Flow Fans Air Circulation Fan Greenhouse Poultry House Husbandry Livestock Equipment
Basic Info.
Model NO.
DJF(g)
Usage
Ventilation and Cooling Equipment
Application
Chicken
Power Source
Electric
Certification
ISO9001:2008, CE
Condition
New
Warranty
2 Years
Product Name
Air Circulation Fan Ceiling Mount Hanging Typep
Frame Material
Stainless Steel
Blade
Aluminum Alloy 5PCS
Speed
1 Speed
Power Supply
Electric
Power
120W
Outer Size
560*560*350mm/460*460*350mm
Votage
380/220V/Customized
Frequency
50/60Hz
Air Flow
5300m3/H, 6300m3/H
Drive Type
Motor Direct Drive
Apply
Greenhouses, Poultry Houses, Industrial Workshop
Cooling Type
Axial Flow Air Cooling Cooler Ventilation
Transport Package
Standard Paper Carton
Specification
International Standard
Trademark
Yuyun Sanhe
Origin
Shandong China
HS Code
8414609090
Production Capacity
600PCS/Day
Product Description
DJF(g) Series Air Circulation FanTechnical Parameter:
| Model | Blades Diameter | Rotational Speed | Air Flow (m³/h) | Input Power (W) | Voltage (V) | Frequency (HZ) | Outline Size (H*W*T) (mm) |
| DJF(g)-400 | 400mm | 1400rpm | 5300 | 120 | 220 / 380/ Customized | 50 / 60 | 460*460*350mm |
| DJF(g)-500 | 500mm | 1400rpm | 6300 | 1120 | 560*560*350mm |
Product Description:
| Cone and Shutter 1.Reasonable Cone design for bigger exhaust power, Large airflow and steady air output 2.Aluminum alloy shutters for light weight and attractiveness. | |
| Frame Hot Galvanized sheet with zinc thickness of 275g/sqm, avoiding rust effectively. Rubber Sealing Rubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan | |
| Bearing Imported double-row bearing with special waterproof design. Advantage: High strength, low noise, free maintenance and long service life. | |
| Blade Support Base 1.Material: Aluminum Magnesium Alloy. 2. Type: Plug-in connection Advantage: Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided |
About our Company
Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
