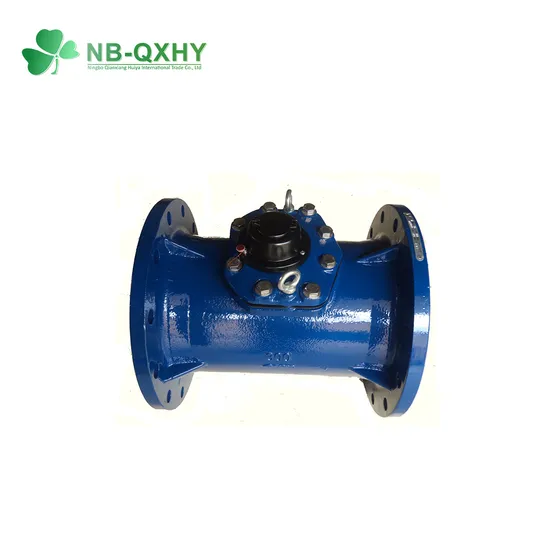

Big/Small Intelligent Multi-Jet Caliber Wireless Water Meter with Battery Powered

Big/Small Intelligent Multi-Jet Caliber Wireless Water Meter with Battery Powered

US$50.00 10 Pieces (MOQ)

Basic Info.

Model NO.
NB-QXHY
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
DN50 to DN500
Application
Industrial, Household
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Wireless Communicating
Cover
Have Brass and Steel Two Type Cover
Body
Cast Iron
Connect
Flange
Package
Wooden Box Package
Transport Package
Wooden Box
Specification
DN50 to DN500
Trademark
NB-QXHY
Origin
China(Mainland)
HS Code
00000000
Production Capacity
200000 Piece/Pieces Per Month

Product Description

Big/Small Intelligent Multi-Jet Caliber Wireless Water Meter with Battery Powered
1. Product Description
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
2. Product Feature
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
3. Working Condition
Water temperature: 0.1ºC~40ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)
4. Maximum Permissible Errors
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
5. Product Specifications


Type Size (mm) Class qs Overload Flow qp Permanent Flow qt Transitional Flow qmin Min. Flow Min. Reading Max. Reading
m3/h m3
LXLC-80 80 A 80 40 12 3.2 0.002 999,999
B 8.0 1.2
LXLC-100 100 A 120 60 18 4.8 0.002 999,999
B 12 1.8
LXLC-125 125 A 200 100 30 8 0.002 999,999
B 20 3
LXLC-150 150 A 300 150 45 12 0.002 999,999
B 30 4.5
LXLC-200 200 A 500 250 75 20 0.002 999,999
B 50 7.5

Type Size L
Length
H
Height
Connecting flange
φD1 Outside diameter φD2 Bolt circle diameter Connecting Bolts
(n-M)
mm
LXLC-80 80 225 279 200 160 8-M16
LXLC-100 100 250 289 220 180 8-M16
LXLC-125 125 250 299 250 210 8-M16
LXLC-150 150 300 319 285 240 8-M20
LXLC-200 200 350 346 340 295 8-M20(1.0MPa)
12-M20(1.6MPa)

Code Description Material QTY
1 Screw For Sealing Stainless Steel 1
2 Cover With Lid Assembly 1
3 Sealed Register Assembly 1
4 Screw M4×20 Stainless Steel 2
5 Gasket Brass 2
6 Adjusting Nut Brass 1
7 Flange Cover Cast Iron 1
8 O-ring Silicon Rubber 1
9 Bush Brass 1
10 Gasket Synthetic Rubber 1
11 Adjusting Lever Brass 1
12 Connecting Lever POM OR MPPO 1
13 Adjusting Plate POM OR MPPO 1
14 Support ABS OR MPPO 1
15 Turbine Component Assembly 1
16 Rectifier ABS OR MPPO 1
17 Screw Brass 1
18 O-ring Synthetic Rubber 1
19 Body Cast Iron 1
20 Screw For Sealing Stainless Steel 1
21 Screw For Sealing Stainless Steel 3
22 Support ABS 1
23 Screw M4×20 Stainless Steel 2
24 Gasket Stainless Steel 4
25 Upper Bearing Plate Brass 1
26 Upper Bearing Nylon With Graphite 1
27 Magnet Component Component 1
28 Transmission Shaft Stainless Steel 1
29 Sheath Nylon 2
30 Bevel Gear POM 1
31 Bevel Gear Nylon 1
32 Gasket Stainless Steel 4
33 ScrewM5X12 Stainless Steel 4
34 Nut Brass 1
35 Gasket Brass 1
36 Turbine Shaft Hold Brass 1
37 Turbine Shaft Tungsten Steel 1

6. Workshop and Package Picture
7. Our Certifications
8. Our Factory
9. Our Service
Our Advantages:
(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
Why Us? (1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export! Welcome you inquiry us!
