6feet C Band Manual Fly-Away Dish Antenna

6feet C Band Manual Fly-Away Dish Antenna

US$9,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
NS-FM-180
Usage
Satellite Communication
Wave Range
C,Ku Band
Type
Outdoor
Antenna Diameter
1.8m
Antenna Type
Offset
Operational Band
C Band or Ku Band
Polarisation
Linear or Circular
Reflector Material
Carbon Fiber
Drive Mode
Manual
Transport Package
Flyaway Box
Specification
1.8m
Trademark
Newstar
Origin
China
Production Capacity
80 Sets Per Month

Product Description

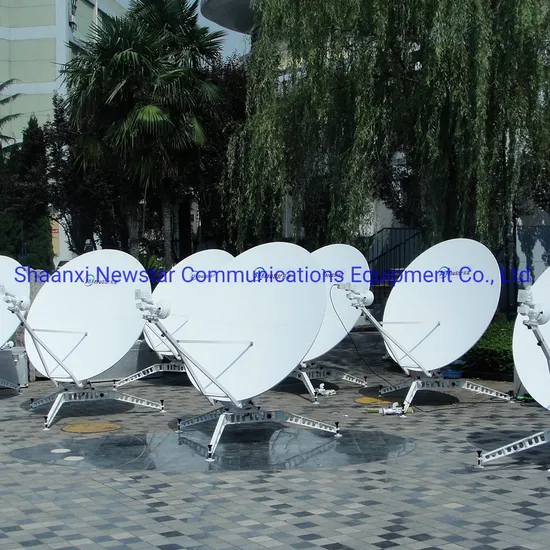

6feet c band manual Fly-away dish antenna
Characteristics:
1.Meets or exceeds CCIR 580 and INTELSAT requirements
2.Offset antenna;
3.Light weight,small volume,high accurancy,high strength;
4.High gain, Low sidelobe, high G/T rate;
5.Hot-dipped zinc processed Antenna mount, with strong corrosion resistant ability;
Accessories:
Foundation drawing, foundation template, anchor bolts.
Optional:
Non-penetrating mount.
ELECTRICAL SPECIFICATIONS
Model
NS-FM-180
NS-FM-180
C-band
Ku-band
RX
TX
RX
TX
Frequency, GHz
3.4~4.2
5.85~6.725
10.95~12.75 13.75~14.5
Gain,Mid-band, dBi
35.22
@3.95Ghz
39.13
@6.2Ghz
45.22
@12.5Ghz
46.36
@14.25Ghz
Pol
Linear / circular
Linear
VSWR
1.25
1.25
1.25
1.25
Cross polarization Isolation, dB 35 35
Noise temperature
(2-Port Feed)
10°elevation
20°elevation
40°elevation
35°K
29°K
26°K
43°K
36°K
32°K
-3dBBWave width, Mid-band
2.85°
1.82°
0.9°
0.79°
Isolation,Rx to Tx,dB 85 85
G/T
16.62dB/K
(30° LNA)
24.48dB/K
(70° LNA)
Feed loss, dB
0.2
0.2
0.4
0.5
Power Conten, KW
5

2
Interface
CPR-229G
CPR-137G
WR-75
WR-75
First sidelobe ≤-14
Side lobe envelop 29-25 log(θ) dBi 1°≤θ≤20°
MECHANICAL SPECIFICATIONS

Size 1.8m
Type Offset
Kingpost Az / El
Surface accuracy (RMS) ≤0.5mm
Driver model Manual
Panel material Carbon fiber or Aluminum
Panel qty 4pcs
Travel range Az El Pol 0-360° (continuous) 5°~90° (continuous) ±90° (continuous)
ENVIRONMENTAL SPECIFICATIONS
Wind speed of work
72kmph work wind speed(Hold the precision )
97kmph work wind speed(Lower the precision )
200kmph Survival Winds(Upturned lock)
Ice Load, Survival
13mm Wrapped ice normal work
25mm Wrapped ice survival
Temperature
-30ºC~50ºC
Relative Humidity
100%
Surface treatment
Steel parts: thermal-spraying zinc
Aluminum parts:spray paint
Solar Radiation
1135Kcal/h/m²
