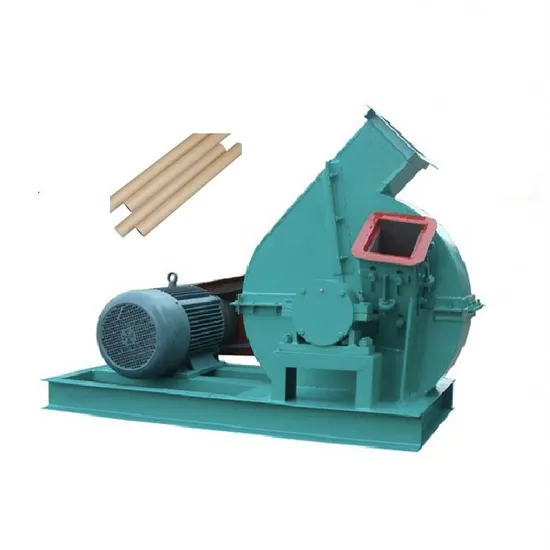

Paper Tube Shredder Cutting Machinery Paper Tube Crusher Crushing Machine

Product Description

RYX-800 Paper Tube ShreddeProduct DescriptionIntroduction:
It is an ideal equipment of processing the raw materials
including Paper tube, wood branch, round logs, square blocks, and wood pieces into wood chips once.
It has compact structure, reliable simple operation and solves the problem of the large difficult wood feeding.
RYX model Paper tube shredder machine is widly used in production of paper making, edible fungus, shaving board, sawdust, high density board, fiber board and so on.
How It Works:
The Paper tube is fed into through feed port, when it touches to cut blade, along with the cutting knife plate of high-speed rotation to peel and cut,
At last, these wood pieces are sent out through high speed steam-flow produced by fan blade in the knife plate
Product ParametersSpecification:

Model	Power	Capacity	Input opener	Dimension	Weight
RYX-600	22KW	1~3 T/H	150*140 mm	1.6*1*1.4m	880kg
RYX-800	37KW	3~6 T/H	170*160 mm	1.8*1.1*1.5m	1680kg

9CrSi steel
The blades needs to be sharpened every 50 hours for chipping wet wood
The blades needs to be sharpened every 30 hours for chipping dry wood
The blades needs to be sharpened or changed when significantly lower of output appears;
The blades are easy to install and maintain;
You could buy extra spare blades to keep stable production.
Disc Chipper with 2m discharging tube:
Wood Chips:
