US$6,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Quality Problems Are Solved Free of Charge
Dimension
4800X2450X1800mm
Processing Thickness
2-50mm
Range of Rolling Diameter
250
Pressure of Air Supply
6-8kg.F/Cm2
Power of Rolling Motor
0.75-1.1kw
Process Applicable Material
PE PP PVC Ppn PVDF Pph....
Professional Operation Video
Yes
Origin of Core Parts
Germany, Japan, Taiwan
Transport Package
Wooden Box or Strich Film
Specification
ISO, CE, SGS
Production Capacity
100 Sets/Year
Product Description
Some features:
1. PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2.Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3.Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4.Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5.Components imported from Japan for control system, with stable properties, lasting and endurable.
Specifications:
Model | DZ3000 |
Horizontal Welding&Rolling Thickness | 2-50 |
Processing Thickness(mm)
| 3-30 |
Processing Length(mm)
| 3000 |
Range of Rolling Diameter
| Φ250-350 |
Pressure of Air Supply(kg.f/cm²)
| 6-8 |
Rated Voltage(V)
| 380 |
Heating Power(KW)
| 5 |
Power of Rolling Motor(KW)
| 0.75-1.1KW |
Dimensions(mm)
| 4800x2450x1800 |
Applicable Materials | Plastic sheet/board made from PE, PP, PVC, PPN, PVDF |

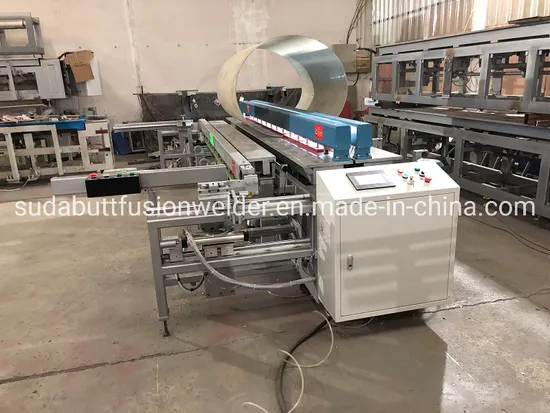

==>>Machine Photos
==>>The products by our machine processed
==>>Advantage
1.Our equipment has strong competitiveness, master the core technology, excellent r&d team and can design the machine according to customers inquiry. our device has the following characteristics:
The only updates the equipment for five generations development process
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2.Our Accessories mostly from Well-known enterprises.
3. Our automatic plastic sheet butt-welding/bending machine already service China Market 15 years old. Owning Sophisticated technical support and have experienced mechanical designers and software engineers who in this line about 10-15 years old.
4.By Absorbing the precious experience and suggestions of customers from foreigns, Our machine more practicability and competitive.
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
