US$1,000.00-2,000.00
|
1 set
(MOQ)
|
Basic Info.
Cutting Disc Size
300*2*32mm
Cutting Mode
Manual Cutting, Continuous Cutting & Pulse Cutting
Max. Movement Y Axis
270mm
Cutting Table Size
350X305mm
Feeding Mode
Automatic and Manual Mode
Transport Package
Plywood Case
Specification
900*920*670mm
Production Capacity
200sets/Month
Product Description

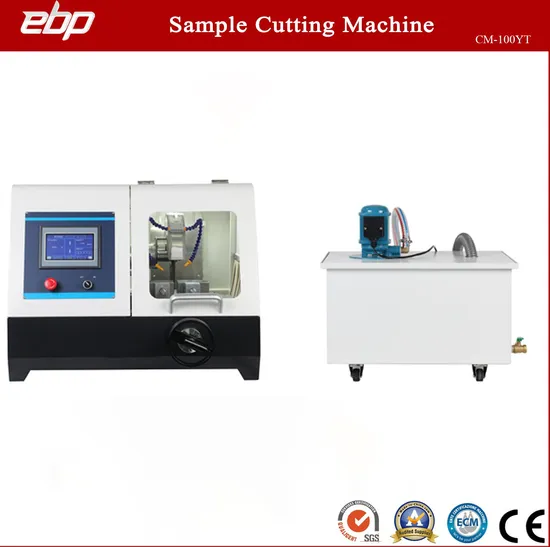

Product Description Automatic Metallographic Sample Cutting Machine with Touch Screen
Product Features: The automatic cutting machine is controlled by PLC and touch screen, with very high reliability and powerful control capability. The machine is equipped with a fully enclosed structure and a large viewing window on the safety guard of the cutting chamber, which makes it easy for the user to observe the whole process of cutting the sample; Equipped with LED lighting system to achieve effective lighting of the whole cutting chamber; Equipped with a circulating cooling system to ensure that the surface of the cut specimen is bright, flat and free from burns; The machine is suitable for cutting specimens of various metal and non-metal materials to observe metallographic and petrographic material. It is one of the necessary equipment for laboratory sample preparation, with automatic cutting process, low noise, easy operation, safety and reliability. Main Parameters:
Model | CM-80YT | CM-100YT |
Cutting wheel size | φ300xφ32x2mm | φ350xφ32x2.5m |
Maximum cutting diameter | Φ80mm | Φ100mm |
Cutting mode | Manual cutting, continuous cutting & pulse cutting |
Control & display | Touch screen (Feed depth tracking) |
The maximum movement of the table in Y axis | 270mm |
Cutting wheel rotation | 2800r/min |
Feeding speed | 0.01-3mm/s can be set arbitrarily |
Cutting table size | 350X305mm |
Feeding mode | Automatic mode and Manual mode |
Reset mode | Automatic reset |
Cooling system | Automatic water cooling |
Water tank | 50L |
Cutting chamber housing | Steel plate |
Cutting room light | Low voltage dc LED lighting |
Motor Power | 3kW |
Voltage | 380V, 50Hz, Three-phase four-wire |
Machine Dimension / weight | 900x920x670mm; 220kg |
Standard Accessories:
Item | Quantity |
CM-80YT or CM-100YT | 1 |
Cooling water tank (including pump) | 1 |
Wrench (13-15mm, 17-19mm) | 2 |
Hexagonal spanner (6mm, 8mm) | 2 |
Water inlet pipe, Drain-pipe | 2 |
Diamond Cutting wheel | 1 |
