Paper Cup Machine Product Type and New Condition Paper Cup Machine

Paper Cup Machine Product Type and New Condition Paper Cup Machine

US$6,800.00-8,600.00 1 Set (MOQ)

Basic Info.

Model NO.
ZB-D
Speed
40-60pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Power
4kw
Transport Package
Sea Worthy Standard Packaging
Specification
2700*1400*1700
Trademark
Dakiou
Origin
Ruian, Zhejiang, China
HS Code
844310
Production Capacity
40 Sets/Month

Product Description

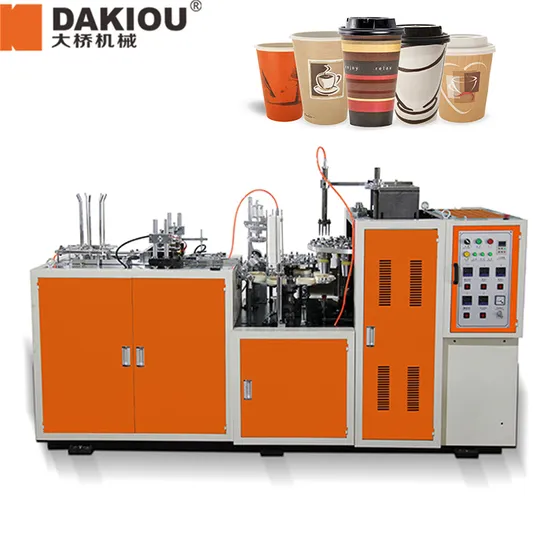

ZB-D Best Quality Best-Selling Paper Cup Manufacturing Machine
Product Show
Product Parameters
ZB-D automatic paper cup forming machine comes with automatic lubrication system, which makes all mechanical parts working much more smoothly.The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage.It has PLC control,sensor failure detecting system, cup bottom paper feeding controlled by servo motor,.The machine has safety guard to protect the people working safely,it is the best choice for making paper cups.
Technical Specification
Type: ZB-D
Cup size: 3-12oz(different size mold exchanged)
Suitable Paper Material: 150-380g/m2(single or double PE-coated paper)
Capacity: 50-60pcs/min
Power Source:: 220V,380V 50HZ(please inform us your power in advanced)
Working Power: 6KW
Weight: 2000KG
Package Size: 2600 x 1350 x 1700 mm
Working Air Source: Air pressure 0.4Mpa;Air out-put:0.6m3/min
A:op diameter:
Min 45mm---Max 90mm
B: bottom diameter
Min 35mm---Max 75mm
C: total height
Min 30mm---Max 115mm
D: bottom knurling depth
Min 4mm---Max 12mm
E: rim diameter
Us ually Φ2.5---Φ3

Product Process
FAQ
We are Manufacturer...
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
