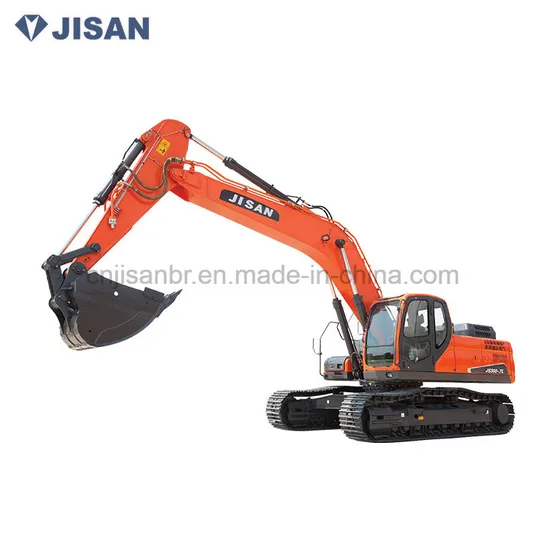

Hydraulic Crawler Excavator for 30 Tons Construction Machinery
| US$150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JS300-7L
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Engine
Doosan De08, Lsuzu 6HK1
Engine Power
147/1900, 190/1900
Cab Height
3031
Track Length
4940
Track Width
600
Tail Swing Radius
3188
Swing Speed
9.4
Transport Package
Nude Packing
Specification
10615*3200*3697
Trademark
JISAN
Origin
Yantai, China
Production Capacity
100
Packaging & Delivery
Package Size
1061.00cm * 320.00cm * 369.00cm
Package Gross Weight
30120.000kg
Product Description
Product ApplicationJISAN JS300-7L medium excavator has stable performance and convenient operation. It adopts Japanese Yanmar original engine to meet domestic exhaust emission standards, and installs new cooling fan and large silencer to meet the European noise standard environment-friendly engine. At the same time, take into account the development of urban environmental protection.
Flexible operability is at the heart of the job. The JISAN JS300-7L excavator utilizes the Korean hydraulic system. The driver can distribute the oil evenly according to the operation requirements, so that the power arm, the stick and the bucket can be operated flexibly, quickly and efficiently.
JISAN JS300-7L is more popular in the market. This type of excavator is often used in common earthwork construction, such as foundation excavation, road and railway subgrade construction.
| SPECIFICATIONS FOR 30 TONS CRAWLER EXCAVATOR | |||
Specifications | Weight | kg | 30120 |
| Bucket | m³ | 1.45 | |
| Boom | mm | 6245 | |
| Stick | mm | 3100 | |
Engine | Engine model | doosan DE08, lsuzu 6HK1 | |
| Rated Power | Kw/rpm | 147/1900, 190/1900 | |
| Cooling Methed | water-cooling | ||
Main performance parameters | Rotation Speed | rpm | 9.4 |
| Walking Speed | km/h | 5.7/3.2 | |
| Bucket Digging Force | kN | 183.3 | |
| Stick Digging Force | kN | 128.4 | |
Hydraulic system | Main Pump Type | Variable Axial Piston Pump | |
| Maximum Flow | L/min | 2*248 | |
Size | Transport Width | mm | 3200 |
| Transport Length | mm | 10615 | |
| Transport Height | mm | 3697 | |
| Cab Height | mm | 3031 | |
| Tail Swing Radius | mm | 3188 | |
| Counterweight Ground Clearance | mm | 1150 | |
| Track Length | mm | 4940 | |
| Track Width | mm | 600 | |
| Track Height | mm | 1033 | |
| Minimum Ground Clearance | mm | 506 | |
| Working Range | Maximum Digging Distance | mm | 10702 |
| Ground Maximum Digging Distance | mm | 10506 | |
| Maximum Digging Depth | mm | 7275 | |
| Maximum Digging Height | mm | 10315 | |
| Maximum Loading Height | mm | 7303 | |
| Maximum Vertical Wall Digging Depth | mm | 4907 | |
