1000W Hand Held Fiber Laser Welding Machine Metal Mold Auto Spare Parts Optical Fiber Laser Continuous Welding Machine

1000W Hand Held Fiber Laser Welding Machine Metal Mold Auto Spare Parts Optical Fiber Laser Continuous Welding Machine

US$6,500.00
1-9 Pieces
US$5,200.00
10+ Pieces

Basic Info.

Model NO.
DPX-W1000
Application
Electronic Industry, Automotive Industry, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Power
1000W
Weight
200kg
Laser Source
Maxphotonics, Raycus
Transport Package
Wooden Case
Specification
1160x630x1140mm
Trademark
Horizon laser
Origin
China
HS Code
8515809090
Production Capacity
1000PCS/Year

Product Description


Product Description
The hand-held laser welding machine adopt a fiber laser source and transmit high-brightness laser through the fiber, obtain a high energy density output through the hand-held welding head. It is used for welding stainless steel, low carbon steel, aluminum alloy and other materials, and the operation is flexible and convenient. The hand-held laser welding machine is integrated with fiber laser source, hand-held welding head, chiller, wire feeder, laser control system, and safety light emitting system. The overall design is small, beautiful, and easy to move. It is convenient for customers to choose a working place without being limited by space and scope. This machine can be used for welding applications in billboards, metal doors & windows, sanitary ware, cabinets, boilers, frames and other industries.

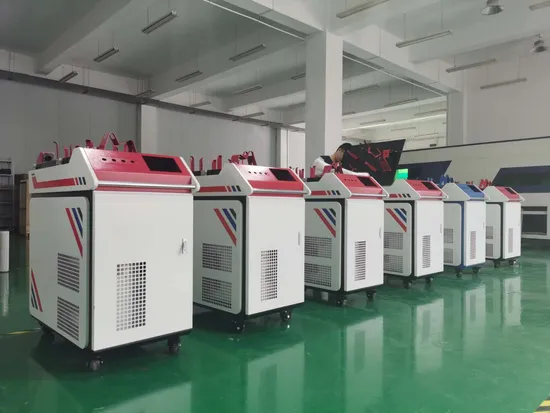

Detailed Photos
Appication

Product Parameters

Technical Parameters
Model
DPX-W1000
DPX-W1500
DPX-W2000
Laser Source Type CW fiber laser source(Wavelength: 1080±3nm)
Output Power 1000W
1500W
2000W
Power Adjustment Range 10%~100%
Welding Mode Continuous Welding, Spot Welding
Adjustable Weld Width 0.2~5 mm
Torch Cable Length About 10m
Torch Weight <1.2 kg
Dimensions(L*D*H) 1000*550*700mm
1200*600*1300mm
Net Weight 110kg
250kg
Power Consumption <5kw
<7kw
<9.5kw
Operating Voltage Single-phase 220VAC/ Three-phase 380VAC
Working Environment Temperature:0~40ºC,Humidity<70%
Safety Light Emission System 1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece.2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low.
3. Welding gun firing button and laser shutter, double insurance to emit light.

Welding speed is 4 times faster than argon arc welding;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Welding Performance
Recommended Welding Thickness for Different Materials
Model DPX-W1000
DPX-W1500
DPX-W2000
Stainless Steel ≤3.0mm
≤4.0mm
≤6.0mm
Mild Steel ≤3.0mm
≤4.0mm
≤6.0mm
Galvanized Sheet ≤2.0mm
≤3.0mm
≤5.0mm
Aluminum Alloy ≤2.0mm
≤3.0mm
≤4.0mm
Brass ≤2.0mm
≤3.0mm
≤4.0mm
Note: The above is the maximum processing capacity of each model.

Our Advantages

Certifications
After Sales Service
1. 7*24 hour
2. Response time<12 hours
3.Online support
4.Product replacement
5. Customer field service
6. Backup products during repairing for long time cooperators
* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
