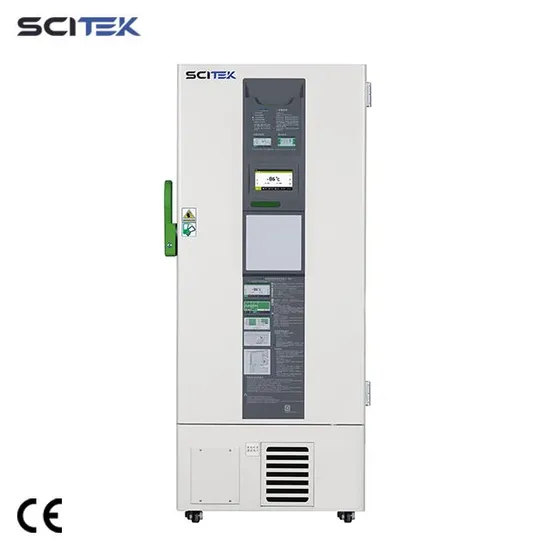

SCITEK Deep freezer 838L Stainless steel 2 years warranty in stock freezer

SCITEK Deep freezer 838L Stainless steel 2 years warranty in stock freezer

US$6,980.00-7,250.00 1 unit (MOQ)

Basic Info.

Model NO.
UFZ-86V840P
Application
Industry, School, Hospital, Lab
Customized
Customized
Certification
CE, ISO
Structure
Vertical
Material
Stainless Steel
Type
Freezers
Capacity (L)
838
Temperature Range (ºC)
-40~-86
Refrigerant
R4001 (CFC Free)
Voltage/ Frequency
AC110/220V 10%, 50/60Hz
Controller
Microprocessor
Transport Package
Wooden Package
Specification
1179x1135x1994
Trademark
SCITEK
Origin
China
HS Code
8418401000
Production Capacity
100 Units/Months

Packaging & Delivery

Package Size
126.20cm * 109.80cm * 218.50cm
Package Gross Weight
424.000kg

Product Description

Product DescriptionModel Features
There is an added layer of security through the implementation of two separate cooling systems. Once one system fails, the other can effectively sustain an inner temperature of -70ºC.
Accurate Microprocessor-controlled system ensures temperature rage of -86ºC to -40ºC for chamber space with 1ºC increment.
Powerful cooling system with unique design supports rapidly temperature decrease.
Safety inner door design gives more tight seal for freezer. Allow users to suit needs together with adjustable shelves.
Chamber material made by 304 stainless steel for friendly cleaning.
Reliability
Safety password protected control panel prevents unauthorized system modification.
Audible buzzer and visible flashing temperature alarm system for High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm,door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm
Door lock for storage safety
Ergonomic Design
Upright door with limit door hinge prevents collision when door opens.
Controller password protected to avoid unauthorized system modification.
Lockable universal caster wheels for easy moving.
Removable inner door for user to defrost and clean.
Product Parameters
Model
UFZ-86V410P
UFZ-86V590P
UFZ-86V730P
UFZ-86V840P
Capacity (L)
408
588
728
838
Size(WxDxH)
Internal (mm)
606x575x1180
606x738x1310
963x571x1350
894x718x1310
External (mm)
891x992x1945
891x1155x1994
1248x975x1994
1179x1135x1994
Temperature
Range (ºC) at room temperature 10~32ºC
-40~-86
-40~-86
-40~-86
-40~-86
Sensor
PTC
PTC
PTC
PTC
Controller
Microprocessor
Microprocessor
Microprocessor
Microprocessor
Cooling System
Refrigerant
R4001 (CFC Free)
R4001 (CFC Free )
R4001 (CFC Free )
R4001 (CFC Free )
Defrost
Manual
Manual
Manual
Manual
Compressor (Qty)
SECOP/2
SECOP/2
SECOP/2
SECOP/2
Display
LCD display
LCD display
LCD display
LCD display
Audible&Visible Alarm
High/Low temperature, High ambient temperature, Sensor error, Abnormal voltage,Low battery, Door ajar, 72h Power failure backup system(alarm)
Material
Internal
Stainless steel, grade 304
External
Electro-galvanized steel with antimicrobial powder coating
Inner door
Stainless steel, grade 304
Accessories
Standard
USB port, Casters, Remote alarm port, 25mm Test hole
Optional
Data logger, Back up system (CO2/LN2)
Shelves / Drawers (Qty)
Shelves/3
Shelves/3
Shelves/3
Shelves/3
Optional Frozen Racks (Qty)
Racks
8(5x4)+8(4x4)
16(5x5)
18(5x4)+6(6x4)
18(5x4)+6(6x4)
Boxes (2 Inches)
288
400
504
600
Samples (2ml)
28800
40000
50400
60000
Sound Emission (dB)
53
53
55
55
Electricity
Voltage/Frequency
AC110/220V±10%, 50/60Hz
Consumption (W)
1350
1500
1400
1700
N.W./G.W. (kg)
285/310
303/332
380/400
391/424
Shipping Size (WxDxH) (mm)
954x955x2094
970x1138x2185
1320x970x2185
1262x1098x2185
