Double Heads PE Film Blowing Machine
| US$16,800.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GBC-400/600
Application
Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
PE
Machine Inverter Brand
Made in Taiwan
After-Sale Service Provided
Engineers Available to Service Machinery Overseas
Certificated
CE, ISO9001: 2008, SGS, TUV
Screw Length Proportion
30:1
Film Thickness
LDPE0.015-0.20mm, HDPE0.008-0.05mm
Gurantee
One Year
Optional Device
Corona
Transport Package
Wrapping Film Packing or Packed in Wooden Case
Specification
CE, ISO9001: 2008, SGS, TUV
Trademark
SILSTAR
Origin
China Mainland(Jiangyin)
Product Description
Company ProfileSilstar machinery founded in 1997, covers an area of 32,000 m2,we focused on film blowing machine, bag making machines for plastic bag and compostable bag. We have obtained 2 invention patents on garbage bag making machine and labeling machine, 13 utility model patents, which has become one of the leading companies in this industry. By now It has already got the CE certification, ISO9001 quality certification, and ISO45001 safety management certification.
Product Description

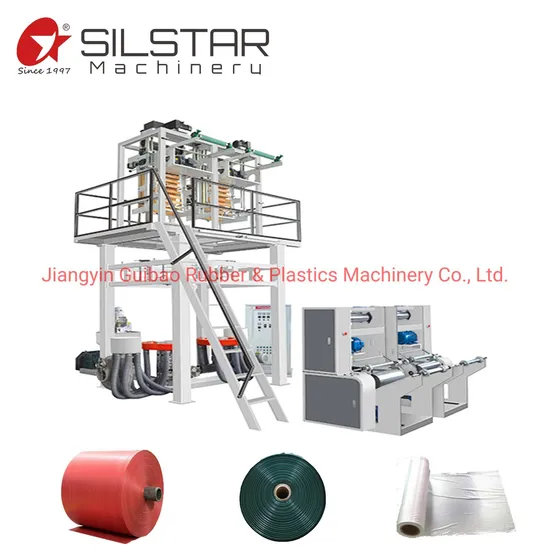

Extruder from silstar company can blow all sizes of LDPE. HDPE and LLDPE plastic film which is used in packing food,
The general merchandise, chemicals textile, shopping bags, gift bags, and industrial packing.
The barrel of the machine and the screw rod are accurately made of quality 38 CrMoAl nitro-alloy.
It is anti-abrasion and corrosion resistance
Product Parameters
| Model | GBC-400 | GBC-600 |
| Screw diameter | 45mm | 55mm |
| Screw length proportion | 30:1 | 30:1 |
| No.of Heads | 2 | 2 |
| Film-blowing width | 100-400mm | 100-600mm |
| Film-blowing thickness | LDPE0.015-0.20mm HDPE0.008-0.05mm | LDPE0.015-0.20mm HDPE0.008-0.05mm |
| Output | 20-70kg/hour | 40-100kg/hour |
| Total power | 28kw | 45kw |
| Dimension of the machine | 5000×2500×3800mm | 5200×2900×4500mm |
| Total weight | 3500kg | 4800kg |
Certifications
Packaging & Shipping
Exhibition
FAQ
| 1. Q: How long will your engineer reach our factory? A: Within 7-15 days after the machine arrives at your factory. |
| 2. Q: How many days will you finish installing? A: We will finish installation and training within 3-7 days. |
| 3. Q: What should we charge for your engineer? A: You should charge for the cost of our engineer's visa, round trip tickets, accommodation, and also their salary of 100USD one day per person. |
| 4. Q: How long is your machine's warranty period? A: All our machines have one year guarantee, starting from the finished installation. |
| 5. Q: How could we do after one year warranty period? A: We also can do service for you, but you need to pay the salary for my technician 100USD/day. |
| 6. Q: How could we do if the parts are broken within the warranty? A: We would express the free replacement parts during the warranty date. |
| 7. Q: Does your engineer understand English? A: Our engineer understands a little English. All of our engineers have more than five years machine installation experience. |
| 8. Q: How many workers do we need to run those machines? A: Usually need one person to operate the machine. |
| 9. Q: How do we solve the machine problem after your engineer leaves? A: Generally speaking, there will be no problem after finishing the installation. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description. |
| 10. Q: How can I visit your company? A: It takes 30 minutes by train from Shanghai to our factory. |
