5tons 8m3 Waste Refuse Compactor Truck with Swing Arm Garbage Container
| US$12,430.00-23,460.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW5112WYT
Type
Compactor
Certification
ISO9000, CCC, TS16949, CE
Volume
6001-10000L
Emission Standard
Euro 3
Transmission Type
Manual
Payload
10tons
Fuel
Diesel
Drive Wheel
4×2
Brand
Dongfeng
Models
Small
Usage
Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
Condition
New
Chassis Brand
Dongfeng, Foton, HOWO, Shacman, Isuzu
Material
Carbon Steel
Body Thickness
Side 4mm Bottom 5mm
Horsepower
95HP, 120HP
Campacting Ratio
0.7-0.8 Ton/Cbm
Logo
as Per Customer′s Request
Loading Capacity
4tons 5tons 4t 5t 4ton 5ton
Engine
Diesel Engine Chaochai Engine
Driving Type
LHD, Rhd
After Sales Service
Overseas Technical Support
Loading Method
Rear Loading, Back Loading, Rear Loader
Tire
7.00r16 Tire, 6 PCS with One Spare
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
5tons, 5t, 5ton, 8cbm, 8cbm, 8000liters
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Product Description
5tons 8m3 Waste Refuse Compactor Truck with Swing Arm Garbage Container Product Description1-refuse compactor truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System of Rear Loader Refuse Truck: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of refuse compactor truck: option for 3-20m3 garbage truck,optional for loading capacity from 1ton to 16tons
6--Steering wheel of refuse compactor truck: both left and right hand drive,meet the needs of different countries
7--Emission standard refuse compactor truck: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 rear loader truck
8--Truck chassis of refuse compactor truck: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specifications of dongfeng 4X2 5tons 8cbm refuse compactor truck
| Drive type | 4X2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 7350×2250×3000 | |
| Wheel base (mm) | 3300 or 3800 | ||
| Track front/rear mm | 1745/1800 | ||
| F/R Axle-Load | / kg, | ||
| Approach/departure angle | 8/12 | ||
| Weight in KGS | Curb Weight | 6100kg | |
| GVW | 11450kg | ||
| Max. driving speed(km/h) | 98 | ||
| Engine | Brand | Chaochai engine,Diesel ENGINE | |
| Model | CY4102-C3F | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 120hp | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 8.25R20, 6 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Rear Loader Refuse Truck | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 6cbm pr 8cbm | ||
| Body material | Floor plate 4mm and side plate 5mm | ||
| Waste water tank | 200L | ||
| Filling container volume | 500L | ||
| Filling time | 8~10s | ||
| Filling cycle time | 50~60s/time | ||
| Discharge time | 30~40s | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||

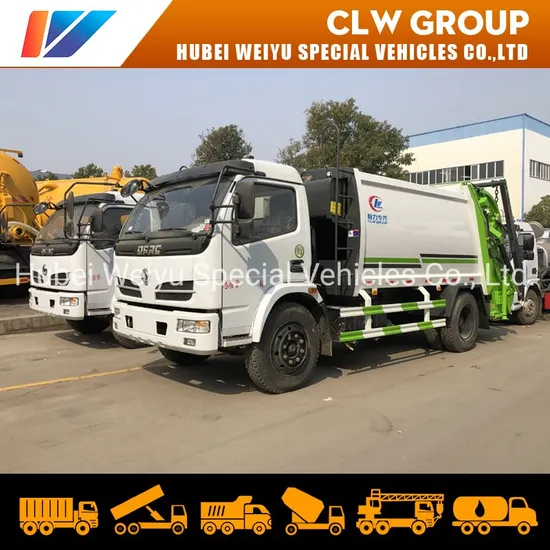

Reference picture of Dongfeng 5tons refuse compactor truck
