Basic Info.
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Centrifuge Type
Disc Centrifuge
Distillation Equipment Type
Steam Distillation Equipment
Name
Automatic Disc Oil Separator
Treatment Capacity (L/H)
4000-7000
Application
Disc Oil Separator
Transport Package
Wooden Case
Specification
1000mm*920mm*1300mm
Product Description
Product descriptions
Automatic Continuous Disc Stack Palm oil Olive Oil Avocado Oil Centrifuge
Automatic Continuous Disc Stack Centrifuge Palm oil Olive Oil Avocado Oil Centrifuge Separation Separation technology involving a disc stack separator (which can also be referred to as a centrifuge) is used for centrifugation in which various phases of solids and liquids are isolated from one another based on the difference in densities.
How a disk stack centrifuge works Disc stack separators use the force of gravity to separate liquid with a specific density from other liquids and solids.
Separation technologies are essential to a broad range of industries - from food, beverage and marine and energy through to water and waste treatment. Various technologies are used for separating liquid from liquid and solids from liquids with the aim of producing cleaner substances, valuable by-products and less volume of waste to dispose.

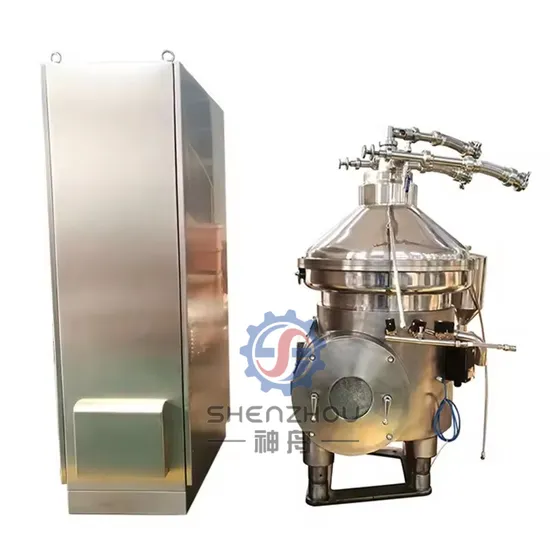

Disc Oil Separator Description:
The bowl rotates at a high speed around the main axis, driven by a motor through hydraulic coupling and screw gear pair. Liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. With the action of centrifugal force , heavy liquid flows along the inner wall of discs to the inner wall of the bowl, then it will be discharged by the heavy liquid pump, the light liquid will be discharged by the light liquid pump, which flows along the inner wall of discs into center pipe and then up to high liquid outlet,the larger solid phase particles left will sediment on the bowl's wall and then will be discharged by the sliding bowl through the sediment outlet.
Specification
Model | DHY/DHC 270 | DHY/DHC 400 | DHY/DHC 500 | DHY/DHC 530 |
Capacity(L/H) | 500-1500 | 1500-3000 | 3000-6000 | 5000-10000 |
Discharge time and Interval | Discharge time can be adjusted from 0.1-0.9 second,and discharge time interval can be adjusted from 1-240 minutes according to the raw meterial. |
Motor Speed(rpm) | 1460 | 1460 | 1460 | 1460 |
Motor Power(kw) | 4 | 7.5 | 15 | 22 |
Turn on time(min) | 5-8 | 5-8 | 5-8 | 5-8 |
Input pressure(mpa) | 0-0.1 | 0-0.1 | 0-0.1 | 0-0.1 |
Weight(kg) | 550 | 810 | 1680 | 2260 |
Features of Small capacity three phase disc centrifuge plant oil centrifuge 1.Machine starts the friction to start off, about six to ten minutes. the machine runs smoothly, low noise and vibration, the
installation path is very easy to operate.
2.The bearings use imported F-A-G, transducer using Japan brand, the main strengthen parts of Roller body and Roller cover
use 2Cr13,and the other parts of contacted materials such as Disc all use 304L.
3.The Stainless steel cover use SUS304.
4.The base use casting steel, coating does the same way as ship bottom. Details Images
Typical applications 1.Vegetable oil refining
Soybean oil, sunflower seed oil, cottonseed oil, peanut oil, corn germ oil;
Rice bran oil, sesame oil, liseed oil;
Coconut oil, palm oil,... 2.Beverage clarification
Fruit juice: tomato juice, apple juice, lemo juice, grape juice... Vegetable juice: Celery, cucumber, garlic,... Beer, wine, coffee, tea
3.Animal oil and Fats Fish oil Kitchen waste oil Hogwash oil
4.Biodiesel Separation of methyl ester, glycerin, catalyst, methanol Washing of methyl ester Extraction of fatty acid
5.Dairy industry Dairy clarification Dairy skimming
6.Fermentation industry Algae: spirulina chlorella, seaweed,... Yeast: beer yeast, baker's yeast,... Molasses, syrup,...
7.Plant extraction Tea Rutin Loquat Honeysuckle
8.Bio-Pharmaceutical Microbia concentration: colon bacillus, lactobacillus, bacillus,... Fementation broth clarification Medical protein Vaccine Enzyme: proteolytic enzyme, hydrolase, lipase, protease,... 9.Mineral oil Fuel oil, Lubricant Treatment of drilling slurry Water removal of crude oil Waste oil treatment
10.Chemical industry Boiler ash Phosphoric acid, lye Fuel and paint Industry salt
