10kw 100kw 200kw 300kw 500kw 600kw 700kw 1000kw 1.5MW Power Electricity Oil Field Associated Gas Generator/Natural Gas Generator

Product Description

10kw 100kw 200kw 300kw 500kw 600kw 700kw 1000kw 1.5MW Power Electricity Oil Field Associated Gas Generator/Natural Gas Generator
Generator Supply Scope:
1. Brand new Lvhuan oil field associated gas generator
2. Brand new Siemens AC atlernator, Ratings: 400/230V, 3Ph, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
3. Radiator with engine driven fan mounted on skid.
4. Deepsea,Comap,Harsen,Smartgen Set mounted control panel
5. Anti-vibration mountings as to ensure the compete genset running under stablilization.
6. 24V DC Electric start system and engine driven battery charger, lead-acid type starting batteries
7. Industrial silencers with flexible connects and elbow
8. Base fuel tank, with fuel gauge integrated in the base frame of generating set
9. Test report of generator, Set of drawings and O&M manuals
10.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose Engine
Product Parameters

Model Number	LHBG/LHNG 10-1100
Continious output power	8KW-1000KW
Instantaneous output power(max)	10-1100KW
Rated Speed	1800/1500/1000/1200rpm
Rated Frequency	50/60 Hz
Rated Voltage	400/230V(applied to 110V/220V/240V/380V/440V/480V)
Connect method	AC 3 phase 4 wire
Starting system	24V DC electric motor
Cooling method	open/closed water cooling
Lubricant method	pressure and splash
Isolation class	H
Protection	IP23
Standard	JB/T9583.1-99
Exciting method	Brush less
Voltage Stability	≤±2%
Voltage Transient	≤±10%
Voltage Stable time	≤1 s

Specs of Engine

Engine Capacity	1.81-71.45L
Cylinder Number/ Diameter/ Stroke	2-12pcs /100-190mm/115-210mm
Gas mixing type	outside of cylinder
MIXER	IMPCO
Gas heat consumption	≤9.8-11.63mj/kw.h
Oil consumption	≤1.63g/kw.h

oil field associated gas generator Description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.

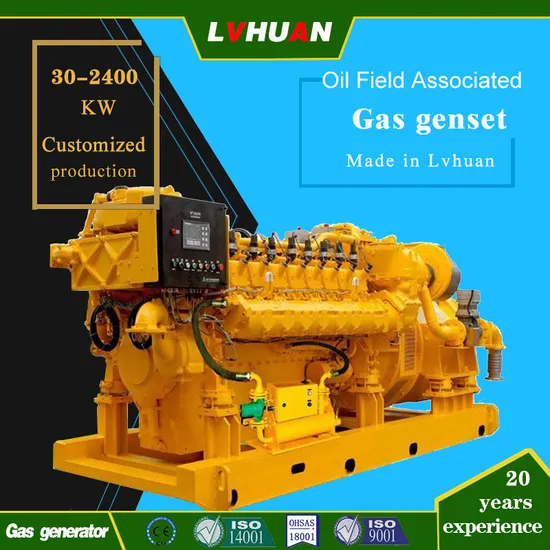

Generator Set photos:
FAQ 1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
Our Services: 1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A.Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
B.For the quality problem, we will service for you free of charge during the guarantee period.
C.One year guarantee period and lifetime service.
D.we solve quality problem in time when genset doesn't work,We insure to help our clients to gain
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
