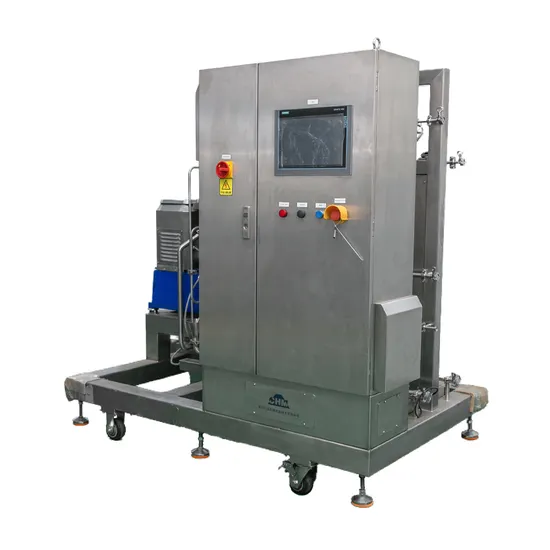

Customizable Yellow Green Orange Centrifugal Separator Refinery Equipment

Customizable Yellow Green Orange Centrifugal Separator Refinery Equipment

US$138,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DQBS220
Type
Centrifuge
Object
Biological
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Vertical
Centrifuge Type
Disc Centrifuge
Distillation Equipment Type
Steam Distillation Equipment
Extraction Tower Type
Vibration Plate Tower
Pressure
Medium Pressure
Condition
New
Color
Blue, Green, Orange, Yellow, Customizable
Certificate
ISO9001
Motor Power
50 Hz 15 Kw
Machine Weight (Empty)
1250kg
Overall Dimensions
1400*1200*1420mm
Treatment Capacity
1~2 Ton Per Hour
Transport Package
Wooden Export Package
Specification
depend on model
Trademark
CHM
Origin
China
HS Code
8421919090

Product Description

Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd (CHM) CHM is a leading company specializing in the development, testing, manufacturing, sales, and after-sales service of disc separators. With over 30 years of experience, our team of experts can tailor separation solutions for customers in the pharmaceutical, biomedicine, and biochemical industries. We offer timely and efficient preventive maintenance, troubleshooting, repair, machine refurbishment, and upgrade services to ensure optimal performance of our products.
Product Description The Separator from Changzhou Qianmai Mechanical Equipment Technology Co., Ltd operates on the principle of separating multiple phase materials with different densities in a suspended liquid. By rapidly rotating the disc stack, a powerful centrifugal force is generated, allowing for efficient separation of materials in a short time.
Features:
Utilizes centrifugal force for quick and effective separation
Great G force and equivalent sedimentation area
Suitable for separating differential phase materials
Benefits:
Efficient separation process
Short processing time
Highly effective in separating materials with different densities

Disc Separator by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator Our disc separator, provided by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd, offers numerous advantages over traditional methods:
No filter media consumption, eliminating secondary pollution
Continuous and stable operation
Fast processing speed
Effective treatment
Low energy consumption
Moderate capacity
SIP and CIP functions
Small footprint
Low operating cost
High automation, reliable operation, low labor intensity
Check out the Disc Separator separation module system diagram for more details.
Product Description
Product Description
Separator for Efficient Liquid/Solid Separation Our separator, designed by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd, is highly efficient in separating liquid/liquid/solid three-phase and liquid/solid two-phase materials.
Key Features:
Separates non-emulsified liquid particles as small as 2μm
Efficiently separates solid particles, including cell debris, of 0.5 microns or smaller (density above 1.02g/ml)

Benefits:
Enhanced separation efficiency
Precise separation of fine particles
Optimal performance in various liquid/solid separation processes

Cell Collection Equipment for Fermentation Industry Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
DFBS and DQBS Series Separation Equipment Cell collection is essential in producing fermented drugs. The choice of separation equipment impacts product quality, yield, and processing costs. Our DFBS and DQBS series models are tailored for the biological fermentation industry, meeting GMP and CIP/SIP requirements.
Key Features:
High separation G force up to 14500G for efficiency and stability
Customizable design options, including single or modular separators
Typical Applications:
Concentration and clarification of fermented mash (e.g., escherichia coli, bacillus, probiotics)
Extraction of vitamins, antibiotics, hormones
Collection of microbial cells
Separation and concentration of yeast
Extraction in genetic engineering, Chinese medicine, pharmaceuticals
Trust Changzhou Qianmai for reliable separation technology in the fermentation industry.
Product Parameters

Model

Treatment Capacity
(L/H)
Motor Power
(KW)

Inlet Pressure
(MPa)
Outlet Pressure
(MPa)
Weight
(KG)

Overall Dimensions
(mm)
DFBS260 200-500 2.2 0.05-0.1 ≤0.3 260 620*510*1400
DQBS260 700-1500 3 0.05-0.1 ≤0.3 280 620*510*1400
DQBS350 1200-2500 5.5 0.05-0.1 ≤0.4 450 620*510*1200
DFBS410 2000-4000 11 0.05-0.1 ≤0.4 1250 1600*1200*1500
DQBS470 3000-6000 22 0.05-0.1 ≤0.4 1670 1850*1550*1800
DFBS550 2000-4000 22 0.05-0.1 ≤0.4 2100 1980*1610*1950

Company Profile
Packaging & Shipping
FAQ
Discover our Efficient Biological Fermentation Mash Separator by Changzhou Qianmai. ISO9001 Certified for quality separation in alcohol distillation and more.
Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd Are you in need of reliable mechanical equipment solutions? Look no further than us! With over 30 years of experience, we offer customizable products and services tailored to your specific requirements.
Key Features:
Expert team with over 30 years of experience
Customizable products and services
One-stop service from research to upgrade
24/7 online after-sales support
Visit Us: If you wish to visit our factory, we can assist with directions or arrange transportation from Changzhou airport or train station. For virtual tours, we offer video conference calls to showcase our facilities.
Payment and Delivery: We accept T/T payments with flexible terms for both new and regular customers. Our delivery terms include EXW, FOB, CFR, CIF, DDU, tailored to your purchase order. Delivery times vary based on product types and quantities, with expedited options available for urgent needs.
Warranty and Support: All our equipment comes with a standard 1-year warranty, with additional instructions for special circumstances. In case of damaged parts or malfunctions, our experienced after-sales team is available 24/7 to provide technical support, troubleshooting, and spare parts replacement within the warranty period.
Contact Us: Reach out today to explore our innovative solutions for your mechanical equipment needs!
Application Model Treatment Capacity Motor Power Inlet Pressure Outlet Pressure Weight Overall Dimensions
(L/H) (KW) (MPa) (MPa) (KG) (mm)
Animal Fat/Plant Oil DQRE260 700-1500 3 0.05-0.1 ≤0.3 280 620*500*1100
DQBE260 1000-2000 3 0.05-0.1 ≤0.4 280 620*510*1200
DFBE350 1200-2500 5.5 0.05-0.1 ≤0.4 450 620*510*1200
DFHE450 3000-4000 11 0.05-0.1 ≤0.4 1450 1850*1550*1800
DFHE610 6000-10000 22 0.05-0.1 ≤0.4 2180 1980*1610*1950
Food/Beverage/Dairy DQRP260 200-500 2.2 0.05-0.1 ≤0.3 260 620*510*1400
DQHN260 700-1500 3 0.05-0.1 ≤0.3 260 620*510*1400
DQBP350 1200-2000 5.5 0.05-0.1 ≤0.4 450 620*510*1200
DQBN380 2000-3500 7.5 0.05-0.1 ≤0.4 1250 1600*1200*1500
DQBN410 2000-4000 11 0.05-0.1 ≤0.4 1250 1600*1200*1500
DQHP510 3000-5000 15 0.05-0.1 ≤0.4 1670 1850*1550*1800
DFHP610 6000-10000 22 0.05-0.1 ≤0.4 2100 1980*1610*1950
Biological Fermentation DFBS260 200-500 2.2 0.05-0.1 ≤0.3 260 620*510*1400
DFBS260 700-1500 3 0.05-0.1 ≤0.3 280 620*510*1400
DFBS350 1200-2500 5.5 0.05-0.1 ≤0.4 450 620*510*1200
DFBS410 2000-4000 11 0.05-0.1 ≤0.4 1250 1600*1200*1500
DFBS510 3000-5000 15 0.05-0.1 ≤0.4 1670 1850*1550*1800
DFBS610 6000-10000 22 0.05-0.1 ≤0.4 2100 1980*1610*1950
Industrial Waste Liquid DFBY200 200-1000 0.37 0.05-0.1 ≤0.3 80 500*600*1200
DFBY260 700-1500 3 0.05-0.1 ≤0.3 260 620*510*1400
DFBY260 1000-2000 3 0.05-0.1 ≤0.4 280 620*510*1200
DFBY350 2000-3000 5.5 0.05-0.1 ≤0.4 450 620*510*1200
DFBY410 3000-4000 11 0.05-0.1 ≤0.4 1600 1850*1550*1800
Chemical Liquid
Coal Tar
Marine/Mineral Oil
DFBY510 3000-5000 15 0.05-0.1 ≤0.4 1670 1850*1550*1800
DFHY610 6000-10000 22 0.05-0.1 ≤0.4 2100 1980*1610*1950
