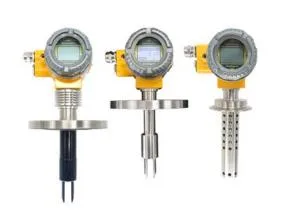

Vibrating Type 4-20mA 316L OEM High Accuracy Explosion Proof Tuning Fork Density Meter

Product Description

Product Description
1. The plug-in density meter adopts plug-in installation and is widely used in pipelines.
The density of medium in open tanks and closed tanks is directly determined by the vibration frequency received by the tuning fork of the sensor inserted into the medium. The built-in temperature sensor of the sensor provides temperature compensation for it.
2. Scope of application: The plug-in density meter can perform density detection online in real time. It can be used for process control of products with density as the basic parameter or quality control with solid percentage or concentration percentage as a reference. Typical industries include petrochemical industry, wine industry, food industry,
pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), which are specifically used in the interface detection and mixing of multi-product pipelines in the above industries The density detection, the end-point monitoring of the reactor, and the interface detection of the separator. The sensor works based on the principle of component vibration, and the component part is the part of the tuning fork immersed in the measured liquid. The tuning fork part induces vibration through an internal piezoelectric device fixed at the bottom end of the fork body. The oscillation frequency is detected by
a secondary piezoelectric device fixed at the other end of the fork body, and then the signal is amplified by the circuit on the top. The density of the liquid is closely related to the vibration frequency when the measured liquid flows. When the density of the measured liquid changes, the vibration frequency when the liquid flows also changes. Product Parameters

Measuring range	0 - 2.5 g /cc (0 - 2500 kg/m3),0~100.0%
Calibration range	0 - 2.5 g /cc (0 - 2500 kg/m3),0~100.0%
Measurement accuracy	± 0.001 g /cc (± 1 kg/m3) ,±0.5%
Repeatability	± 0.001 g /cc (± 0.1 kg/m3) ±0.1%
Operating temperature range	-50ºC ~ +150ºC
Maximum working pressure	4Mpa
Fluid viscosity range	0 - 2000 cP
Temperature coefficient	Less than 0.1 kg/m3/ºC (± 0.5%) after correction
Pressure influence	Negligible
Built-in temperature sensor	Digital sensor, PT100 temperature compensation
Liquid receiving material	316L, 2205, 2507 stainless steel, HaC, titanium, zirconium, PTFE/PFA
Fork coating	Standard PTFE or PFA
Power supply	24VDC,≥50 mA
Analog signal output	4 -20 mA,0-1000Hz,RS485 Modbus RTU HART
Output accuracy (20 ºC)	± 0.1% or ± 0.05% FS of reading
Outputrepeatability(-40~+85 ºC)	± 0.05% FS
Process connection	DN50 flange G1.5 inch thread, 3 inch chuck
	Non standard customization
Protection grade	IP66
Housing	Aluminum alloy
