US$86,700.00-97,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Application
Paper Packaging Materials
Transport Package
40hq Container
Specification
7000*4000*2245
Production Capacity
100sets/Year
Product Description
Product Description
Product description Speed:
The machine adopts frequency controller to achieve stepless speed acceleration which can reach to 5000 times per hour. During actual production, it can generally run at 3600 to 4200 times per hour according to the quality of the board. If the quality of the paper is good, a good operator even can operate the machine at highest speed.
Safety:

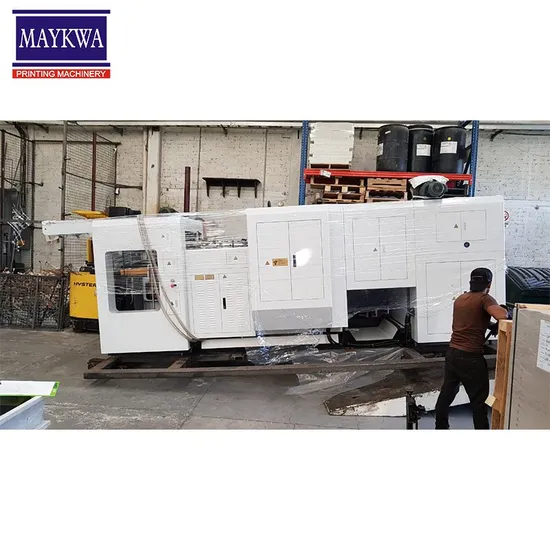

As it is shown in the picture of the machine, the machine adopts automatic paper feeding method which keeps the operator away from the die-cutting part. The mounting and adjustment of the die plate is also done outside of the die-cutting part with sensors and detectors at die-cutting part to ensure that the machine can not be started when the die-cutting plate is at adjustment status.
Besides the sensors at die-cutting part, there are sensor or approach switches at window part to make the whole machine at monitoring status to ensure its safety.
Operation convenience:
There is Man-machine interface installed in the control panel which will shows the safety status of the machine as well as malfunctions to facilitate the operator. Camera is also installed in front of the operator for him/her to monitor the operation status at the delivery part.
Model | DIS-1200P | DIS-1300P | DIS-1500P |
Max. Paper Size | 1200*780mm | 1300X960mm | 1500X1100mm |
Min. Paper Size | 350*350mm | 400X410mm | 500X440mm |
Max. Die-cutting Size | 1180*760mm | 1280X940mm | 1480X1080mm |
Max. Speed | 5000sheets | 4600sheets | 4500sheets |
Max. Working Pressure | 300T | 300T | 300T |
Max. Paper Thickness | 7mm | 7mm | 7mm |
Die-cutting Precision | ±0.5mm | ±0.5mm | ±0.5mm |
Total Power | 27kw | 27kw | 27.5kw |
Total Weight | 13500kg | 15000kg | 18000kg |
Overall Dimension | 7000*4000*2245mm | 7750X4100X2245mm | 8000X4600X2245mm |
More products Company Profile
MAY KWA PRINTING MACHINERY CO.,LTD is committed to the research and development, design, manufacturing, sales and servicethe for post-print machines, corrugated box making machines and paper processing equipments as one of the professional equipment suppliers.
The company currently has 4 major business segments. Post-Printing Equipment: window patching machine, die cutting machine, laminating machine, spot UV varnishing machine, folding gluing machine, etc.; Corrugated Box Equipment: corrugated board making production line, flexo folder gluer, gluing machine, stitcher, high-speed single tile (2-layer) production line, etc.; Paper Converting Equipment: A4 web slitting and packaging production line, single/double helix roll paper cutting machine, paper cutter, and waste paper recycling baling machine. Due to the trust of our customers, we have also ventured into food packaging machines, such as paper cup machine, hamburger box sticker machine, food box machine. We are constantly striving to better meet the needs of our customers, and through continuous research and development, product improvement and excellent after-sales service, we have successfully explored many international markets. MAY KWA MACHINERY's products are exported to Europe, America, Middle East, Africa, and Latin America, etc., and have been widely praised by new and old customers.
Our factory Our services Packing and shipping FAQ
Q1. When was your company established?
We were established in 2006. Since 2006 we have sold our machines to Europe, South East Asia, Austrialia, New Zeland,South America and Latin America.
Q2.What about the payment terms?
By T/T 30%deposit in advance,and 70%balance should be paid before delivery(T/T) OR by irrevocable L/C at sight.
Q3.What's the scope of the machine application?
Our machines are mainly used for corrugated carton packaging, as well as printed box packaging.
Q4.Where can be visited your corrugators in Latin America?
At present, our machinery is mainly focused on sales to South America and Latin American countries. We have a showroom in Mexico City, where you can see box gluers, window stickers, die-cutting stripping machine, die-cutting and hot stamping machines, and guillontine paper cutting machines. In Leon, we have a 5-layer corrugated board production line and a 4-colour printing and slotting die-cutting machine.
In addition, in Latin America, such as Argentina, Chile and Colombia, you can see the complete set of corrugated cardboard and carton box manufacturing machines.
Q5.What about the after-sale services?
The waranty period will be one year.During the one year waranty for any part is fauty,we will provide you replacements for free of charge and help you to change the faulty parts.When the waranty expied, we will continuoulsy provide you technician support for free of charge. We could even provide you sppare parts to be paid after the delivery when you need to buy urgently.
Q6.Which do you have overseas agents?
We have agents and technicians in Argentina. They serve for Argentinn clients and even the whole of Latin America.
