Breeder Pan Feeding System Equipments for Poultry Farms

Breeder Pan Feeding System Equipments for Poultry Farms

US$2,000.00
1 Set
US$1,000.00
2+ Sets

Basic Info.

Model NO.
ubt-20
Usage
Chicken Raising Equipment
Application
Chicken
Power Source
Electric
Heating and Ventilation Equipment Type
Heater
Epidemic Prevention Equipment
Fogging Machine
Blade Type
No
Computerized
Computerized
Certification
ISO9001:2008, CE, Soncap
Condition
New
Warranty
1.5 Year
Silo Capacity
3-30 Ton

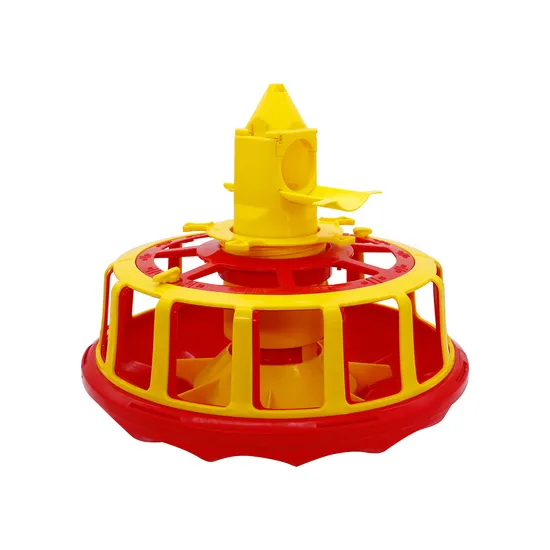

Female Chicken Feeder
14 Grid Feed Pan, New PP Material
Male Feeder
3 Grid Feed Pan, New PP Material
Chicken Drinker
Nipple Drinking System
Ventilation Fan
24"/36"/50" Exhaust Fan
Cooling Pad
Brown Color/Black Color/Red Color, etc
Heater
Gas/Diesel/Coal
Environment Controller
Agrologic T304D/607/616/Vision 24s/Image II
Feeder Chain
From South Africa
Capacity
5.5 Breeders Per M2
Transport Package
in Standard Package
Specification
138mx16m100mx18m. etc
Trademark
U-BEST
Origin
Shandong, China
HS Code
8436290000
Production Capacity
5000 Sets Per Month

Product Description

Breeder Pan Feeding System Equipments for Poultry Farms
-Breeder farm equipment Product Description
Section-1
Breeder Female Feeding Line include two model:
1) Breeder pan feeding for femal includes Drive Motor, Feed Trough, Chain/auger, Femal Feeder Pan, Hopper, Suspension system and other necessary parts.
2) Breeder chain feeding for femal includes Drive Motor, Feed Trough, Chain, Hopper, Corner and other necessary parts.
3) Auger pan feeding system for male, it includes feed pipe, auger, motor, hopper, suspension system and other necessary parts.
U-BEST select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically. And the chain is from the world top chain supplier Technical System. Feeder could be used from day one, and feeder designed with the maximum feed bearing capacity to supply more birds, meet different growing stage of female. The whole line design aim to get the best FCR.
Section-2
Feed Storage and Feed Fill System include the feed silo, flexible feed delivery auger, PVC feed delivery pipe, drive motor and other necessary parts. It's benifit with simple, high quality and efficiency.
Feed Fill System 75mm 90mm
Max Delivery Length 60m 40m
Gear Motor 1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES 1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES
Delivery Capacity 1400KGS/H 2500KGS/H

Section-3
Nipple Drinking system Includes water pipe, regulator, nipple drinker, drip cup, suspension line, front component, midcator and others.
Section-4Climate Control System Include the tunnel fans, air inlet, cooling pad & tunnel door.
1-Tunnel Fans
Performance
Fan Model Static Pressure Air Flow Motor
Pa In.H2O M3/H CFM Voltage(V) Frequency(HZ) Phases
54in Fiberglass Cone Fan 0 0 55000 32600 220v-380v 50/60 1 or 3
12.5 0.05 53100 31300 220v-380v 50/60 1 or 3
25 0.1 50800 29900 220v-380v 50/60 1 or 3
50in Galvanized Cone Fan 0 0 49530 28465 220v-380v 50/60 1 or 3
12.5 0.05 40194 23100 220v-380v 50/60 1 or 3
25 0.1 37236 21400 220v-380v 50/60 1 or 3


2-Curved Air Inlet
Performance
Static Pressure Air Flow Air Inlet
Pa In. H2O M3/H CFM Size(mm)
12 0.05 4050 2383 1100*330
25 0.1 1980 1165 1100*330

3-Evaporative Cooling System
4-Tunnel Door System
a-Special selects panel material for better insulation in different climate conditions
b-Modular panel design allows maximum flexibility in door size to match house sidewall openings
c-Better mixing the fresh cold air and hot air prevent the chicken flock away from the cold stress.
d-No more dead zone at side and end walls
e-Better guide the air flow to the center of the roof
f-Automatic controlled the opening size by the controller in different bird age.
Section-5
Controller & Control Panel The ventilation control system consists of computerized controller, tempreture sensors, humidity sensors, negtive pressure sensor and alarm system.By means of the sensors and preset tempreturers, humidity, and negative pressure, the controller can regulate tempratures, moisture, wind speed and negative pressure in the house.
Hi-hope control panel select the world top brand electronic components Schneider, siemens & ABB to enure safety of the chicken farm.
Part-6 Lighting System-Dimmable
Part-7
Heating system-Damly Brooder and space heater
Part-8
Automatict egg collection system & Manual egg collection nest Galvanized material for egg nest. Part-9
Plastic slat for femal area We choose raw material with high quality and long service life.
Company Profile
Weifang U-Best Husbandry Equipment Company information:
U-best offers a wide range of products with targeted designs according to clients' requirements in
order to satisfy different environmental conditions. U-best will always be producing the state-of-the-art facilities, compounding with professional after-sale service to show all of the world.
Complete broiler poultry equipment also can be provided by us:
1.Main feeding line system
2.Automatic pan feeding line system
3.Automatic nipple drinking line system
4.Ventilation system
5.Cooling pad system
6.Environment control system
7.Heater system
U-BEST breeder farm equipment warranty:
1. All plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips ,
air inlet 15 years
2. Nipples : 10 years
3.The accesorries such as the bolts ,nuts ,pulley ,water winch ,rope clips are stainless steel
4. Feed motors from Italy brand Transtechno
5. Auger from South Africa technical system
6. Feed sensor from Germany
7. Control box :Schneider brand
U-BEST could offer you one stop service include:
1-Farm Design Consulting
2-Farm Layout/Design
3-Turnkey Design-Build
4-Steel Building Packages
5-Poultry Equipment Packages
6-Construction Supervision
7-Construction Management Service (for Philippines and Indonesia Market)
8-Bio Security Facilities
9-Organic Fertilizer/Chicken Manure Treatment
10-Feed Processing Facilities & Buildings
For More Details, Welcome to send inquiry.Thanks!
