Silian Stainless Steel 2ool Horizontal Eyeshadow Mix Powder Machine Powder Mixture Stirringmachine

Product Description

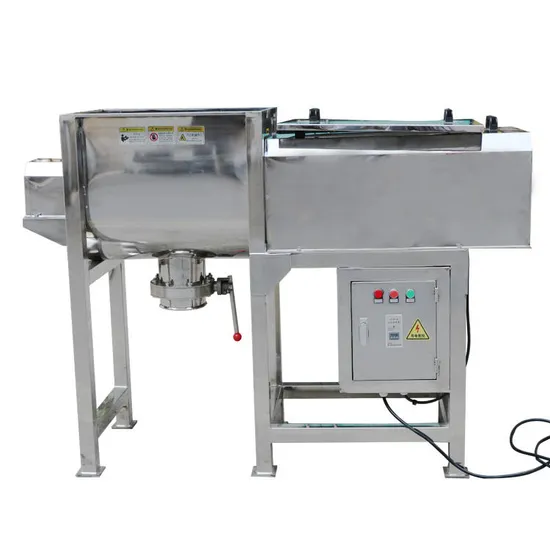

Products Description Horizontal Chemical Powder Mixer This machine is mainly used in pharma industry for mixing dry or wet powdered materials. This machine is also used in chemical and food industries. It does not dissolve materials, volatile or deteriorate when mixing. It is especially suitable for small batch of testing, not entirely suitable for mixing semi solid or sticky materials of mass batch. Detail picture Hopper/stirring paddle Trough type single slurry mixer, mainly used for the production of different ratios of dry or wet powder uniform mixing, and in the mixing process does not produce material melting, volatilization or metamorphism Discharge opening There is no material accumulation or dead Angle in the mixing process. Manual or pneumatic discharge port can be made according to customer requirements. Control Panel Equipped with an emergency stop button, can be customized frequency conversion speed control mixing,time and other functions Technical Parameter

model	SLCH-100L	SLCH-200L	SLCH-300L	SLCH-500L
Power type	electric	electric	electric	electric
How the container moves	Rotary container type	Rotary container type	Rotary container type	Rotary container type
motor power	2.2KW	4KW	5.5KW	7.5KW
Electric output power	0.55KW	0.75KW	0.75KW	1.5KW
Processing range	About 20-50KG	About 50-100KG	About 80-150KG	About 150-300KG
Feeding method (electric)	Tilting	Tilting	TiltingTilting	Tilting
stirring speed	24r/min	24r/min	24r/min			24r/min
(l*W*H)Dimension	1670*500*750	2000*650*1000	2010*650*1200			2500*800*1350
Machine weight(KG)	220	450	550			800

Working principle
The working principle of the trough mixer is to achieve uniform mixing by the intense stirring and mixing of materials in the trough body through the rotational motion the stirring blades. The trough mixer is a common industrial equipment, mainly used for mixing and stirring various powdery or granular materials. Its structure usually includes a body and one or more stirring shafts, with stirring blades installed on the stirring shafts. When working, the motor drives the stirring shaft to rotate through the transmission, and the stirring blades rotate accordingly, so that the materials in the trough body are constantly stirred and mixed.
Scope of application: 1--Food, medicine, pharmaceutical intermediates, a variety of raw materials dry powder mixing 2--Chemical powder, liquid mixing 3---Food, seasoning, flavoring and other seasonings mixed 4---Pharmaceutical plant production tablets and national institutional agent of the former process of mixing 5---Sugar, coffee, cocoa powder, cream, powder juice, amino acids, seasonings, puffed food. Machine features: 1--Good dispersion: equipment completely solves the problem of high uniformity and dead ends caused by different weight of materials. 2--Wide range of use: the device can meet the different performance requirements of the production. 3--Small investment: the device has a clear price advantage. Small investment, quick results. 4--Simple and convenient use: the equipment has a small footprint, simple operation, low energy consumption. 5--Long service life: the equipment fragile parts of the use of high - strength wear steel as a component. It has the characteristics of long service life. Recommended by seller SiLian Powder Sifter Stirring Motor Vibration Cosmetic Powder Sieving Machine $700.00-718.00 / set 1 set Three Shaft High Speed Powder Mixer Powder Powder Mixing for Cosmetic $5,630.00 / set 1 set SiLian Factory Face Powder Eye Shadow Brusher Cosmetic Brusher Compacting Machine Cosmetic Production Equipment $3,380.00-3,580.00 / set 1 set FAQ Q1. How About the Installation & Adjustment? After the equipment arrived at the customer's site, customers just need connect the machine with eletricity and air compressor,then the machine can run it,as we will shipping the machine with whole packed,customers no need to install the machine again when it arrived your factory.you can use or hire a forklift for unload the machine from the car. Q2. Are There Training for Customers or our ? We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.otherwise,we supply with Instructions in English language for each machine. Q3. How about the "Quality Assurance"? We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. Each machine will be test and factory pre-adjust according to our customers real samples.we can take video for our customers to check before shipping, to make sure the machine quality and customers satisfaction. Q4.How about the Warranty? We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
