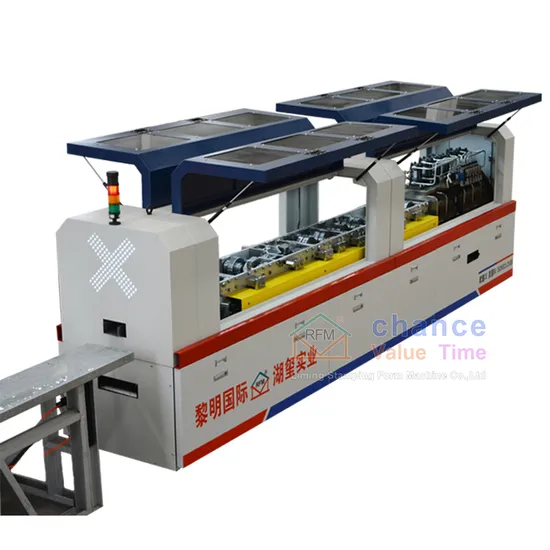

Strength Factory Custom Light Gauge Steel Machine for House Integrated House Construction

Strength Factory Custom Light Gauge Steel Machine for House Integrated House Construction

US$45,000.00-55,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LM-LGS020
Certification
CE, RoHS, GS, ISO9001
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Drive
Hydraulic
Product Name
Drywall Profile C U Channel Roll Forming Machine
Feeding Width
Customers Requirement
Raw Material
Steel Coil Gi PPGI
Roller Material
High Grade 45# Steel
Shaft Material
SKD-11
Control System
PLC(Imported Brand)
Cutting Blade Material
Cr12 Quenched
Cutting Type
Automatic Hydraulic Cutting
Machine Structure
Vertical Memorial Frame
Number of Rollers
10 Rollers
Specification
5000*1800*1200mm
Trademark
RFM
Origin
China
Production Capacity
50set/1year

Packaging & Delivery

Package Size
300.00cm * 100.00cm * 120.00cm
Package Gross Weight
7000.000kg

Product Description

Using professional-grade industrial computer CNC automatic control, it has the characteristics of wide
application range,high product precision, high degree of automation, material saving, and high degree of automation.
It is designed according to the customer's requirements for continuous innovation and structural form of
prefabricated buildings in the current market. Manufacture special roll forming machine equipment with special requirements.
Advanced Features:
* Reduce the material waste
* Speed can reach 50m/min
* Prevent material scratch
* Easy to adjust the material width
* PLC Touch Screen Control allows easy condition setting
* With air cooling, can be applied to the vast majority of countries and regions
Profile Size 60mm--200mm
Material Thickness 0.6-1.5 mm (G300-G550 zinc plated, aluminumzinc plated)
Material Width 182-183 mm
Maximum Line Velocity 2880 m/h
General Production Efficiency 300-700 m/h
Main Unit Power 7.5 kw
Voltage 380V, 50Hz, 3 phase (can be customized)
Hydraulic Power 5.5 kw
Equipment Total Power 16.7 kw
Hydraulic Cylindar Volumn 120 L
Adjustment of Oil Pressure Computer Setting
Main Unit Remote Control Standard
Punching Dies Dimple hole, chamfer cut, web noth, lip cut, service hole, swage, shear, bolt hole
Product Accuracy 0.5 mm
Inkjet Printer Standard
Machine Weight 5000 kgs
Machine Color Customer Demand
Decoiler Load 2000 kgs, auto decoiling, 3.7 kw

After Sales Service
Company Profile
FAQ
Q: Can you customize the machine from your company?
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and
packaging.The quality control department is responsible for the quality of each process
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully
meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year warranty and
parts replacement.
