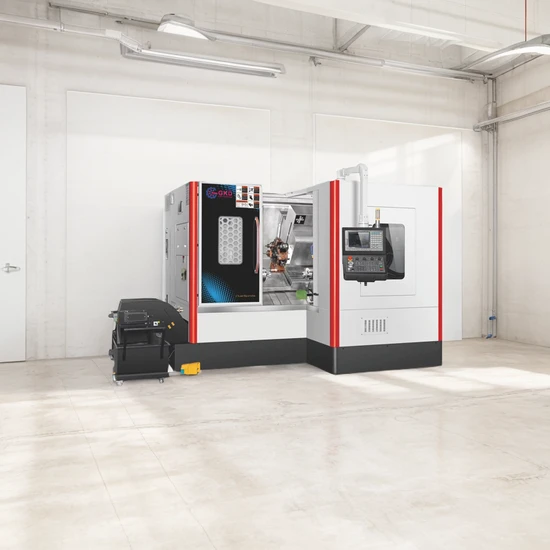

High Precision CNC Turning Lathe with Dual Spindles and Speed Control

High Precision CNC Turning Lathe with Dual Spindles and Speed Control

US$157,668.00-161,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
LM10SY-III
Type
Multi-Axis Automatic and Semi-Automatic Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Dual Spindles CNC Turning Lathe Center
Number of Axis
10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+Td+D2)
Main Spindle Speed
0-4500rpm
Sub-Spindle Speed
0-5000rpm
Main Spindle Nose
A2-6
Sub-Spindle Nose
A2-5
Main Spindle Power
11kw
Sub-Spindle Power
11kw
Tool Turret Position
12PCS
Living Tools Milling Speed
0-4000rpm
Machine Size
2600*2500*2500mm
Machine Weight
5800kg
Z1/Z2 Axis Travel
540mm/330mm
X1/Y1/Z1/Z2 Axis Rapid Speed
25m/Min
Turret Model
Bmt55
Transport Package
Wooded Pallet
Specification
2600*2200*2250mm
Trademark
GKD
Origin
China
HS Code
8457101000
Production Capacity
50PCS/Month

Product Description

Unveiling the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center, a masterstroke of engineering ingenuity crafted to revolutionize precision and elevate productivity in your machining endeavors. Experience the zenith of technological advancement with a tool that promises to redefine what is possible in your operational processes. Step into the future of manufacturing with CNC (Computer Numerical Control) turning lathes. These marvels of modern engineering have revolutionized manufacturing landscapes by delivering unmatched precision and extraordinary efficiency to the production process. Designed to execute a vast array of operations—such as drilling, tapping, turning, and boring—with unrivaled accuracy, these sophisticated machines are pivotal in creating detailed, high-precision components. They are indispensable across a multitude of industries, including automotive, aerospace, medical, and electronics, fulfilling the rigorous requirements of today’s cutting-edge technological applications.
In this in-depth article, we explore the complex components that constitute a CNC turning lathe, demystifying its advanced working principles and examining its wide-ranging applications across various pioneering industries. Embark on a journey to understand how this sophisticated machinery is at the heart of innovation.
Product Parameters
Model LM-10SY-III
Double spindle/Double power turrets
Number of axis 10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+TD+D2)
Max turning diameter on the bed Ф450mm
Max processing length 400mm
Max processing diameter Ф300mm
Main spindle nose ANSI A2-6
Main spindle hole Ф82mm
Bar hole diameter Ф70mm
Main spindle speed 1-4500rpm
Main spindle Chuck size 8"(Hydraulic chuck)
Sub-spindle nose ANSI A2-4/A2-5
Sub-spindle hole Ф46mm
Bar hole diameter Ф36mm
Sub-spindle speed 1-5000rpm
Sub-spindle chuck size 6"(Hydraulic chuck)
Main Spindle power 11KW
Sub-spindle power 11KW
X1/X2 axis power 3.1KW
Y1/Y2 axis power 3.1KW
Z1/Z2 axis power 3.1KW
TD axis power(milling axis) 3.1KW
D2 Axis 2.4KW
Hydraulic pump motor power 2.2KW
Cooling pump motor power 1.5KW
Tool turret position 12pcs
Turret model BMT55
Turret Outer diameter shank 25mm
Turret Inside diameter shank(Boring tool) Ф32mm
Slider Outer diameter shank 20mm
Slider Inside diameter shank Ф20mm
TD axis live tools milling speed 0-4000rpm
End milling tool specification 4*ER20
X1/X2/Y1/Y2/Z1/Z2 axis rapid speed 25m/min
X1/X2 axis travel 560mm/590mm
Y1/Y2 axis travel 150mm/150mm
Z1/Z2 axis travel 540mm/330mm
Spindle indexing repeat positioning accuracy ±0.005°
Spindle indexing positioning accuracy ±0.002°
X/Y/Z/Z1 axis repeatability position accuracy 0.003mm
X/Y/Z/Z1 axis position accuracy 0.002mm
Oil tank capacity 60L
Cooling tank capacity 95L
Machine weight 5800KG
Machine size 2600*2200*2250mm
Controller Syntec 200TB

Company Profile
For countless years, the esteemed GKD (Mingju) has passionately devoted itself to expertly harmonizing an abundance of resources, pioneering the forefront of cutting-edge technologies, and relentlessly striving to deliver unparalleled quality to our esteemed global clientele. Our commitment to excellence is unwavering, ensuring that every product we create is a testament to our dedication.
GKD, an illustrious conglomerate, is renowned for its excellence in the research, development, and manufacturing of premier CNC machining centers. Strategically nestled near the vibrant hub of Hong Kong, China—celebrated as the 'World Factory'—GKD proudly stands at the pinnacle of innovation. Complementing this is our esteemed European headquarters in Italy (Taiwan), establishing a robust, far-reaching global sales and service network. Our expansive enterprise boasts five prolific production bases located in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our flagship suite includes cutting-edge vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and a plethora of high-end CNC machine tools and production lines. We have ascended to become a paramount manufacturer in China, showcasing an extensive and comprehensive industrial chain of CNC metal cutting machine tools. Our exquisite products find applications across a diverse spectrum of sectors, including aerospace, mold manufacturing, automotive, energy, marine, engineering machinery, and 3C electronic products, thereby cementing our reputation as a trailblazer and leader in the manufacturing industry.
The GKD Group is unwavering in its mission to deliver premium products paired with all-encompassing solutions. We ardently embrace the tenets of high-speed, precision, and efficiency in intelligent equipment, offering exemplary solutions that resonate with the discerning needs of our clientele, ensuring unmatched cost-effectiveness. Boasting formidable manufacturing prowess and a robust after-sales service, GKD has extended an extensive portfolio of products and services to numerous countries and regions, earning a prestigious and commanding global footprint.
GKD Group is wholeheartedly devoted to serving you with sincerity and excellence! Our dedication ensures that you receive only the highest standard of service and product quality, reflecting our commitment to your satisfaction and success.
Our Advantages
1. Experience an unparalleled level of professional service in the realm of CNC machine exports, powered by our extensive and profound expertise.2. By integrating cutting-edge technologies from Italy and Taiwan, we offer extraordinary manufacturing capabilities that distinguish us from the rest.3. Select from a wide range of flexible payment options, including T/T, Western Union, L/C, and Paypal, meticulously designed to cater to your specific needs.4. Reap the rewards of our commitment to providing premium quality and safe materials at competitive prices, ensuring unmatched value for your investment.5. We welcome small order requests, enabling you to easily access our superior products and services without any hassle.6. Benefit from our swift response times, ensuring that your inquiries and needs are addressed promptly and efficiently.7. Our transportation methods emphasize safety and expedience, ensuring that your products reach you both swiftly and securely.8. We provide personalized OEM design services, entirely customizable to fulfill the distinctive demands of all our esteemed customers.
Certifications
Packaging & Shipping
After Sales Service
1) We proudly offer a quality warranty period of an exceptional 12 months, starting from the time your product docks at its designated port. Within this period, experience peace of mind with our commitment to providing essential components at no extra charge, unless physical damage is involved. For any replacements, kindly return damaged parts to us via courier at your expense, preceding the dispatch of new parts. Once the warranty period concludes, any necessary repairs or replacements will be managed by you, with a reasonable charge applied. 2) Considering the intricacies of on-site maintenance, we have established a robust and responsive online support system for your convenience. No matter if you’re in the phase of installation, operation, adjustment, or maintenance, you will benefit from our comprehensive technical support available via email, MSN/Skype, video calls, telephone, and fax. Our dedicated team is always on hand to swiftly address any challenges you might face.3) In the event that you encounter issues that exceed the capabilities of our online support during installation, use, or adjustment, we provide an exclusive Door-to-Door service. Our skilled engineers can be dispatched to your premises to assist with assembly, maintenance, or modifications. To facilitate this premium service, please aid with visa procedures, pre-pay travel costs, and arrange suitable accommodation. A translator should be available throughout their visit for seamless communication. Alternatively, you have the option to send your technician to our factory, where they can receive in-depth, complimentary technical training.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
