Big Factory Direct Sales Rubber Calender Series Rubber Machinery

Product Description

Product Description
The rubber calender is one of the basic equipment in the processing of rubber and plastic products, and the calender belongs to the heavy-duty high-precision machinery in the rubber and plastic machinery. The basic structure of the rubber calender is very similar to that of the plastic calender, and the working principle is basically the same. However, due to the fact that many rubber products are composite products containing cord and steel wire, the structure of the rubber calender is more complex, the scope of use is wider, and the types are more diverse. The rubber calender is mainly used for the pressing of rubber sheets, the coating of textiles or steel wire cord fabric, the bonding of rubber sheets, the pressing of rubber molds, and the bonding of isolation film for tire cord layers.In addition to the rollers and related components (such as the frame, roller spacing adjustment device, and transmission system) in the rubber calendering machine structure, there are also auxiliary devices for rubber calendering machines. The auxiliary devices for rubber calendering machines are used to assist in the processing of the forming materials (such as rubber compounds and fiber fabric) during calendering, so that the calendering machine can perform the calendering operation with better performance. These auxiliary devices are located near the calendering machine or are directly assembled on the calendering machine, and the configuration of these auxiliary devices varies depending on the calendering process and the level of calendering equipment. Some of the commonly used auxiliary devices for rubber calendering machines include blocking devices, edge trimming devices, cutting edge trimming devices, bubble marking devices, fabric expansion and edge expansion devices, and feeding devices.

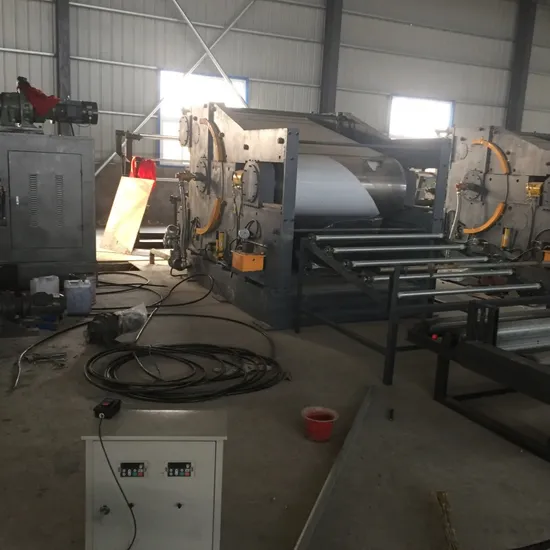

Detailed Photos
The calender mainly consists of a base, frame, rollers, speed ratio gears or universal joints, hard-toothed gear reducer, variable-frequency motor, variable-frequency drive, electric adjustable distance device, emergency safety brake device, built-in bearing device, cooling and heating device, and lubrication device with oil or grease. The roller rotation speed is adjusted by the variable-frequency drive to meet the requirements of rubber sheet production.
The rubber calendering machine is mainly used for rubber sheeting for rubber products factories such as shoe factories and ball factories, and can also be used for double-sided adhesive coating, single-sided adhesive coating, and wiping adhesive for rubber products factories. It can also be used for double-sided adhesive coating for steel wire cord. Its applications are very wide.Product Parameters

	XY-2φ252*720	XY-2φ360*1120	XY-2φ450*1500	XY-2φ550*1830	XY-2φ610*1730	XY-2φ710*2130	XY-2φ810*2430
Linear Speed of front rollers(m/min)	1.2~12	3~20.2	2.5~26	3~30	5.4~54	8~50	4~40
Speed ratio of front and rear roller	1:1	1:1	1:1	1:1	1:1	1:1	1:1
Max product width(mm)	580	920	1250	1600	1500	1850	2150
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor Power(kw)	15	37	45	75	90	110	160
Overall size L*W*H(mm)	3950*1110*1590	5400*1542*1681	7013*1595*2446	7200*1760*2760	5987*1860*2988	8150*3760*3630	8690*3139*4270
Weight(t)	~5	~11.5	~14	~24	~30	~49	~62

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.
