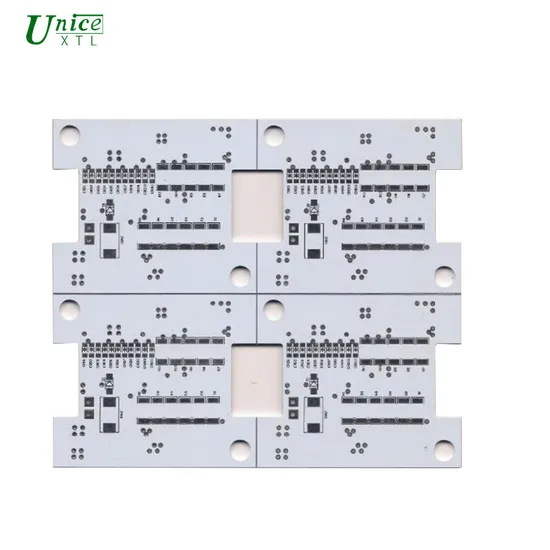

OEM Customized Rigid PCB / Aluminum PCB / Aluminum Printed Circuit Board

OEM Customized Rigid PCB / Aluminum PCB / Aluminum Printed Circuit Board

US$0.05-0.66 1 Piece (MOQ)

Basic Info.

Model NO.
PCB-A
Material
Fiberglass Epoxy
Application
Consumer Electronics
Flame Retardant Properties
V0
Mechanical Rigid
Rigid
Processing Technology
Electrolytic Foil
Base Material
Copper
Insulation Materials
Epoxy Resin
Certificate
ISO/Cqciatf/UL/RoHS/etc
Layer
1-20
Transport Package
Vacuum Package
Origin
China
HS Code
8517703000

Product Description

Product Description
We provide high-quality PCB (Printed Circuit Board) . We use advanced technology and reliable materials to ensure excellent performance and stability as well as meet the latest industry standards and requirements
We offer multi-layer PCB solutions suitable for various application areas such as communication, industrial control, automotive electronics, medical devices, and more. Our PCBs exhibit outstanding signal transmission and electrical characteristics, catering to complex circuit layouts and high-density interconnect requirements.
By choosing our PCB products, you will gain the perfect combination of reliability, quality, and technical support. Whether you require large-scale production or small-batch customization, we are dedicated to delivering top-notch PCB products and services
Technical Capability
Technical Capability
Item Capability
Base Material FR4,High TG FR4,Aluminum,Rogers ,CEM-3,CEM-1,Lead free, etc.
Layer 1~20
Board Thickness 0.3mm~3.5mm
Board Thickness Tolerance (>0.1mm) ±0.1mm
Finished Outer Copper Thickness H/H0Z-5/50Z
Finished Inner Copper Thickness H/H0Z-4/40Z
Min Board Size 8*8mm
Max Board Size 650*610mm
Min Line Width/Space 2.5/2.5mil
Min Hole Size 0.2mm
Hole Tolerance ±0.05mm
Solder Mask Green,Red, Blue,White,Black,Yellow, etc.
Surface Finish HASL, HASL lead free,OSP, Immersion gold/Tin/ Silver,ENIG,Gold-finger, etc.
Min S/M Bridge 3mil
Character Width (Min) 0.15mm
Character Height (Min) 0.85mm
Certificate ISO,CQC,IATF,UL,ROHS
Value-added Service Layout
Packing Vacuum package
Application Consumer electronics,Electric vehicle,Telecom devices,
Industrial machine,Power supply, LCD modules,Instrument,
Medical equipment,Education and development, etc.
Delivery Time
Delivery Time
Type Sample Mass production
2 Layers PCB 2~3 Days 7~8 Days
4 Layers PCB 5~6 Days 8~10 Days
6~8 Layers PCB 5~6 Days 8~10 Days
Over 8 Layers PCB 5~6 Days 8~10 Days
Special PCB 14 Days 14 Days
*The above is the regular delivery time,can be adjusted as urgent needs.
