Door Opening Apartment Home Security Kit Villa Multi-Unit Cat5 Multi-Apartment Video Intercom System
Basic Info.
Model NO.
Q514
Color
Silver
Voice Service
With Voice Service
Installation
Wall-Mounted
Certification
RoHS, FCC, CE
Protocal
2 Way SIP Protocal
Waterproof
IP65
Transport Package
Gift Box
Specification
1.2kg
Trademark
NiteRay
Origin
China
HS Code
8531809000
Production Capacity
50000PCS/Year
Product Description
Door Opening Apartment Home Security Kit Villa Multi-unit Cat5 Multi-apartment Video Intercom SystemWith large volume, can be easily configured for: bank, schools, apartment, cities, parking station, building entrance, etc. (even without server/PBX), waterproof design outer case also a good security smart device for many scene uses.
NiteRay's Q514 professional solution for SIP video intercom, Broadcast, Paging, Door Phone
With large volume, can be easily configured for: bank, schools, apartment, cities, parking station, building entrance, etc. (even without server/PBX)
Highlights

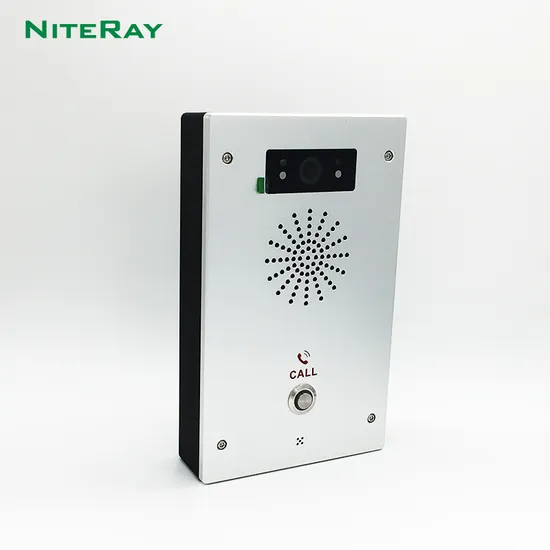

Video SIP door phone(Q514). HD video/audio, Infrared night vision with IR LED Relay to Connect to Door Lock , NO/NC Relay mode. Able to create Intercom with or without server/PBX. SIP Protocol, Easy to Deploy. Directly Call to Preset Telephone. Waterproof design(IP65). aluminum alloy metal box, anti-strike. Full Duplex Intercom. Auto Answer , Auto Hand Down Datasheet:
| Generic | Audio | |
| 2 SIP Lines | Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB | |
| Full-duplex handsfree(HF) | Wideband Codec: G.722 | |
| Intelligent DSS Keys (Speed Dial/intercom etc) | Full-duplex Acoustic Echo Canceller (AEC, 96ms tail-length | |
| Auto answer | Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ | |
| Intercom function | Background Noise Estimation (BNE) | |
| Industrial Standard: IP65&IK10, CE/FCC | Packet Loss Concealment (PLC) | |
| Dynamic Adaptive litter Buffer up to 300ms | ||
| Intercom Function | DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO | |
| Dynamic multicast function | ||
| Support ONVIF | Deployment & Maintenance | |
| Support customized DSS Keys | Auto-Provisioning | |
| Network Time Synchronization | Web Management Portal | |
| Action URL / Active URI | Web-based Packet Dump | |
| Configuration Import and Export | ||
| Video | Firmware Upgrade | |
| Sensor: 1/2.7" color CMOS | Syslog | |
| 2 Megapixels | ||
| Video codec: H.264 | Physical Specifications | |
| Resolution: main stream 1280×720@25fps | 1 DSS button (speed dial button) | |
| Substream 704×576(D1)@25fps | 1 RJ45 port | |
| Viewing angle: 112° (H), 84° (V) | 1 audio output interface | |
| Minimum illumination: 0.1Lux, support infrared illumination | 1 recording output interface | |
| 2 short circuit input interface | ||
| Networking | 2 relays: MAX DC30V/2A, AC125V/0.5A | |
| 10/100Mbps | Active switching output: 12V/500mA DC(only 1 relay support) | |
| IP Configuration: Static / DHCP / PPPoE | 2 indoor magnetic switch | |
| Network access authority authentication: 802.1x | 1 tamper alarm switch | |
| VPN: L2TP / OpenVPN | Power: DC12V/1A or PoE | |
| Housing material: aluminum alloy shell | ||
| Protocols | Protection level:IP65 and IK10 | |
| SIP2.0 over UDP/TCP/TLS | Installation: Wall-mounting | |
| RTP/RTCP/SRTP | Working temperature: -40 ~ 70°C | |
| STUN | Storage temperature: -40 ~ 70°C | |
| DHCP/LLDP/PPPoE/802.1x | Relative humidity: 10% - 90% | |
| L2TP /FTP/TFTP/HTTP/HTTPS/SNTP | Equipment Dimension: 195x120x34mm | |
| OpenVPN | Packing Dimension: 260x165x62mm | |
| TR-069 | Outer CTN Dimension: 348x328x280mm(10 PCS) | |
| Equipment weight: 1015g |
