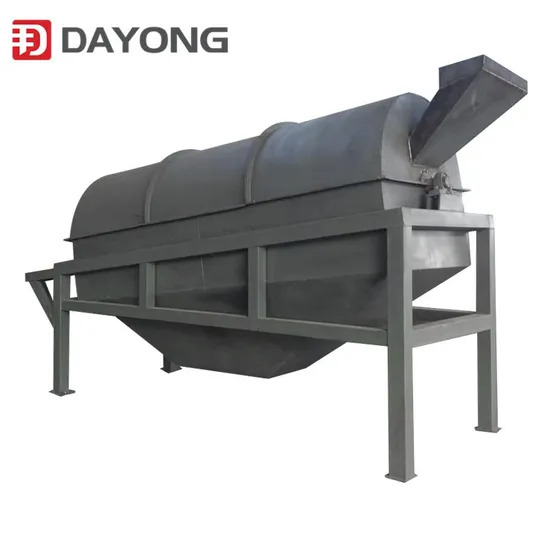

Environmental Protection River Sand Trommel Screen with Good Quality

Environmental Protection River Sand Trommel Screen with Good Quality

US$1,300.00-4,000.00 1 set (MOQ)

Basic Info.

Model NO.
DYT1050
Processing Object
Beans
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
1 Year
Name
River Sand Trommel Screen with Good Quality
Keyword
Trommel Screen
Power
2*4kw
Dimension
5000*1000mm
Mesh Size
as Your Required
Color
Customized
Function
Removing Impurities, Grading, Separation
Application
Sand, Mining, Mineral, Ore, Building Material
After-Sales Service Provided
Online Support, Video Technical Support
Transport Package
Standard Export Wooden Box
Specification
5000*1000mm
Trademark
DY
Origin
China
HS Code
8474100000
Production Capacity
50 Set/Sets Per Month Timely Delivery

Product Description

Product Introduction
Trommel screen as one kind of the earliest screening equipment still play an important role now ,The trommel screen also be called as other name in different country, for example, sometimes will also named it as roller sieve,drum screen,trommel separator and so on.
1. Trommel screen consist of motor,reducer,trommel device,rack,seal cover and inlet and outlet.
2. Heavy type trommel screen: motor,reducer with rubber wheel,or motor,reducer with 45# steel geared ring.
3. Lity-duty trommel screen: motor direct connect BWD reducer, with shaft design, multideck design.
Working Principle
Trommel screen is consisting of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes.
Different sizes of items picked up after falling into the funnel, then shipped by hand or gravity flow to the finished product.
Product Features
1. Mesh is not easy to clogging.
2. Smooth operation, low noise.
3. High machine reliability, less time investment.
4. Using a special screen, high efficiency, long service life.
5. Because of the cover sealing isolation, there is no dust, splash, pollution.
6. Small footprint, less maintenance, wearing parts only need to replace the shaft.
7. Large output, easy for process layout.
Using Scope
1. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3. Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
4. Cold mine: gold screening and washing.
5. Chemical industry: suitable for sifting compost.
6. Metallurgu, construction and other industries.
Product Parameters
Customer Site
Packing & Shipment
Our Company
Xinxiang Dayong Vibration Equipment Co., Ltd is one of the professional machinery manufacturers which specializes in the production of vibrating sieve machine, conveying equipment, crushing equipment and feeding equipment as well as relevant parts. The company has developed quickly and has been in cooperation with some domestic and international famous suppliers.
FAQ
Q: What information do I need to provide for getting an accurate quotation for linear
vibrating screen sieve?1. Material's name, bulk density, and water content2. Capacity you required___kg/h3. What's the purpose for our machine? Filtering, removing impurities or classification?4. How many layers do you need?5. The mesh size for each layer6. Voltage and frequency Q: How long for the delivery time?A: 5-10 working days for conventional products.Q: How long for warranty time?A: 18 months from the shipping date.Q: Can your engineer come to the construction site to guide the installation?
