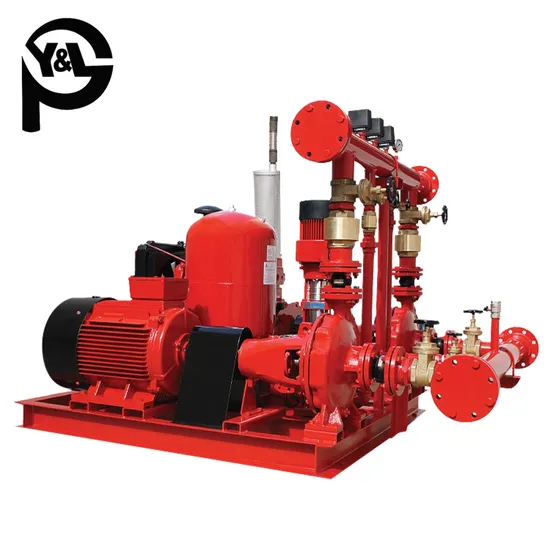

Edj Diesel Electric Fire Pump Jockey Pump with Control Panel Packing

Edj Diesel Electric Fire Pump Jockey Pump with Control Panel Packing

US$5,000.00-15,463.20 1 Piece (MOQ)

Basic Info.

Model NO.
TPOW80-220(I)
Max.Head
80-110m
Max.Capacity
>400 L/min
Driving Type
Diesel Engine/Electric Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal or Vertical
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump, Fire Pump
Pump Material
Cast Iron or Stainless Steel
Impeller Material
Cast Iron or Stainless Steel
Pump Spare Parts
Pump Casing ,Pump Cover,Impeller, Shaft etc.
Rotation Speed
1480/2950rpm
Seal Type
Mechanical Seal or Packing Seal
Shaft Material
Stainless Steel
Application
Fire Control Pump, Fire Fighting System
Coupling
Directly Coupling or Belt Coupling
Engine Type
Water Cooler Engine or Air Cooler Engine
Pump Accessories
Trailer, Silence-Box, Control Panel, Fuel Tank,etc
Transport Package
Standard Plywood Case
Specification
50GPM, 100GPM, ...750GPM, 1000GPM.
Trademark
Y&L(DEFU)
Origin
Shanghai, China
HS Code
8413709990
Production Capacity
500 Sets Per Month

Packaging & Delivery

Package Size
200.00cm * 165.00cm * 150.00cm
Package Gross Weight
1500.000kg

Product Description

EDJ Diesel Electric Fire Pump Jockey Pump with Control Panel Packing
Introdution
Fire pump system is made of Electric Pump + Diesel Engine Pump+Jockey Pump+Accessories
Operation: 1 Duty(electric pump ) + 1 stand by(diesel engine ) + 1 Jockey
Capacity: 100GPM, 150GPM, 200GPM, 300GPM, 400GPM, 500GPM, 750GPM, 1000GPM, 1250GPM...GPM with Pressure 4Bar, 5bar, 6Bar, 10Bar, 15Bar... Bar.
Application:Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
Working Conditions :Altitude ≤ 1000m; Ambient temperature: +5 °C ~ +40 °C; Relative humidity: <= 90%.
Features
1)Safe and reliable 2)Easy installation 3)Easy to operation 4)International standard
5)Use foreign advanced technology

EDJ Fire Fighting Pump System's Components
A brief introduction of EDJ Fire Pump System's components
Diesel Engine Fire Pump
Have the standard of National Fire Protection Association Standard NFPA20 "centrifugal fire pump installation" and other standards. The diesel engine fire pump is equipped with the characters of good and strong overload capacity, compact structure, easy to maintain and high degree of automation. Altitude ≤ 1000m; Ambient temperature: +5 °C ~ +40 °C; Relative humidity: ≤ 90%
Electric Fire Pump
Apply to fire protection system, pressurized water pipes, industrial and urban water supply and drainage, water pressure high-rise building, long-distancewater, heating, bathrooms, boilers and well-being of the water cycle, pressurized water and air-conditioning cooling systems and other equipment supporting occasions. Flow: 1~300L/s; Head: 0.15~1.6MPa; Power: 0.75~160/6P kW; Speed: 960~2900r/min; Working Pressure: ≤1.6MPa; Medium Temperature: ≤90°c; Material: HT200 (Bronze ally impeller)
Jockey Pump
The combination of advanced international and domestic technologies The design and manufacture of the self-priming vertical multistage centrifugal pump The adoption of standard vertical motor and fast loading type mechanical seal makes it convenient to change Apply to mild corrosive medium and substitute the foreign CR, CRN and similar products. High efficiency and energy saving and reliable quality Flow rate: 4.2-504 m3 / h; Head: 24-240 m; Power: 1.5-450 kw; Speed: 2900 r/min; Caliber: φ 40-phi 250; Temperature range: 0-+ 90 °C; Working pressure: more than 2.4 Mpa
Control Panel
Frequency conversion constant pressure control equipment: high efficiency and energy saving, perfect fault handling. Fire pump control equipment: high and low level industry, civil building fire, spray, water curtain and other pumps' control. Submersible sewage pump control equipment: automatically control and protect of submersible sewage pump. Air conditioning pump control equipment: control the pump in air condition system, bathhouse and swimming pools. And it's also suitable for startup and control of alternating dynamo.
Control System Function
Diesel engine water pump Auto start and stop,electricl water pump start and stop,jocky water pump start and stop,relative sensors and wires.

Configuration :
OPTIONS PICTURES FOR REFERENCE ( U CAN CHOOSE THE TYPE U PREFER)
1-EDJ Type (Electric Pump+Diesel Pump+Jokey Pump)
2-DJ Type (Diesel Pump+Jokey Pump)
3-EJ Type (Electric Pump+Jokey Pump)
4-EEJ Type (Electric Pump+Electric Pump+Jokey Pump)

FAQ:
1Q:How long is the deliver time?
A:For the order in stock, we will deliver goods at once against payment.
For the orders out of stock, the products time is 35 days for fire fighting pump set, the deliver time is base on the shipping date and your order by sea
2.Q:What about the package?
A:Standard Plywood Case
3.Q:How is the pump delivered to us?
A:For small order will be delivered by internation express, like DHL,TNT,FEDEX,UPS.
For large order, it will be delivered by air, sea, vehicle or multi- modal transport.
4.Q:How long is the warranty?
A:According to the internation standards, pump is standard operation is 1 year, 3 months for spare parts.
