Basic Info.
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer, Label Printer
Automatic Grade
Automatic
Printing Interface
USB2.0
Print Technology
Dod Piezoelectric Inkjet Kyocera Head
Print Resolution
600X600dpi
Number of Print Heads
4-6 Heads with 108mm
Ink Tank Volume
3L Per Color
Transport Package
Wooden Case
Specification
2010mm x 1240mm x 1850mm
Production Capacity
50 Set/Month
Product Description

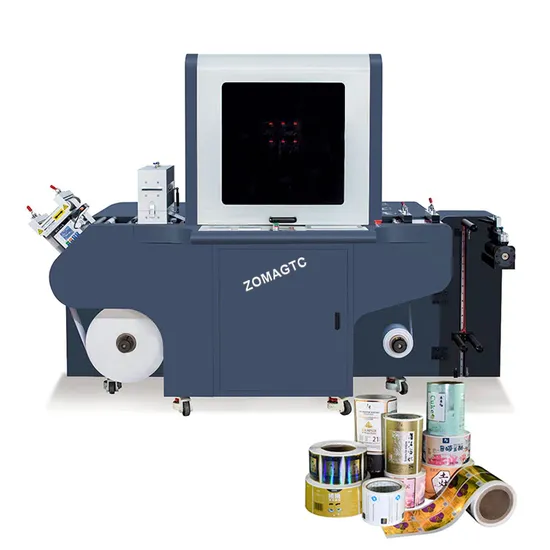

Automatic Digital CMYK Roll To Roll Sticker Label UV LED Label Printer Adhesive Label Printing Machine Product Description
Main Parameters of Automatic Digital CMYK Roll To Roll Sticker Label UV LED Label Printer Adhesive Label Printing Machine With Spot UV Varnish
Model | ZM-X108 |
Print Technology | DOD piezoelectric inkjet Kyocera Head |
Print Width | 108mm(4.25")/216(8.5") |
Ink | LED-UV curable ink |
Print Resolution | 600x600dpi/600x1200dpi |
Print Speed | Up to 50m/min(164ft/min) |
Number of Print Heads | 4-6 heads with 108mm Configuration 8-12 heads with 216mm Configuration |
Color | 6 ink channels; CMYK,White,Varnish,Spot Color |
Ink Tank Volume | 3L per color |
Connectivity | Fast Ethernet |
Software and User Interface | Lable Print control software PrintFactory Rip software |
Main Dimensions (W x D x H) | 2010mm x 1240mm x 1850mm(79.2" x 48.8" x 72.8") |
Unwinder/Rewinder | Roll-fed Width: Max.250mm(9.8") Roll Diameter: Max.500mm(19.7) Core Diameter: 76.2mm(3") |
Other Device | Rectification,Corona treatment,Web Cleaner,Antistatic treatment |
Pre-Curing | UV-LED(Air cooling) |
Final Curing | UV-LED(Water cooling) |
Media Width | Max. 230mm(9.1") |
Media Type | Coated and uncoated paper,self-adhesive label stock,aluminum foil,white and transparent films,PP,PE,PVC,PET,BOPP,etc. |
Media Thickness | 0.08-0.5mm(0.003-0.02") |
Working Environment | Temperature: 15-30°C(59-86F)Relative Humidity:40-60%(Recommended) |
Machine Weight | 1430(Kg) |
Power Supply | Two-phase 220V(50/60HZ.AC)60A |
Power | Printer: Max.4500W Corona Treatment: Max.2000W Water Cooler:1500W |
Air | 6-8bar,Clean and dry |
Auxiliary Devices | Air-pressure utilities such as compressor; Connection to exhaust duct |
Rewinder
utilizes a 76.2(3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system.
supporting rewind diameter up to 500mm(19.7").
Roll-back system double driver motor and accurate tension control system make sure the media can be roll back neatly.
Print position fine-tuning position of the print module can be adjust within full media region(230mm), it can be fine-tuning fromcontrol software but no need to adjust media.
Variable Date Printing machine support variable date printing, it specifically designed for industrial short-run narrow-format production.Integrated with advanced UV inkjet printing technology,it can be applied as lables,hangtags,tickets,RFID,foil packaging,etc.
Media Buffer module(Option) cooperate with other processing machine, such as detecting,cutter etc.
Varnish/Foil module( Option ) Varnish ink printing provides versatile surface finishes with amazing tactile and visual effects to beautify the appearance of labels and grasp viewers' attention.
