PP Spunbonded Non-Woven Fabric Production Line

PP Spunbonded Non-Woven Fabric Production Line

US$300,000.00-600,000.00 1 set (MOQ)

Basic Info.

Model NO.
1600MM/2400MM/3200MM
Automatic Grade
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
Installation and Commissioning
Voltage Supply
3p/380V/50Hz
Working Speed
200m/Min Depend on Non-Woven Density
Transport Package
Plywood Case and Naked Loading with Container
Specification
1600MM/2400MM/3200MM
Trademark
ZR
Origin
Made in China
HS Code
8449009000
Production Capacity
20 Lines Per Year

Product Description

PP Spunbonded Non-Woven Fabric Production Line
Model: 1600MM/2400MM/3200MM

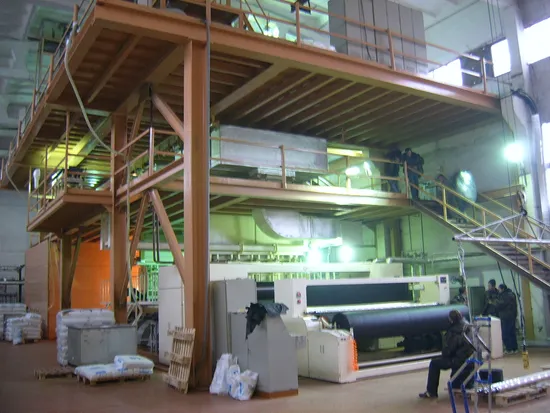

1. Machine and sample pictures:
2. General description:
PP spunbonded non-woven fabric production line directly use polypropylene as raw material into mesh by melt spinning, then makes it into fabric by strengthening with thermal bonding. It is suitable for medical sanitary material, agriculture fabric, furniture decoration and packing materials, etc.
3. Follow chart of production:
Raw material---- Melting extrusion---Filtering----Measuring---Spinning--Cooling-----stretching----Net making----Heating pressure---winding---slitting----final product
4. Characteristics of PP Spunbonded non-woven production line:
1)The whole line is well structured and easy to operate
2)The whole line is highly automated
3)Control elements are of well-know make, high performance and reliable technologies
4)The whole line are controlled by PLC and operated with touch-screen
5)The allocation of the main frame and auxiliary equipment can be Special designed and adjusted according to customers requirement
5. Services
1). Delivery:
We can assemble the line before delivery and invite you come to our factory to inspect the equipment as per your requirement if needed. When you accept the quality of the line, then we will arrange delivery.
2). Training and Installation:
When you receive the whole equipment, we will send 4-5 engineers to your factory for installation and testing. Meanwhile, we will train your workers how to operate the line and normal daily maintenance.
3). After-sales service
In the following year, if you have any problems of the production line, you can send e-mail to us to consult or invite our engineer for service at your site. We will send the professional engineers to help you to solve the problems timely.
B. Technical parameter specification
ITEM EFFECTIVE WIDTH GSM ANNUAL OUPUT
S 1600mm 10-200 1500T
S 2400mm 10-200 2400T
S 3200mm 10-200 3000T
SS 1600mm 10-200 2500T
SS 2400mm 10-200 3300T
SS 3200mm 10-200 5000T
