Low Cost Barite Crushing Machine PE Jaw Crusher for Gypsum Limestone Quartz Graphite Calcite Feldspar Fluorite Powder Factory in Malaysia

Low Cost Barite Crushing Machine PE Jaw Crusher for Gypsum Limestone Quartz Graphite Calcite Feldspar Fluorite Powder Factory in Malaysia

US$1,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PE
Type
Jaw Crusher
Application
Machinery & Hardware, Chemical, Construction, Mineral Industry, Stone Industry
Drive
Electromagnetic
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Ultra-Fine Mill
Finished Surface
Gear Process
Certification
CE, ISO, GOST, SONCAP, CCC
Condition
New
Color
as You Prefer
Coal Crusher Product Name
Small Mobile Coal Crusher Machines
Coal Crusher Product Model
PE,Pex
Coal Crusher Wear Parts
Roller
Coal Crusher Warranty
One Year
Coal Crusher Export Markets
Global
Coal Crusher Capacity
0.4-30t/H
Coal Crusher Place Origin
Made in China
Coal Crusher Product Type
Crusher Machine
Coal Crusher Applications
Stone, Rock, Mineral Ores
Transport Package
Moistureproof, Antirust, Seaworthy
Specification
CE&ISO&SGS
Trademark
CLIRIK
Origin
Shanghai, China
HS Code
853080000
Production Capacity
1000 Sets Per Year

Product Description

Product Overview

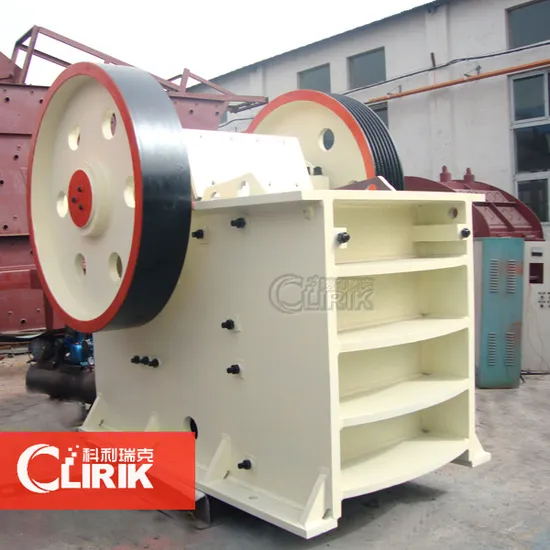

Small Mobile Coal Crusher Machines
1. The best crusher for breaking stone.
2. CE, ISO9001
3. Stone crusher from 1.7-765t/h.
4. Stable performance, long lifecycle of spare parts
5. Testing jaw crusher before delivery is available

Product Parameter of Small Mobile Coal Crusher Machines

Model
Specification
(mm)
Size (mm) Max Feed size
(mm)
Discharge Range
(mm)
Capacity
(t/h)
Speed
(r/min)
Motor Power
(kw)
Weight
(kg)
length Wildth
PE-150 150*250 250 150 125 15-45 1.7-5.6 285 5.5 1000
PE-200 200*300 300 200 180 20-50 3.5-13.5 285 11 1500
PE-250 250*400 400 250 210 20-60 5-22 300 15 2800
PE-400 400*600 600 400 340 40-80 18-60 275 30 7000
PE-500 500*750 750 500 425 50-100 43-102 275 55 13500
PE-600 600*900 900 600 500 65-180 51-145 250 75 19200
PE-750 750*1060 1060 750 630 80-180 122-223 250 110 29000
PE-900 900*-1200 1200 900 780 95-180 285-430 200 132 45000
PE-1000 1000*1200 1200 1000 850 195-280 320-470 200 132 51000
PE-1200 1200*1500 1500 1200 1020 150-300 425-765 180 160 100900
PEX-150 150*750 750 150 120 18-48 8.5-28 300 15 3500
PEX-250 250*750 750 250 210 25-60 22-60 300 22 5500
PEX-250 250*1000 100 250 210 25-60 25-65 300 30 7000
PEX-250 250*1200 1200 250 210 25-60 30-78 300 37 8200
PEX-300 300*1300 1300 300 250 20-90 45-110 288 75 12000

Application of Small Mobile Coal Crusher Machines
Jaw crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.
Working principle of Small Mobile Coal Crusher Machines
Small Mobile Coal Crusher Machines mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.

Advantages of Small Mobile Coal Crusher Machines
1. Widely used in metallurgy,mining, chemistry, cement, construction, refractory materials and ceramics.
2. CE, ISO9001
3. high capacity, 5-100t/h.

4. Uniform particle size
5. High crushing ratio
6. long lifecyle of spare parts
7. Testing jaw crusher before delivery is available
Other Products offered

Company Profile
Our Company
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.

Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
Our workshop
Our certificate
Our Exhibition
Customer visiting
FAQ
Inquiry service of jaw crusher
Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
