Reliable Stainless Steel Reactor for Optimal Petrochemical Manufacturing

Reliable Stainless Steel Reactor for Optimal Petrochemical Manufacturing

US$500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Stainless Steel Reactor
Type
Tubular Reactor
Material
Stainless Steel
Capacity
>1000L
Structure
Single Tube
Pressure
Atmospheric
Agitator Model
Paddle Agitator
Tower Reactor Type
Bubble Tower Reactor
Heating
Electric Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Chamber Cover up
Retrorse Stirring ,Slow
Clockwise Stirring,Sideways
High-Speed Micronization
Complete Function
Conformity with Fmp Standard
International Advanced Technology
Customized
Transport Package
Woodern Box Package
Specification
GMP ISO9001
Trademark
Li&Li
Origin
China
HS Code
8501320000
Production Capacity
50/Month

Packaging & Delivery

Package Size
1000.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
850.000kg

Product Description

Key word
reactor tank
stainless steel tank
mixing tank
Reactor is widely used in industries such as petroleum, chemical industry, paint & printing ink, pharmacy, food etc.
Reactor is used as pressure container for vulcanization, nitration, hydrogenation, alkylation, polymerization, consendation processing such as reaction kettle, polymerization kettle, reator, decomposition vessels etc...
It normally adopts carbon steel (or mild steel), stainless steel (SUS304, SUS321, SUS316L), as well as other compound materials.
The reactor can be divided into Reactor with open flat cover, Reactor with open butt welded flange and closed Reactor. Each kind has its own wide application range and merits.

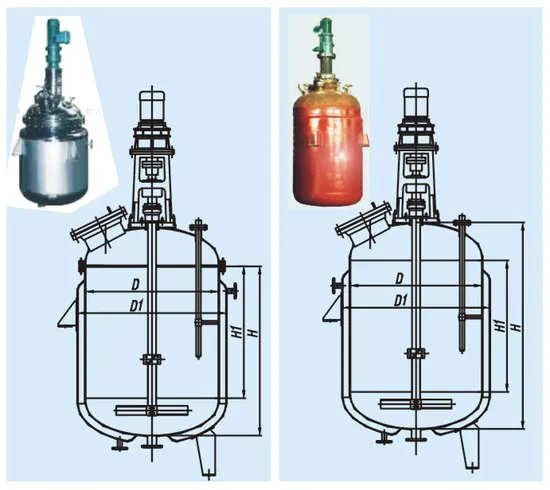

Reactor consists of components such as body, cover, jacket, agitator, driving device, shaft sealing device, support etc...Various seals (packing seal, mechanical seal, magnetic seal), heating&cooling methods (jacket or limpet coil) and mixing types are optional according to different requirements of mixing processing.
Technical parameter
Model Capacity Electric power(KW) Jacket capacity Diameter inner pot φ(mm) Outside the pot diameter R(mm) Total power(kw) Stirring speed(r/min)
FE50 50L 3χ2 95 400 600 1.1 50-80
FE100 100L 6×2 120 500 700 1.1-1.5 50-80
FE200 200L 6×3 200 600 800 1.1-2.2 50-80
FE300 300L 6×3 250 700 900 1.5-3 50-80
FE500 500L 9×3 290 900 1100 2.2-4 50-80
FE1000 1000L 9×4 560 1200 1400 3-5.5 50-80
FE2000 2000L 12×4 750 1300 1500 5.5-7.5 50-80
FE3000 3000L 15×5 1015 1500 1700 5.5-11 50-80
FE4000 4000L 15×5 1226 1600 1800 11-15 50-80
FE5000 5000L 18×5 1400 1800 2000 11-15 50-80

Broadly understood reactor, i.e. there is a physical or chemical reaction vessel of stainless steel.Stirring allows two or more different materials dispersed among each other to each other, so as to achieve uniform mixing; also can accelerate heat and mass transfer processes.In industrial production, most of the stirring operation is mechanical stirring. Mixing equipment consists of a stirring device, shaft seals and mixing tanks three major components.Stainless steel reactor is widely used in petroleum, chemical, rubber, pesticides, dyes, medicines, food and other production-oriented user andResearch projects of various scientific experiments, for complete hydrolysis, neutralization, crystallization, distillation, evaporation, storage,alkylation,Polymerization, condensation, heating container mixed, heated reaction the process.We can give you affordable stirred tank reactor.All products have to go through five checks in the whole process.We believe that the quality is the soul of an enterprise.
About our company
Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
