Basic Info.
Automatic Grade
Automatic
Product Name
Aluminum Profile 4 Axis CNC Machining Centre
Transport Package
Plywood Case
Production Capacity
10sets/Month
Product Description

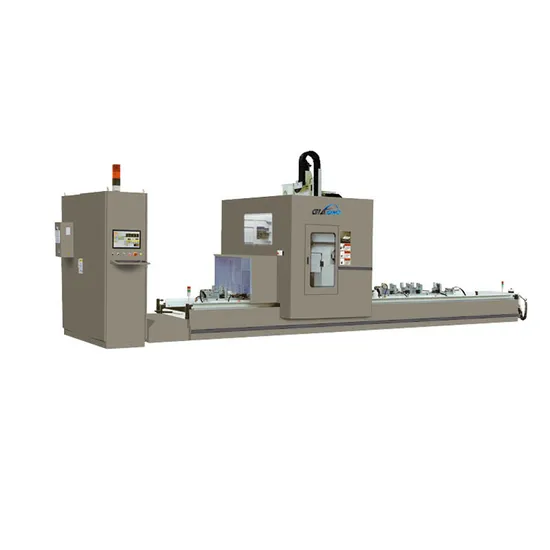

Aluminum CNC Machining Centre machine 4 Axis for Curtain Wall
Equipment Features for Aluminum CNC Machining Centre machine 4 Axis for Curtain Wall
Glasino 4 axis CNC high-speed drilling and milling centre is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole-shaped hole, tapping and end milling.
----Using the German PA/Syntec control system, the intelligent CNC system and the simple and intuitive human-computer interface make the operation more convenient and quick.
----Inside blades storage can hold 8-16 sets blade.
----It Adopts a high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
Details of Aluminum CNC Machining Centre machine 4 Axis for Curtain Wall:
The semi-closed guard improved security greatly
Working samples of Aluminum CNC Machining Centre machine 4 Axis for Curtain Wall
Technical Parameter
X- axis
| 7600mm
|
Y- axis
| 960mm
|
Z- axis
| 610mm
|
X- axis speed
| 0~90m/min
|
Y- axis speed
| 0~80m/min
|
Z- axis speed
| 0~75m/min
|
Main shaft rotary range
| - 90º ~ 0º ~ + 90º HSD spindle,from ITALY
|
Tool magazine
| 6 different cutters, automatic change by program
|
Max cutter length
| 165mm
|
Number of clamping device
| 8
|
Processing size range(WXHXL)
| 550×300×7300mm
|
Overall dimension
| 10100×2300×2600mm
|
Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.
